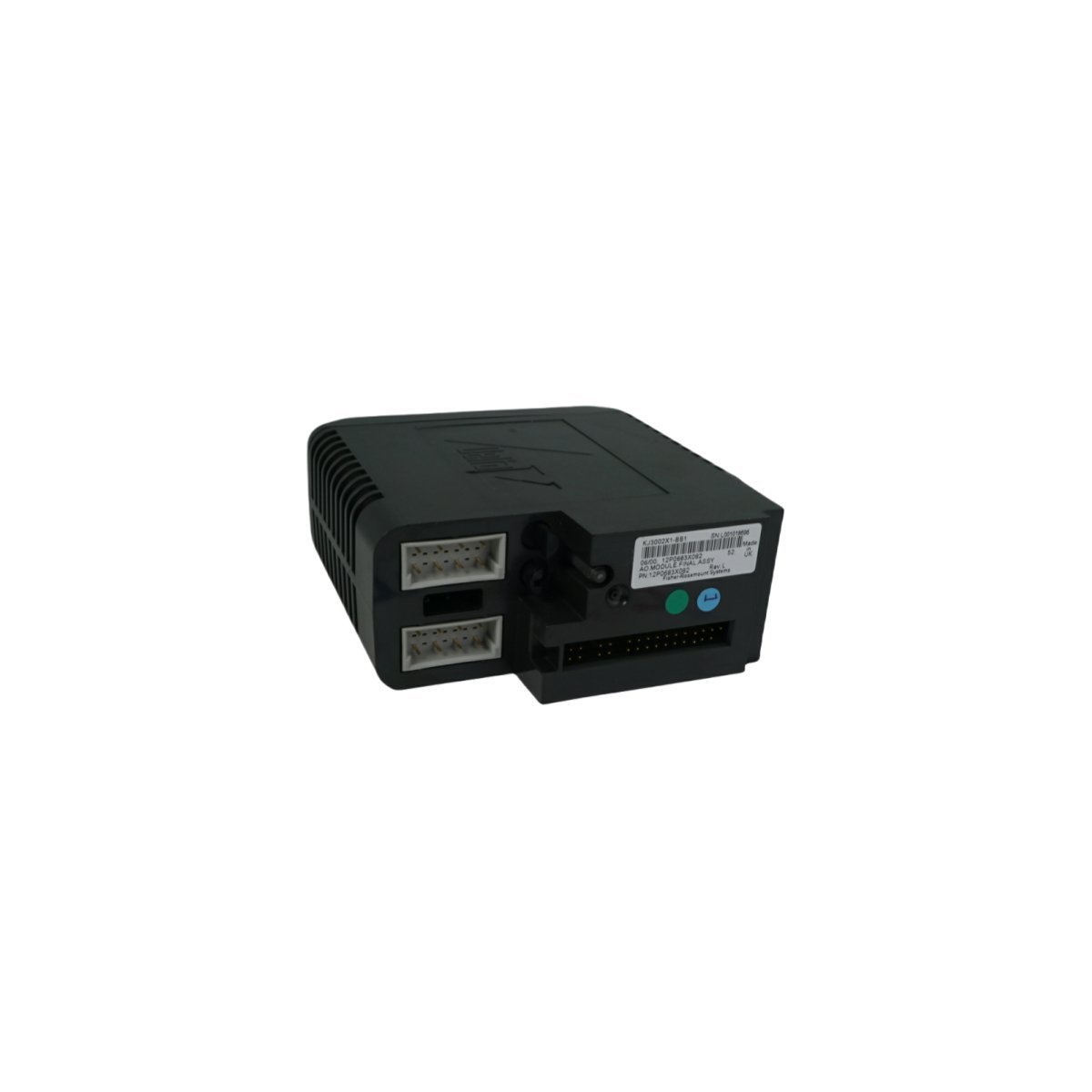

The Emerson KJ3002X1-BB1 12P0683X082 is an 8-channel 4-20mA analog output module for DeltaV systems. It provides 16-bit high-precision control for valves and actuators in harsh environments.
The Emerson KJ3002X1-BB1 12P0683X082 functions as a core component within the DeltaV M-series I/O subsystem. This 8-channel module converts digital controller data into precise analog signals. It primarily manages field instruments like control valves and variable speed drives. Furthermore, the unit supports standard 4-20mA current loops for universal industrial compatibility. The high-resolution 16-bit output ensures extremely fine control over process variables. Consequently, it maintains superior accuracy for critical automation tasks.
This DeltaV module features comprehensive galvanic isolation to prevent electrical interference. This design effectively shields the controller from field-side voltage spikes or noise. Additionally, the unit delivers a rapid update rate of 100 samples per second. Such speed allows for instantaneous response in high-dynamic control loops. Because the module utilizes a compact form factor, it optimizes cabinet space. Reliability remains a priority with its robust internal circuitry and heat dissipation.
Emerson engineered the KJ3002X1-BB1 to perform in demanding plant conditions. It operates efficiently across a broad temperature range from -40°C to +70°C. Moreover, the module handles high humidity levels without compromising signal integrity. This environmental tolerance makes it suitable for remote or non-climate-controlled installations. The unit also supports hot-swapping during active system operation. Therefore, maintenance teams can replace modules without interrupting the overall process.
| Specification | Technical Data |
| Model Number | KJ3002X1-BB1 |
| Part Number | 12P0683X082 |
| Manufacturer | Emerson (DeltaV Series) |
| Output Type | 8-Channel Analog (4-20mA) |
| Resolution | 16-bit |
| Accuracy | ±0.1% of span |
| Weight | 0.2 kg |
| Operating Temp | -40°C to +70°C |
| Parameter | Specification |
|---|---|
| Model / Catalog No. | KJ2221X1-BA1 |
| Alternative Part Numbers | 12P3232X112 / VS6002 |
| Manufacturer | EMERSON (DeltaV Product Line) |
| Origin | USA |
| Weight | 0.32 kg |
| Dimensions | 4.1 x 12.5 x 19.0 cm |
| Module Type | SISNet Repeater Module / Network Extender |
| System Platform | DeltaV SIS Process Safety System (DCS) |
| Discontinued Date | December 31, 2018 (Legacy status) |
The Emerson DeltaV™ M-series KJ3002X1-BB1 (12P0683X092 / VE3006) is a legacy, high-precision thermocouple and mixed-signal I/O module designed for flexible process control within the DeltaV Distributed Control System (DCS). Capable of reading continuous analog variables alongside discrete status indicators, this modular card features built-in galvanic signal isolation, advanced thermocouple loop-burnout diagnostics, and high-density noise protection. Engineered for direct hot-swappable installation into M-series carriers, it delivers stable, industrial-grade data acquisition for critical temperature, flow, and pressure monitoring loops across harsh, high-interference manufacturing environments.
The Emerson DeltaV SIS™ KJ3001X1-BH1 (12P0558X152) is a legacy, high-performance isolated I/O interface card engineered for critical process safety and Distributed Control Systems (DCS). Providing robust electrical isolation to prevent ground loops and voltage spikes, this module features a field circuit rating of 60 VDC at 1 A per channel, a LocalBus power draw of 150 mA at 12 VDC, and a specialized B5 mechanical terminal block keying system to prevent incorrect field installation. Built to withstand punishing industrial conditions, its IP20-rated assembly is certified to ISA-S71.04-1985 Class G3 corrosion resistance standards, ensuring stable, interference-free safety loop communication in harsh, highly corrosive processing environments.
