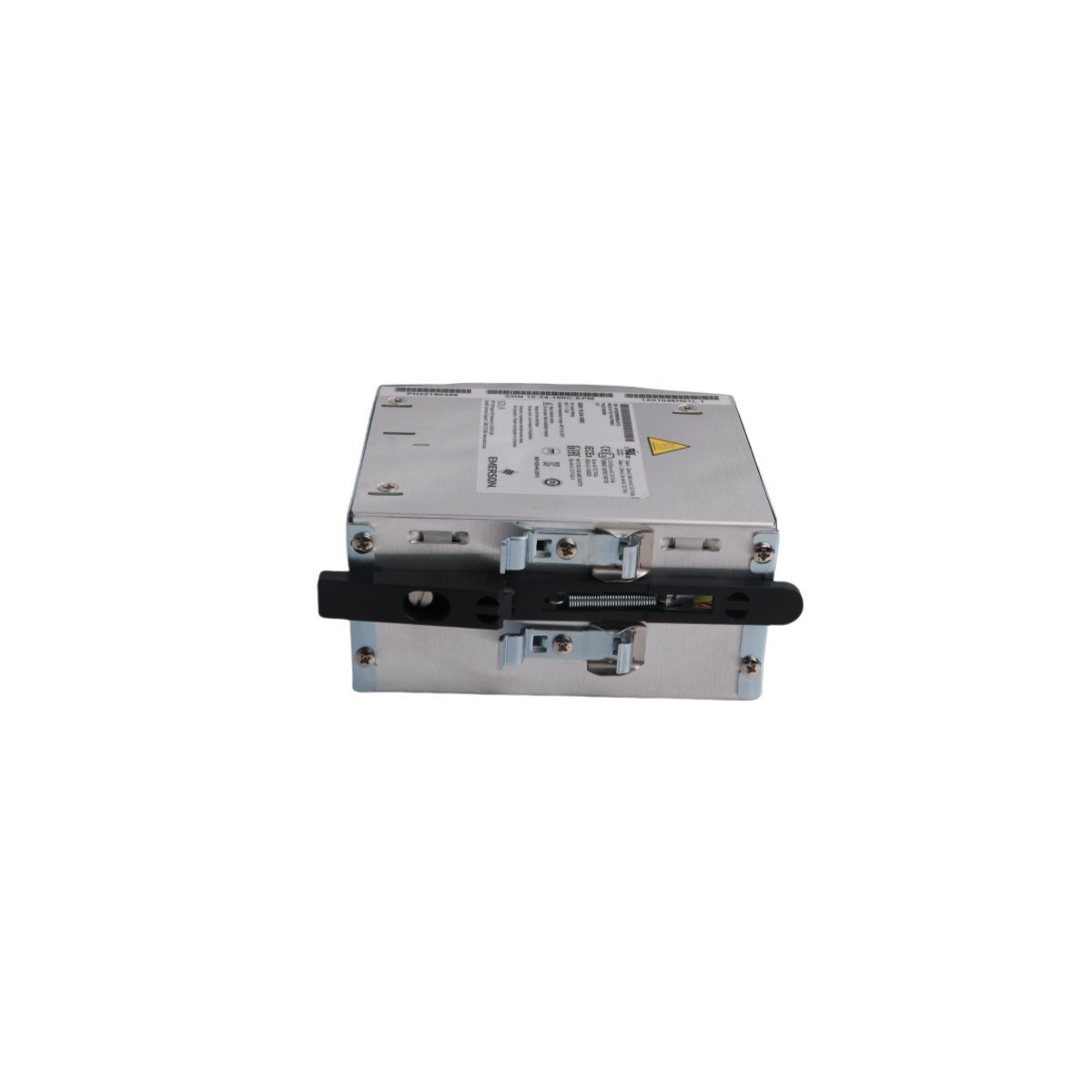

EMERSON 1X01046H01L DeltaV Bulk Power Supply Module

Emerson 1X01046H01L Ovation/DeltaV safety platform bulk power supply module. Factory-new hardware optimized for critical process automation infrastructure.

The EMERSON 1X01046H01L, operating within the DeltaV SIS™ process safety system and Ovation distributed control platforms, functions as a highly reliable DeltaV Bulk Power supply module. Engineered for process automation architectures, this hardware converts raw facilities line power into conditioned, low-voltage DC power paths required to run critical safety instrumented systems (SIS) controllers, I/O carriers, and field devices.

Hardware Specifications

Parameter	Specification
Model	1X01046H01L
Brand	EMERSON (DeltaV / Ovation Series)
Origin	USA
Weight	0.9 kg
Dimensions	6.0 x 12.5 x 6.3 cm
Module Type	Bulk Power Supply Module
System Application	DCS / DeltaV SIS Process Safety
Redundancy Support	Dual-diode auctioning compatible
HS CODE	8537101190
Minimum Order Quantity	1

Process Control & DCS Instrument Integration

The 1X01046H01L power supply integrates directly into Emerson’s high-density carrier backplanes. To fulfill strict Process Safety System requirements, the module utilizes advanced internal diagnostic monitoring loops that continuously track output voltage stability, thermal parameters, and component health status metrics.

When deployed in redundant pairs, the hardware supports active load sharing and seamless, glitch-free failover execution. If an upstream power line drop or internal component anomaly occurs, the parallel module instantly compensates for the total current demand without dropping the system voltage below the logic threshold. Real-time diagnostic alerts are piped back natively through the controller bus to engineering workstations, minimizing system troubleshooting overhead.

Frequently Asked Questions

Q: Why do some datasheets associate this part number with both DeltaV and Ovation architectures?

A: Emerson utilizes standardized power conversion topologies across multiple Distributed Control System (DCS) lines. The 1X01046H01L sub-assembly serves as a cross-platform power solution qualified for both DeltaV SIS and Ovation controller form factors.

Q: Does this module require an external diode auctioning block for redundant power pairing?

A: No. The circuit structure includes integrated auctioning diodes on its output rails, allowing multiple units to be wired directly in parallel on a shared power carrier for automated $N+1$ or $1+1$ redundancy configurations.

Q: What action should be taken if the hardware status register flags a thermal warning?

A: A thermal warning indicates restricted cabinet airflow or excessive ambient enclosure heat. Verify the air filter conditions and check that the physical installation clear boundaries have not been obstructed.

Field Installation Guidelines

Carrier Alignment: Align the rear interface connectors carefully with the backplane slot guides before pushing the module home. Uneven force can bend the heavy-gauge power pins.
Grounding Requirements: Secure the mounting carrier frame directly to a low-impedance instrument ground bus. Proper grounding is essential to filter out high-frequency switching ripple and external EMI.
Ventilation Boundaries: Maintain at least 50 mm of unobstructed vertical clearance above and below the power module rack to prevent thermal stagnation.
Hot-Swapping Protocol: While this module supports live-swapping under powered conditions, ensure that the companion redundant supply is online and showing a healthy status LED before pulling the active unit.
