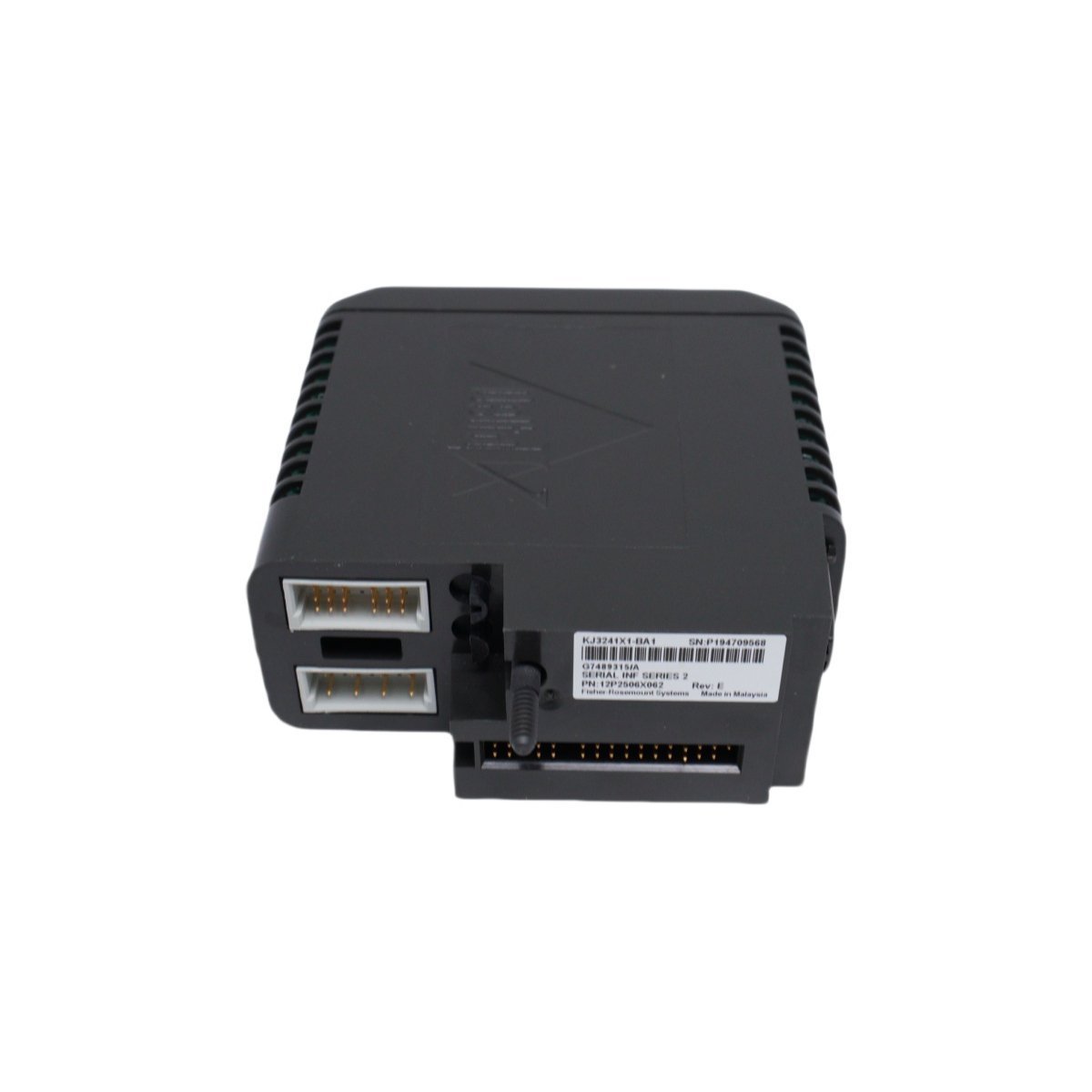

EMERSON KJ3241X1-BA2 DeltaV SIS Serial Interface Card

The EMERSON KJ3241X1-BA2 is an M-Series Series 2 Plus PROFIBUS DP Serial Interface Card for DeltaV systems. Brand New and Original Stock available for Global Shipping.

The EMERSON KJ3241X1-BA2 serves as the primary KJ3241X1-BA2 Serial Interface Card utilized to execute PROFIBUS DP data exchange across DeltaV SIS platforms. The hardware establishes physical and electrical line conditioning for multi-drop serial topologies, functioning as a dedicated communications link on the local I/O subsystem backplane. It manages protocol encapsulation, parity verification, and frame timing directly at the hardware layer to isolate the host controller from external industrial network bus traffic.

Hardware Specifications

Parameter	Specification
Model	KJ3241X1-BA2
Brand	EMERSON
Origin	USA
Weight	0.4 kg
Dimensions	4.3 x 12.5 x 18.5 cm
Operating Temp	-40 to +70 deg C
Power Consumption	12 VDC nominal at 300 mA
Module Type	Serial Interface Card
Product Range	DeltaV SIS / M-Series (Series 2 Plus)
System Classification	DCS / Safety Instrumented Systems (SIS)
Protocol Support	PROFIBUS DP
Mechanical Shock Protection	10 g shock pulses
Vibration Limits	1 mm peak-to-peak amplitude (0.7 g sustained)
Environmental Protection	ISA-S71.04 Class G3 Airborne Contaminants
Mechanical Keying Code	D4 Terminal Block Keying Position

High Reliability Safety Control

The EMERSON KJ3241X1-BA2 functions within a high-reliability process architecture, executing galvanic isolation between the field communication lines and the internal logical backplane components. This physical barrier prevents field-side overvoltage faults or transient electrical noise from compromising adjacent safety instrumented modules. The hardware enforces a strict fail-safe state execution, monitoring the status of the serial bus line configuration continuously. If a communication link loss occurs or an invalid parity sequence is detected across the PROFIBUS network, the card transitions its active communication registers to safe data vectors, prompting immediate diagnostic alerts on the primary safety controller.

Frequently Asked Questions

Q: What are the structural constraints when utilizing hot-swap actions with this module?

A: Hot-swapping the card is permissible only within non-hazardous environments. If the system is located within a classified hazardous area, upstream power dissipation must be performed, or the atmosphere must be verified as non-ignitable prior to extraction or insertion.

Q: How does the mechanical keying feature prevent structural hardware damage?

A: The module relies on a specific D4 mechanical rotary keying lock that interlocks with the corresponding terminal block slot. This physical restriction prevents the insertion of an incorrect I/O card type into a live terminal grid, eliminating cross-voltage mismatches.

Q: Does this interface card contain onboard line termination resistors?

A: No, internal bus line termination is not integrated. External standard PROFIBUS DP network connectors with selectable termination resistors must be used at the physical end nodes of the serial segment.

Field Installation Guidelines

Shielding Ground Connection: Secure the PROFIBUS DP cable shield using the grounding clamp on the DeltaV carrier chassis. Do not multi-point ground the communication cable line if potential differences exist between distinct field distribution panels.
Environmental Contaminant Control: Maintain the enclosure sealing profile to meet the ISA-S71.04 G3 rating. Ensure that the humidity limits do not exceed 95% non-condensing to prevent copper track oxidation.
Carrier Seating Alignment: Position the module carefully above the carrier slot, verify that the D4 keying dials align properly, and press firmly until the mechanical extraction latches fully engage the chassis rails.
Terminal Wiring Constraints: Maintain separation between the low-voltage 12 VDC internal power feeds and any high-voltage external digital control loops sharing the same containment trunking.
