EMERSON KJ2201X1-JA1 DeltaV SIS process safety system

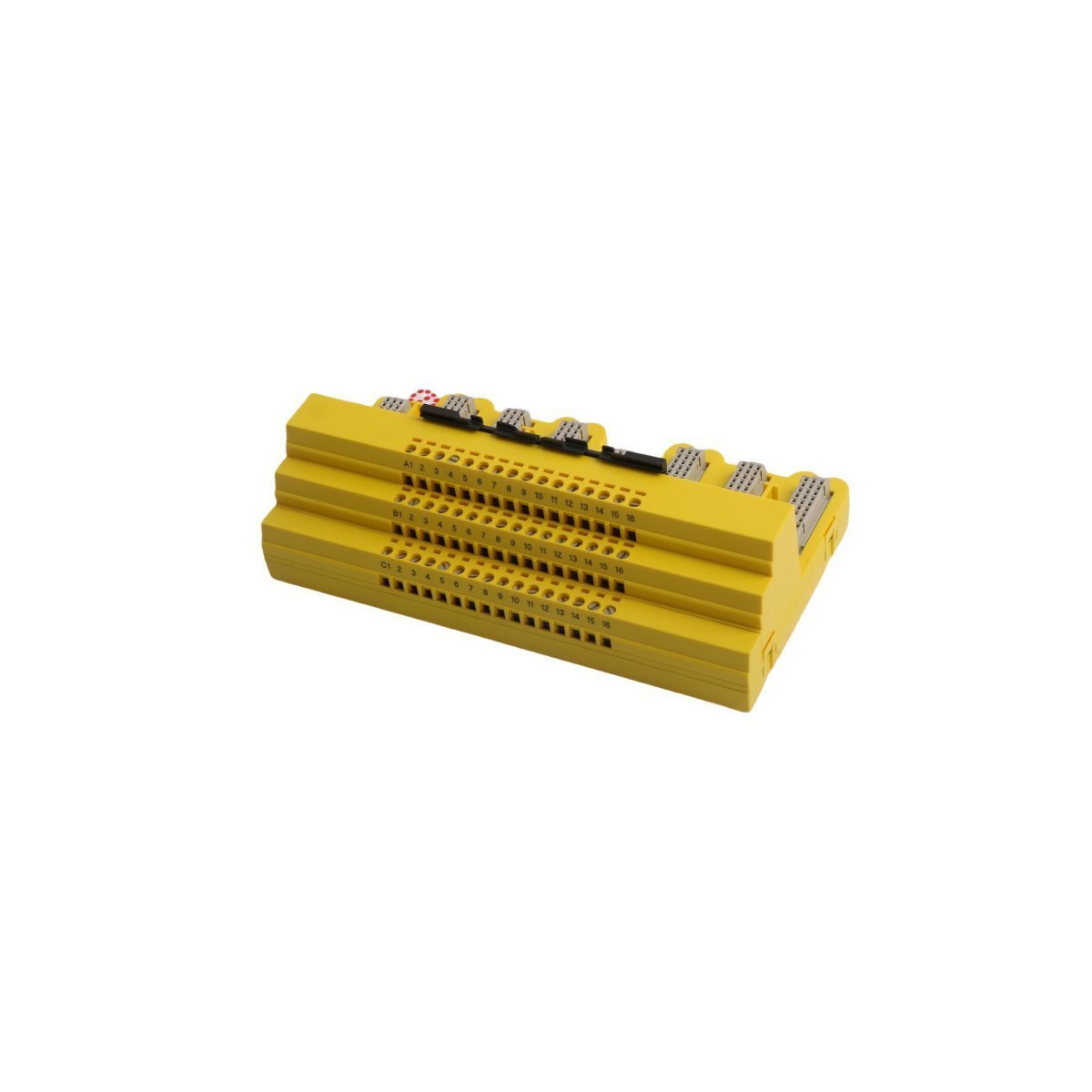

The EMERSON KJ2201X1-JA1, also cataloged as the KJ2201X1-JA1 Terminal Block, serves as the primary KJ2201X1-JA1 Redundant Terminal Block utilized to execute physical field terminations across DeltaV SIS™ process safety system platforms. It functions as a high-integrity connection interface mapping critical dual-path safety loops directly to active logic solvers without signal degeneration.

Hardware Specifications

Process Control & DCS Instrumentation

The instrument is built around high-density channel-to-channel isolation parameters to isolate parallel processing nodes from electrical faults or sudden ground potential shifts. It features embedded cold junction compensation (CJC) reference traces on specified pins to accommodate raw thermocouple routing when deployed alongside temperature safety logic solvers. The copper-alloy bus structure supports continuous 4-20 mA HART loop protocol passes, allowing digital instrumentation diagnostics to stream unimpeded into the safety voting framework.

Frequently Asked Questions

Q: How does the KJ2201X1-JA1 accommodate a redundant logic solver pair?

A: The physical design incorporates independent internal routing traces that branch each field input terminal to two separate slot interfaces on the I/O base. This enables parallel signal presentation to both primary and standby safety logic modules simultaneously.

Q: Is it permissible to disconnect field loops from this module while active?

A: While the block itself contains no active microprocessors, breaking field loops associated with an active safety instrumented system (SIS) can trigger an automatic fail-safe state execution or partial process trip. Proper override interlocks must be engaged prior to wiring changes.

Field Installation Guidelines

1. Align the rear slots of the KJ2201X1-JA1 terminal block over the dual-position matching connectors of the assigned redundant safety carrier.
2. Press the assembly inward until the structural retention clips click into place, providing a uniform mechanical load against the backplane connection interface.
3. Fasten the integrated grounding lug to the local safety instrument earth (SIE) copper strip using a low-impedance conductor.
4. Insert field loops into screw-clamp terminations, observing polarity for 4-20 mA active transmitters or dry contact inputs.
5. Tie down the incoming wiring bundles to the cable management tray to prevent mechanical tension from fatiguing the screw terminals under heavy plant vibration.
