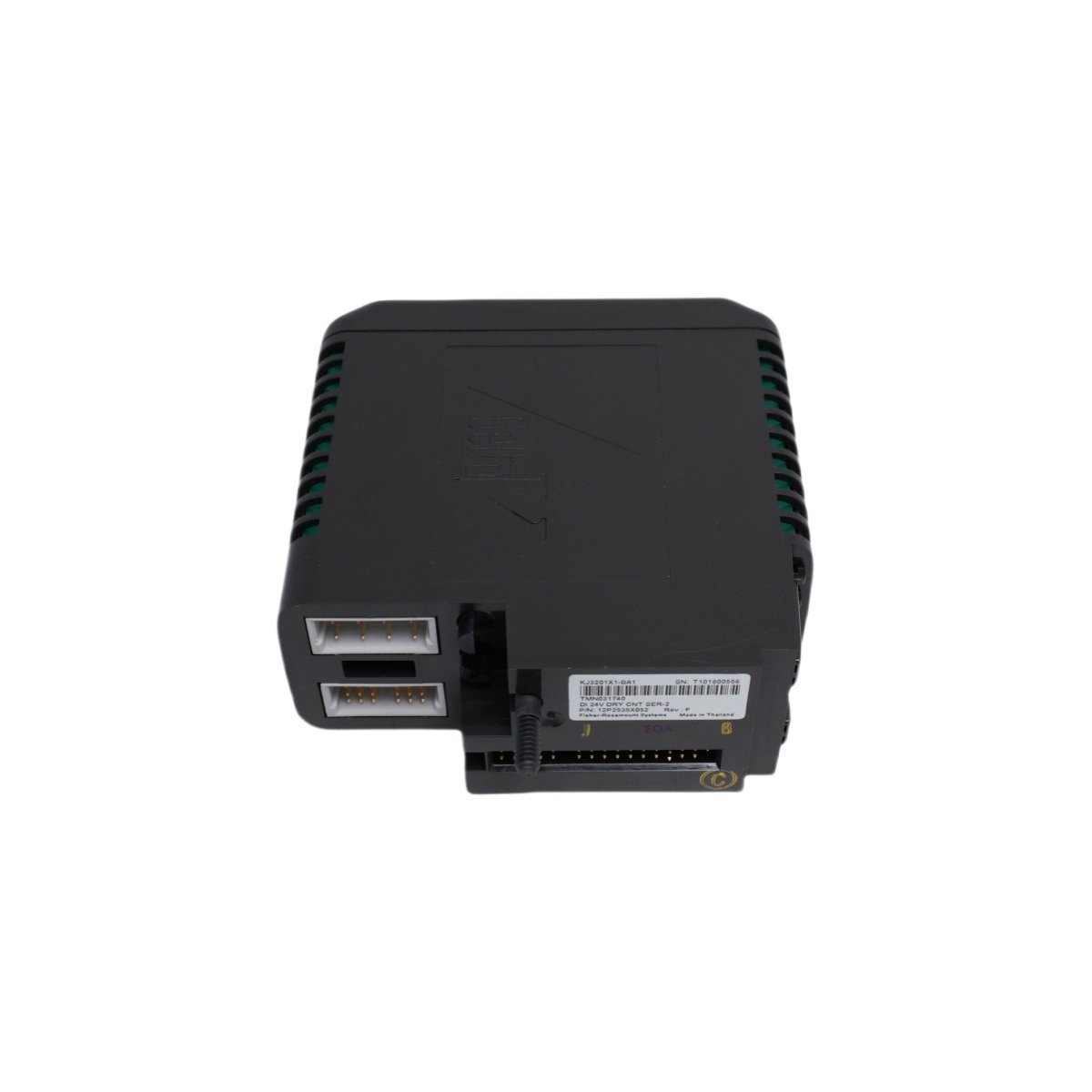

The Emerson KJ3201X1-BA3 is a Series 2 24V DC Digital Input Card for DeltaV systems. It features 16 channels, G3 environmental protection, and a wide temperature range. This 0.4kg module provides reliable dry contact signal monitoring for critical industrial automation.
The Emerson KJ3201X1-BA3 is a Series 2 Digital Input Card specifically engineered for the DeltaV Distributed Control System. This module processes discrete signals from field equipment into the control network. It provides 16 channels of isolated digital inputs for high-density automation tasks. The hardware supports 24V DC dry contact signals. It serves as a vital bridge between field sensors and the central logic solver. Reliable data transmission ensures the safety and efficiency of industrial processes.
Emerson designed this module to thrive in extreme industrial conditions. The hardware complies with ISA-S71.04 G3 standards for airborne contaminants. Consequently, it resists corrosion in harsh chemical or coastal environments. It tolerates humidity levels up to 95% without condensation. Furthermore, the unit withstands continuous vibration and mechanical shocks. This durability makes it a preferred choice for offshore platforms and power plants.
This module connects directly to the DeltaV local bus for rapid installation. Integrated LED indicators provide immediate status updates for each input channel. Therefore, maintenance teams can identify field wiring faults very quickly. The internal circuitry filters out electromagnetic interference to prevent signal noise. Moreover, the card supports hot-swapping during active system operations. This feature allows for repairs without stopping the entire process.
| Component | Specification |
| Manufacturer | Emerson |
| Model Number | KJ3201X1-BA3 |
| Input Type | 24V DC Digital (Dry Contact) |
| Local Bus Power | 12V DC at 150mA |
| Field Circuit Power | 24V DC at 100mA |
| Channel Load | 5mA per channel |
| Operating Temp | -40°C to +70°C |
| Shock Resistance | 10g half-sine duration |
| Weight | 0.4 kg |
The Emerson DeltaV SIS™ KJ3001X1-BH1 (12P0558X152) is a legacy, high-performance isolated I/O interface card engineered for critical process safety and Distributed Control Systems (DCS). Providing robust electrical isolation to prevent ground loops and voltage spikes, this module features a field circuit rating of 60 VDC at 1 A per channel, a LocalBus power draw of 150 mA at 12 VDC, and a specialized B5 mechanical terminal block keying system to prevent incorrect field installation. Built to withstand punishing industrial conditions, its IP20-rated assembly is certified to ISA-S71.04-1985 Class G3 corrosion resistance standards, ensuring stable, interference-free safety loop communication in harsh, highly corrosive processing environments.
