SKU: KJ3001X1-BG1 12P0557X122 VE4002S1T1B1 Digital Output Isolated

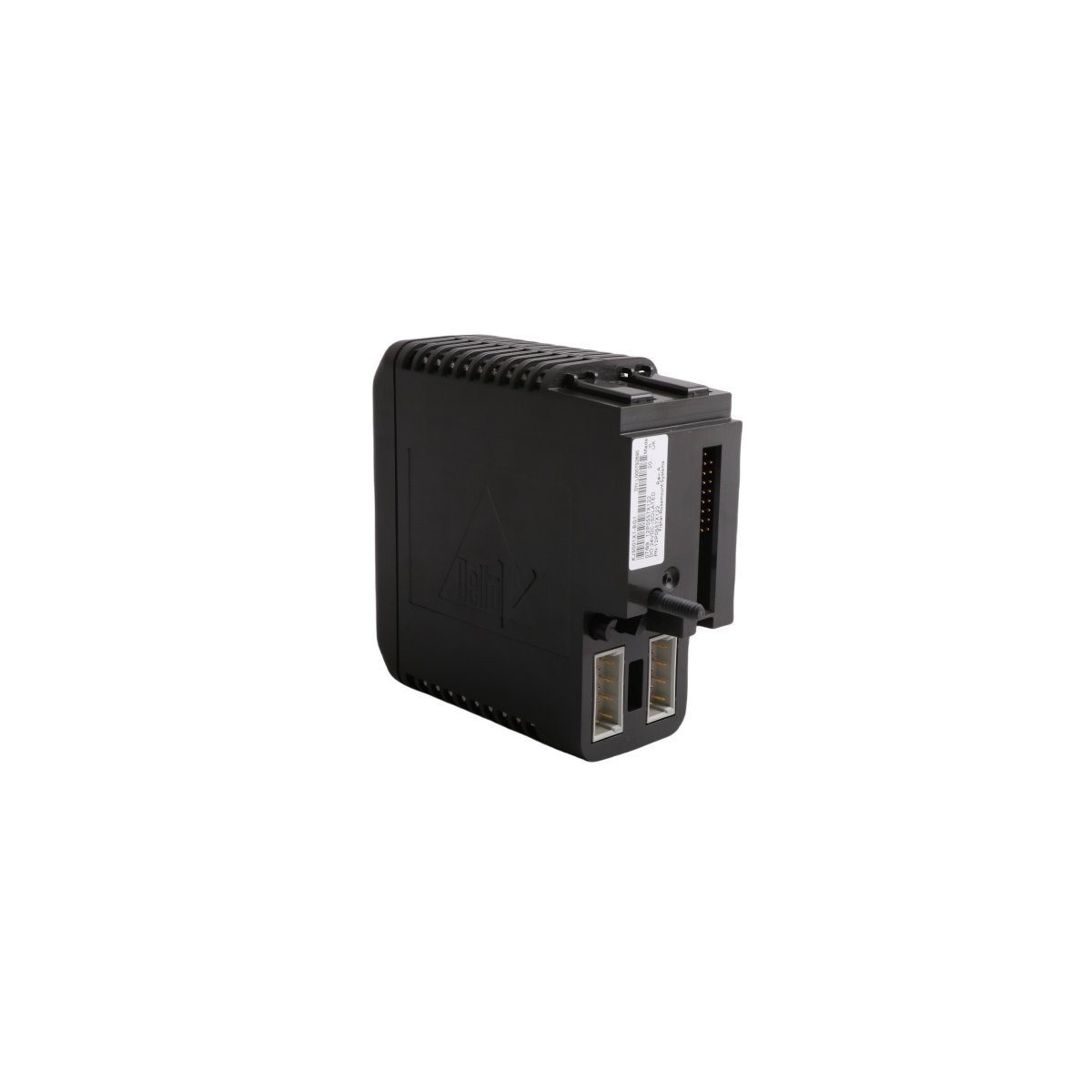

EMERSON KJ3001X1-BG1 DeltaV SIS

Factory original EMERSON KJ3001X1-BG1 digital output isolated module. Brand new surplus in stock with global shipping for DeltaV SIS industrial automation systems.

Configured for specific technical tasks in DeltaV SIS process safety system networks, the EMERSON KJ3001X1-BG1, cataloged as the KJ3001X1-BG1 Digital Output Isolated Module, provides direct physical/electrical execution. The hardware operates as a dedicated discrete control component executing binary field device switching actions via galvanic isolation pathways. It operates within safety instrumented functions to command final control elements while preventing stray electrical faults from propagating back to the logic solver backplane.

Hardware Specifications

Parameter	Specification
Model	KJ3001X1-BG1 12P0557X122 VE4002S1T1B1
Brand	EMERSON
Origin	USA
Weight	0.2 kg
Dimensions	4.1 x 12.5 x 10.5 cm
Operating Temp	0 to 60 deg C
Power Consumption	24 VDC at 150 mA nominal
Module Type	Digital Output Isolated
System	DCS / SIS (DeltaV SIS)
HS Code	8537101190
Minimum Order Quantity	1

Safety Instrumented Systems (SIS) & Galvanic Isolation

The hardware architecture utilizes localized galvanic isolation barriers across all discrete output channels to maintain high availability and predictable fault states. Built to conform to SIL3 certification boundaries within the DeltaV SIS infrastructure, the module executes a fail-safe state execution whenever internal self-diagnostics detect critical loop degradation or a loss of backplane bus communication velocity. Channel-to-channel physical isolation eliminates potential ground loops and common-mode electrical noise interference, maintaining discrete signal integrity between the logic solver circuitry and inductive field actuators.

Frequently Asked Questions

Q: Does the module support online hot-swap procedures during active safety system execution?

A: Yes, the hardware permits hot-swapping under powered conditions when inserted into a compatible DeltaV local instrument carrier. The physical insertion or removal does not disturb adjacent I/O operations or cause transient voltage spikes on the backplane bus.

Q: How does the module handle inductive load flyback voltages when field relays drop out?

A: The module contains integrated transient voltage suppression diodes across each isolated digital output circuit to clamp high-voltage inductive spikes, protecting the solid-state switching elements from premature thermal breakdown.

Field Installation Guidelines

Carrier Mounting Orientation: Ensure the local instrument carrier is mounted horizontally on standard 35 mm DIN rails to optimize natural convective thermal dissipation profiles across the module housing.
Field Wiring Termination: Use 12 AWG to 22 AWG shielded twisted-pair cables for all discrete output loops. Strip field insulation back exactly 6 mm before tightening terminal block compression screws to prevent exposed conductor shorts.
Shield Grounding Matrix: Terminate all field cable shields at a single, dedicated instrument ground bar. Do not loop ground connections or ground both ends of the shield to prevent the formation of ground loops.
Disconnection Safety: Given the factory discontinuation status since Dec 31, 2018, ensure firmware flash compatibility is verified via the DeltaV Explorer interface prior to replacing legacy modules in online safety systems.
