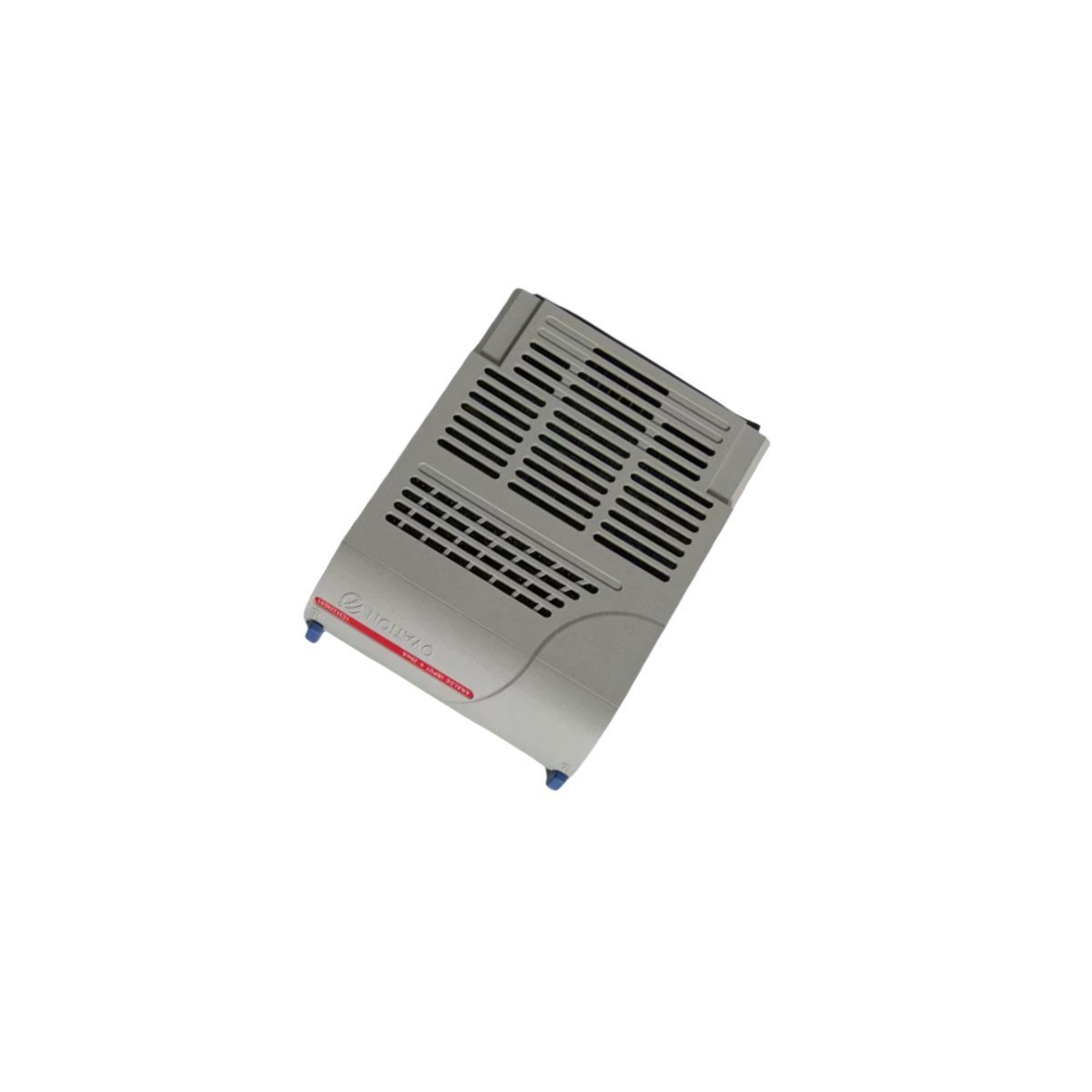

EMERSON 1C31116G02 Ovation Module

The EMERSON 1C31116G02 serves as a specialized I/O processing component within the Ovation distributed control system (DCS) framework. While the datasheet references the DeltaV SIS range, this particular component part number historically interfaces with the Ovation control platform to execute high-precision data conversion and localized signal processing, linking field instrumentation directly to the master controller backplane.

Hardware Specifications

Ovation DCS Architecture & Real-Time Data Conversion

The electronic assembly interfaces directly with the Ovation I/O base unit or rail assembly, communicating over a deterministic internal bus structure. The hardware prioritizes ultra-low latency analog-to-digital signal conversion, processing field variables (such as pressure, temperature, or flow data) into filtered binary strings for the master controller’s process image.

The physical structure features conformally coated circuitry to safeguard components against airborne particulates and ambient moisture, allowing deployment within demanding industrial settings like power generation facilities, chemical processing operations, and water treatment utilities.

Frequently Asked Questions

Q: Does the 1C31116G02 module feature onboard diagnostic indicators?

A: Yes. The front edge of the module sub-assembly houses status LEDs that provide instant visual diagnostics indicating module health, active communication bus states, and field-side fault detection.

Q: Is this component compatible with newer Ovation control platforms?

A: Yes. Emerson designs their legacy Ovation line components with backward compatibility in mind. However, since its official discontinuation on December 31, 2018, system configurations should be validated using legacy project databases or software utilities.

Field Installation Guidelines

• Power Pre-checks: De-energize the local I/O branch or base card slot prior to inserting or seating the module. Live plugging can generate localized voltage spikes on sensitive processing buses.
• Seating Protocols: Slide the module smoothly along the card guide tracks of the base unit until the backplane connectors line up and latch securely. Improper seating will lead to communication timeout faults at the controller level.
• Shielding and Noise Control: Wire all analog field transmitters using twisted-pair shielded cable. Route the shields to the designated grounding bar on the terminal block assembly to protect weak analog inputs from electromagnetic noise.
