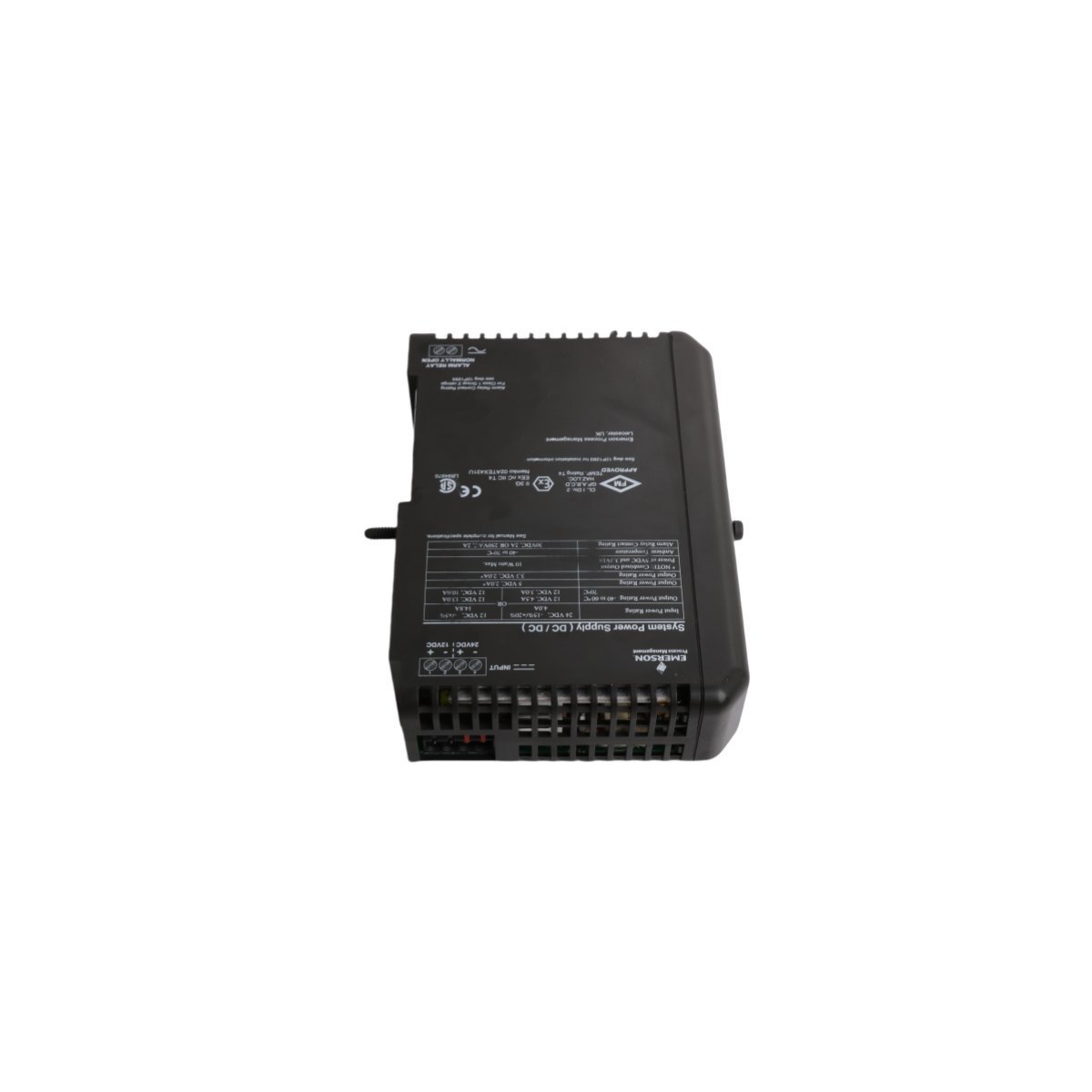

Emerson KJ1501X1-BC2 DeltaV System Power Supply

Configured for specific technical tasks in DeltaV SIS process safety system, the Emerson KJ1501X1-BC2 12P2186X042 VE5008 (Emerson KJ1501X1-BC2 DeltaV System Power Supply) provides direct physical/electrical execution. This module delivers regulated DC electrical power across the local backplane to support specific downstream control logic assemblies, input/output channels, and communication nodes. It maintains functional boundary insulation while providing the low-voltage rails required by connected subassemblies.

Hardware Specifications

Process Control & Safety System Technical Attributes

As an integral component of the Emerson DeltaV system platform, this power supply module incorporates specialized physical and electrical safety barriers designed to maintain loop integrity. The hardware architecture enforces stringent channel-to-channel isolation parameters to prevent electrical faults or ground loops from migrating across adjacent safety infrastructure.

The electrical design interfaces with 4-20 mA HART loop protocol environments and provides stable power distribution to support instrument loops without inducing signal noise. Furthermore, the internal regulation circuitry accommodates the specific power demands required by modules managing cold junction compensation (CJC) equations or FOUNDATION Fieldbus / Profibus PA connectivity matrixes, ensuring voltage drops remain within safety toleration limits under fluctuating load conditions.

Frequently Asked Questions

Q: Does this power supply support hot-swapping under active process conditions?

A: Yes. The hardware is designed for insertion into live DeltaV carrier backplanes without interrupting the operation of adjacent modules, provided the backup supply in a redundant configuration is active and bearing the load.

Q: How is the isolation between the main power rail and downstream circuits verified?

A: The module utilizes galvanic separation barriers designed to prevent fault voltages up to specified limits from breaching the system side, ensuring field-side anomalies do not disrupt core controller logic.

Q: What happens if the internal temperature exceeds acceptable operating limits?

A: The module executes a standard thermal shutdown behavior if internal junctions cross defensive thresholds, shifting the power load to the parallel redundant power supply module on the common carrier backplane.

Field Installation Guidelines

• Carrier Mounting: Ensure the carrier slots are free of debris prior to insertion. Align the plastic guides on the module housing with the track on the backplane, and apply firm, uniform pressure until the locking mechanism clicks into place.
• Grounding and Shielding: All field wiring shields must be terminated at the designated cabinet ground bars. Do not loop or daisy-chain ground wires between adjacent modules to prevent common-mode voltage problems.
• Thermal Control: Maintain a minimum 50 mm clearance around the cabinet ventilation ducts. Verify that total ambient cabinet temperature does not exceed 70 deg C under maximum load conditions.
