EMERSON KJ3243X1-BB2 DeltaV SIS M-Series

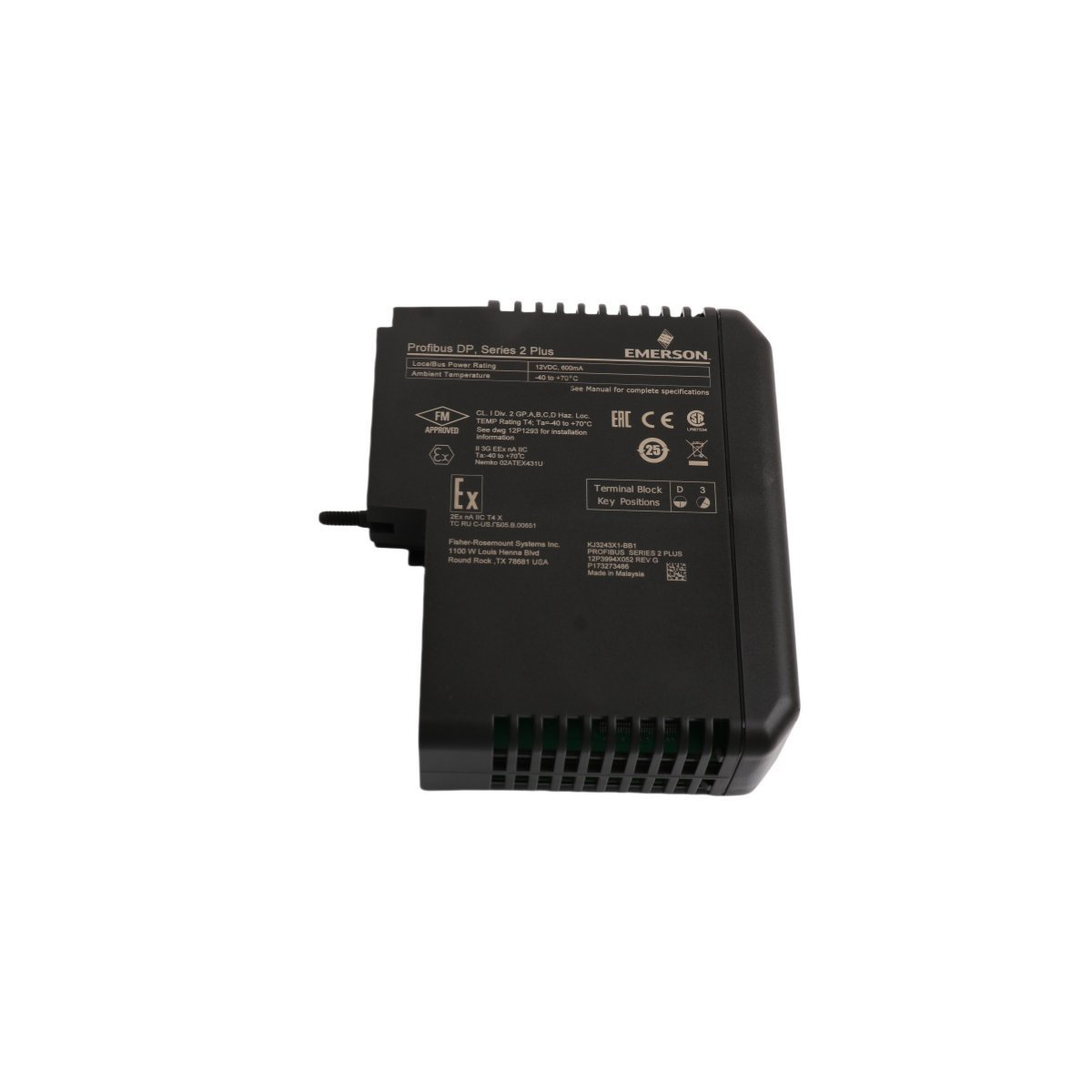

The EMERSON KJ3243X1-BB2 is a DeltaV M-Series Profibus DP interface card engineered for extreme industrial environments. Brand new factory-sealed units are ready for deployment with rapid global shipping. Ensure seamless network communications and update your process automation infrastructure now.

The EMERSON KJ3243X1-BB2, also cataloged as the KJ3243X1-BB2 Profibus DP Interface Card, serves as the primary KJ3243X1-BB2 Profibus DP Interface Card utilized to execute real-time data exchange across DeltaV SIS platforms. Configured for non-safety or safety-related process bus monitoring in M-Series distributed control networks, the module provides direct physical/electrical execution between host controllers and remote Profibus DP field nodes.

Hardware Specifications

Parameter	Specification
Model	KJ3243X1-BB2
Brand	EMERSON (DeltaV SIS Range)
Origin	USA
Weight	0.24 kg
Dimensions	4.1 x 12.5 x 13.5 cm
Operating Temp	-40 to +70 deg C
Power Consumption	600 mA @ 12 VDC
Module Type	Profibus DP Interface Card
System Integration	DeltaV M-Series / Series 2 Plus
Shock / Vibration Limits	10 g shock pulse / 1 mm peak-to-peak (0.7 g continuous)
Environmental Rating	ISA-S71.04 G3 Airborne Contaminant compliant
Humidity Limits	5% to 95% non-condensing

Process Control & 4-20 mA HART Loop Protocol Integration

The hardware manages communication translation layer mechanisms to incorporate cyclic Profibus DP slave data into the standard DCS automation sub-system. It operates as a master interface to link independent field instrumentation networks, handling multi-device addressing limits while maintaining strict galvanic channel-to-channel isolation parameters.

This internal isolation prevents field-side electrical surges or ground loops from compromising the local backplane power rails. By stabilizing bus cycle response times, the interface allows process control engineers to map data blocks from conventional Profibus architectures directly into standard 4-20 mA HART loop protocol parameters or variable fieldbus diagnostic tables within the executive control database.

Frequently Asked Questions

Q: Does the KJ3243X1-BB2 support online hot-swap operations under continuous system execution?

A: Yes. The interface card is engineered for live insertion and extraction on an active carrier slot under power without disrupting other concurrent communication interfaces or host controller operational states.

Q: How is the physical network termination handled for the Profibus DP field loop?

A: Physical bus termination must be executed via standard external D-sub connector switches or passive network terminators at the terminal end of the physical link segment. The card handles active protocol handshakes but relies on standard line termination compliance.

Field Installation Guidelines

Carrier Slot Placement: Position the interface card firmly into its designated slot on the M-Series module carrier until the integrated locking tabs engage completely with the chassis rail.
Environmental Exposure Control: Maintain cabinet sealing parameters to preserve the ISA-S71.04 G3 coating rating. Avoid exposing uninstalled module backplane gold pins to corrosive industrial atmospheres.
Profibus DP Cabling and Grounding: Deploy standard shielded twisted-pair cable (Type A Profibus). Ensure the overall cable shield makes uniform mechanical contact with the grounding clamp mechanism at the interface point to suppress high-frequency noise.
