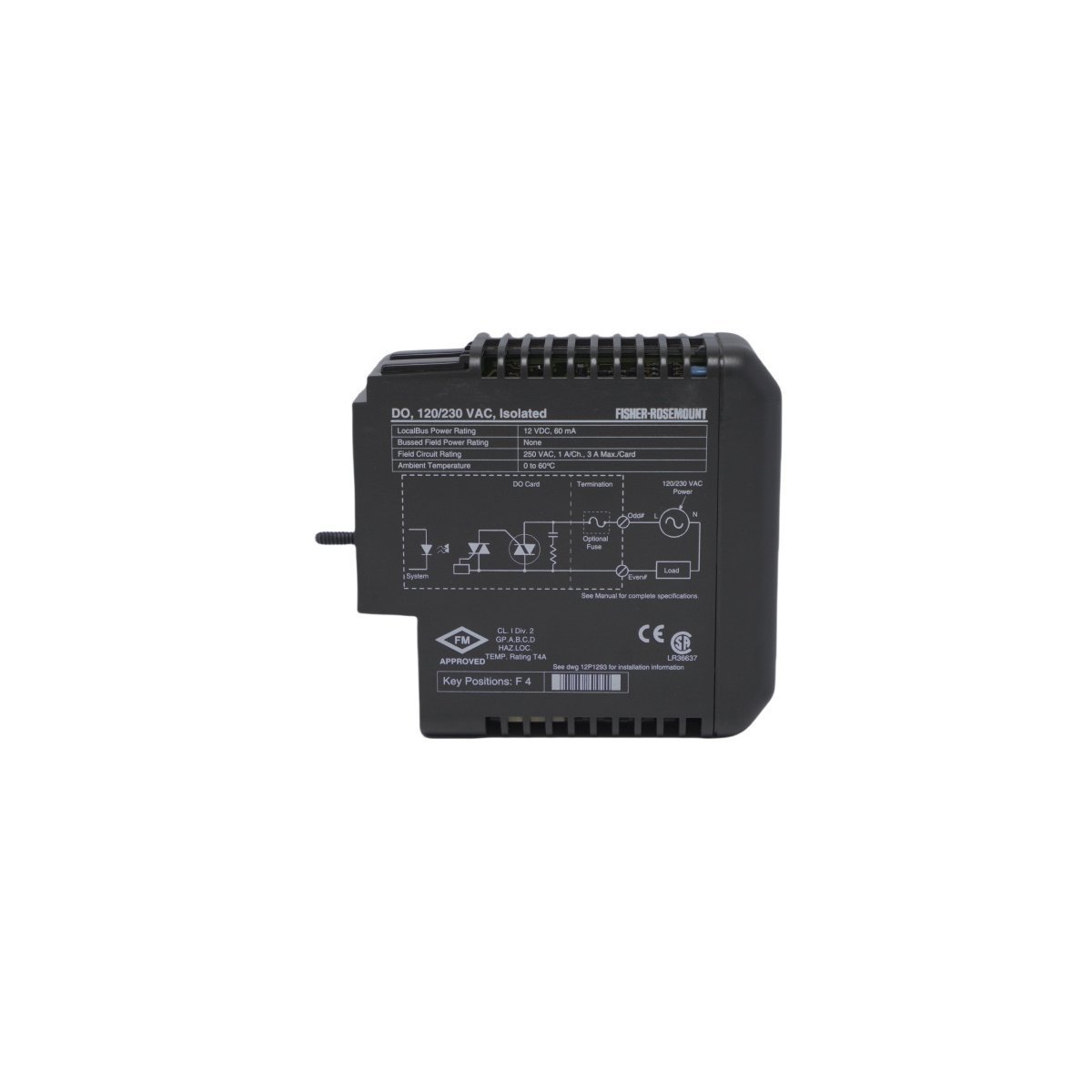

Emerson DeltaV SIS™ KJ3001X1-BH1 12P0558X152 Isolated Card

Product Overview

The Emerson KJ3001X1-BH1 (part number 12P0558X152) is a high-reliability Isolated Card engineered for the DeltaV SIS™ process safety system. Operating as a specialized hardware interface within a Distributed Control System (DCS) or Safety Instrumented System (SIS) environment, this card delivers robust galvanic isolation and signal conditioning between field instrumentation and the local control logic backplane.

By isolating input and output channels, the card blocks hazardous ground loops, dampens heavy electrical noise, and prevents high-voltage spikes from propagating into sensitive system electronics. This ensures unbroken signal integrity and deterministic loop operation inside volatile, high-interference industrial facilities.

Advanced Capabilities and Functional Benefits

• Galvanic Fault Isolation: Separates field-side loops from internal logic circuitry, protecting logic solvers from voltage surges, lightning transients, or field wiring short circuits.
• Rotary Keying Protection: Utilizes a B5 mechanical terminal block key position that physically prevents engineers or technicians from inserting the card into an incorrect or incompatible wiring block during hot-swaps.
• Harsh Environment G3 Survival: Engineered with robust conformal coating to meet the stringent ISA-S71.04-1985 Class G3 Airborne Contaminant standard, resisting corrosion in chemical-heavy or humid environments.
• High-Load Field Switching: Features a field circuit design rated up to 60 VDC at 1 A per channel, making it highly capable of driving heavy industrial relays, solenoids, or safety interlocks.
• Low LocalBus Power Footprint: Runs efficiently on the standard backplane, drawing only 150 mA at 12 VDC, which minimizes heat generation inside crowded system enclosures.

Technical Specifications

Electrical & Signal Performance

• Module Type: Isolated I/O Interface Card
• LocalBus Power Rating: 12 VDC @ 150 mA
• Field Circuit Rating: 60 VDC @ 1 A per channel
• Terminal Block Keying Position: B5 (Rotary mechanical indexing)

Environmental & Mechanical Properties

• Operating Ambient Temperature: 0°C to 60°C
• Relative Humidity Limits: 5% to 95% (Non-condensing)
• Mechanical Shock Resistance: 10g half-sinewave for 11 ms duration
• Vibration Thresholds: 1 mm Peak-to-Peak (5 to 16 Hz) | 0.5g constant acceleration (16 to 150 Hz)
• Atmospheric Protection Rating: ISA-S71.04-1985 Airborne Contaminants Class G3 (Harsh/Corrosive)
• Enclosure Ingress Rating: IP20
• Module Dimensions: 4.1 cm (W) x 12.5 cm (H) x 10.4 cm (D)
• Net Hardware Weight: 0.22 kg (approx. 220 grams)
• Country of Origin: United States (USA)
• Product Lifecycle Classification: Legacy Core (Discontinued by manufacturer Dec 31, 2018)

Industrial Applications

• Emergency Shutdown (ESD) Systems: Providing isolated, dependable signaling paths for critical emergency shutdown valves (ESVs) in petrochemical processing plants.
• Fire and Gas (F&G) Loop Monitoring: Isolation of remote field flame detectors and toxic gas sensors back to safety matrices without electrical cross-talk.
• Offshore Platform Safety Interlocking: Managing safety-critical loops on offshore oil rigs where marine salt-air requires G3 environmental protection and strict grounding control.
• Chemical Batch Plant Loop Isolation: Safeguarding DCS logic networks when dealing with remote variable-speed pump loops prone to erratic ground potential differences.
