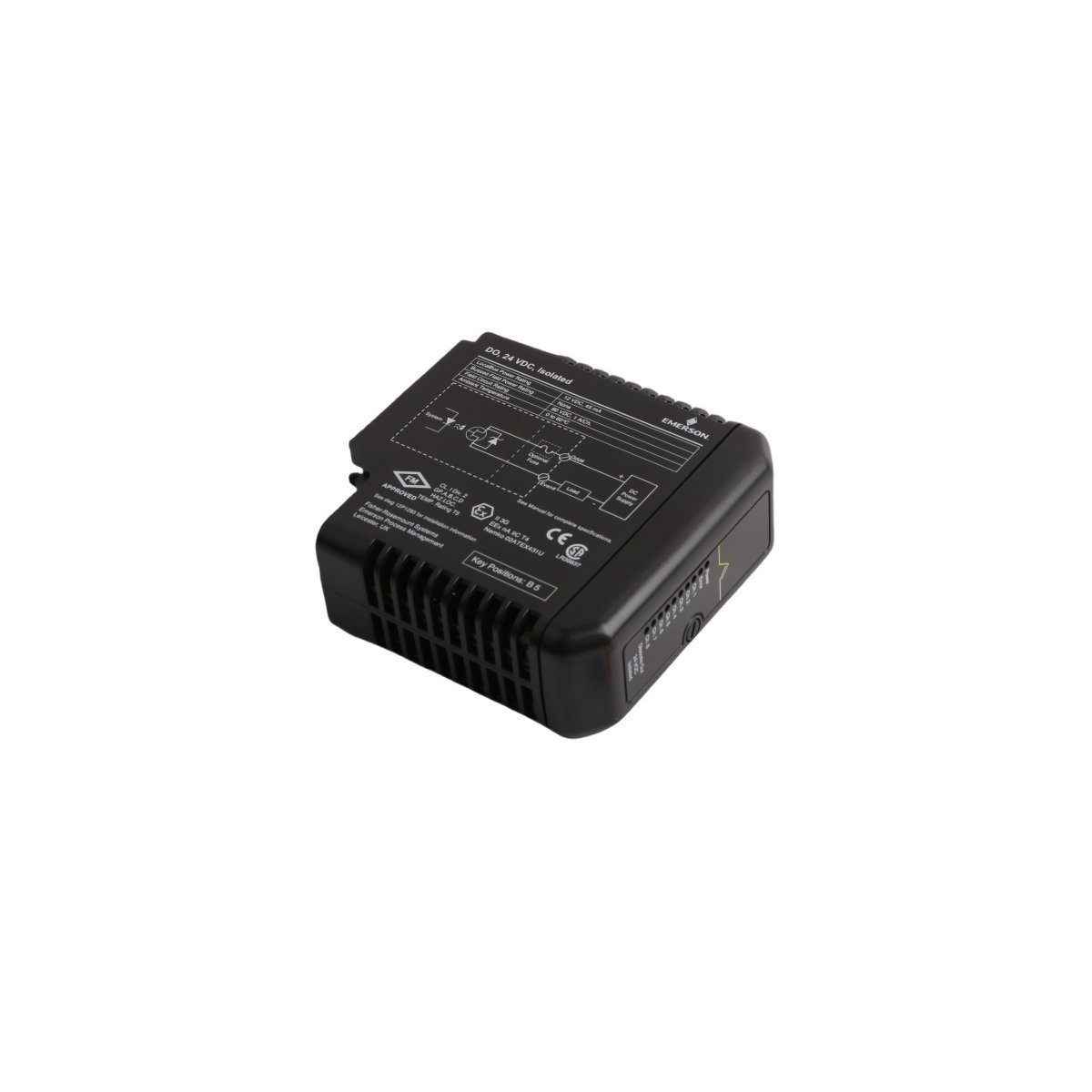

EMERSON KJ3001X1-BG1 DeltaV Input Module

The EMERSON KJ3001X1-BG1 (associated part numbers 12P0557X162 and VE4002S1T1B1) is a high-performance Input Module belonging to the Emerson DeltaV distributed control system (DCS) and DeltaV SIS process safety platform. Acting as a critical interface layer, this module captures analog or discrete field variables directly from sensors, instrumentation, and safety switches, converting physical process signals into filtered digital data for the controller backplane.

Hardware Specifications

Signal Processing & Plant Floor Protection

The KJ3001X1-BG1 engineering matrix prioritizes high signal density and galvanic isolation. By separating field-side loop voltages from the internal controller logic bus, the module prevents high-voltage line spikes or ground loops from compromising the core DCS processor.

The card features onboard analog-to-digital converters and hardware filters designed to suppress electromagnetic noise and contact bounce common in harsh heavy manufacturing or refining environments. Operating within the DeltaV environment, it communicates over redundant backplane rails to ensure continuous process monitoring and asset protection even during localized hardware faults.

Frequently Asked Questions

Q: Does the KJ3001X1-BG1 module require specific terminal block styles?

A: Yes. The card mounts to a dedicated DeltaV I/O terminal block carrier. Depending on field wiring requirements, it can be paired with fused, non-fused, or extended terminal blocks to accommodate different loop power schemes.

Q: Can this specific module be integrated into standard DeltaV control systems alongside safety systems?

A: Yes. While it carries safety system cross-references, Emerson’s modular architecture allows specific inputs to interface across both traditional DeltaV DCS environments and DeltaV SIS safety networks depending on software channel configuration.

Field Installation Guidelines

• Carrier Keys and Interlocks: Ensure the mechanical keying pins on the I/O carrier match the slots on the rear of the KJ3001X1-BG1 module. This physical interlock prevents inserting the wrong module type into a live slot.
• Hot-Swap Execution: Pull the module’s top and bottom extraction tabs outward simultaneously to unseat it from the backplane connectors. When inserting the new module, press firmly until the tabs snap back into their locked positions.
• Shield Grounding Check: For sensitive analog loops, terminate the field instrument cable drain wires directly to the carrier’s grounding bus bar rather than leaving them floating, protecting data integrity from ambient RFI.
