EMERSON KJ4110X1-BC1 DeltaV M-series I/O Subsystem

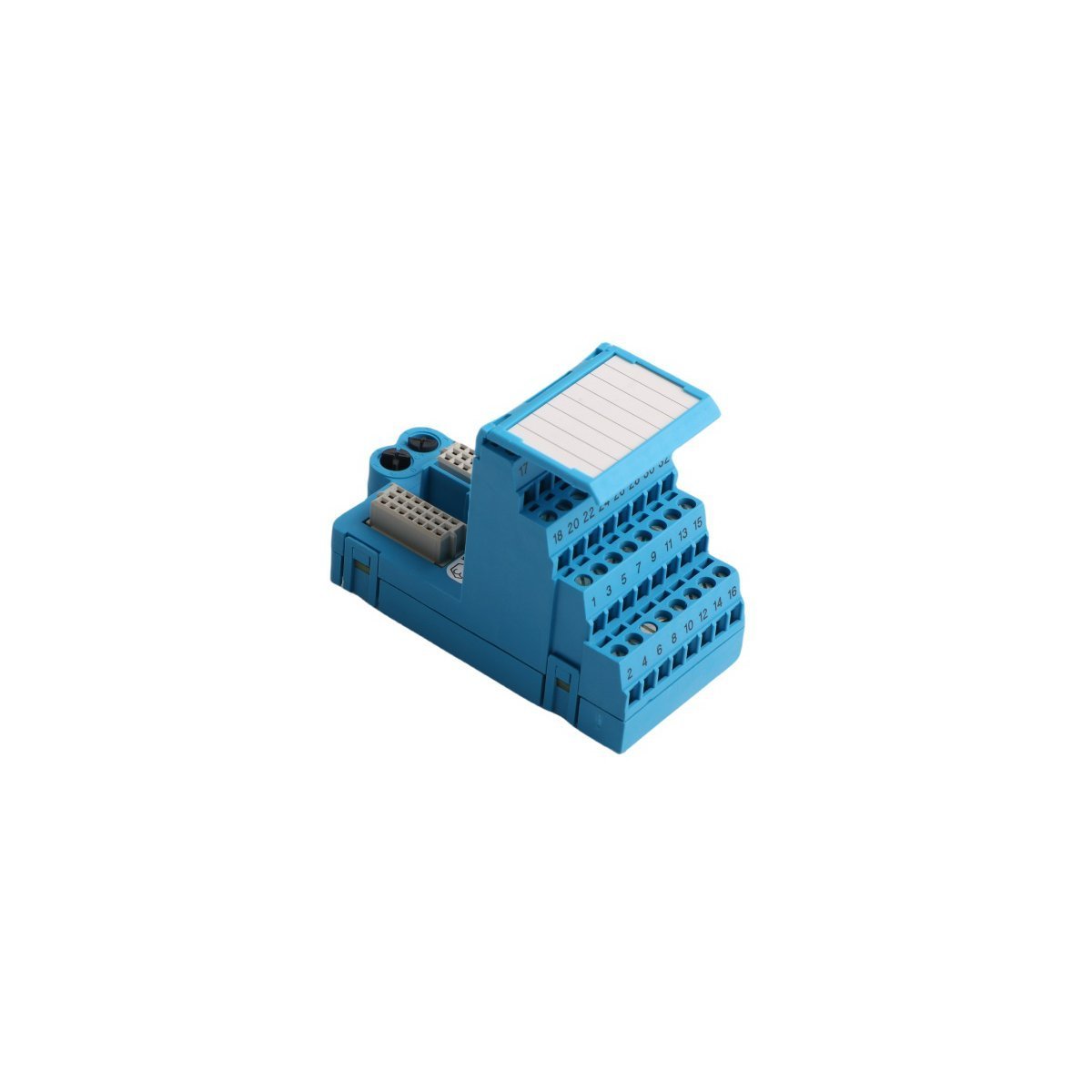

Configured for specific technical task in DeltaV M-series I/O Subsystem, the EMERSON KJ4110X1-BC1 12P1869X012 (KJ4110X1-BC1 Terminal Block) provides direct physical/electrical execution. It serves as a 16-channel hardware interface that maps discrete physical field terminations from sensors and switches directly onto the DeltaV digital backplane bus structure.

Hardware Specifications

Process Control & DCS Instrumentation

The component utilizes channel-to-channel isolation principles across its 16-channel layout to prevent ground loops and common-mode signal propagation across the internal backplane bus. The assembly integrates with 4-20 mA HART loop protocol environments and associated discrete infrastructure via point-to-point terminations. High-frequency noise filters provide signal conditioning on each input channel, maintaining loop integrity and digital status registration during transient voltage fluctuations across the process automation network.

Frequently Asked Questions

Q: Does the KJ4110X1-BC1 require manual address configuration upon deployment?

A: No. The terminal block functions as a passive/semi-passive physical routing layer that maps field wiring onto the active I/O carrier module. Addressing is automatically assigned by the active electronic module positioned on the same slot.

Q: Can this terminal block be disconnected while the local I/O carrier is energized?

A: Field wiring terminal blocks must only be removed or inserted when the specific loop circuit power is isolated, or when the environment is verified as non-hazardous, to prevent electrical arcing across the backplane connection contacts.

Field Installation Guidelines

1. Mount the terminal block vertically onto the designated slot of the DeltaV M-series I/O carrier base unit.
2. Tighten the integrated retention screws to secure the mechanical connection and ensure proper alignment of the internal backplane pins.
3. Strip field wires to the prescribed length without scoring the physical conductors. Insert the wires into the respective screw terminals (Channels 1 through 16).
4. Terminate external cable shields directly to the local field enclosure ground bus bar to maintain proper shield continuity and prevent cross-talk.
5. Verify that the routing of all low-voltage signal lines maintains appropriate separation distances from high-voltage AC power distribution conduits.
