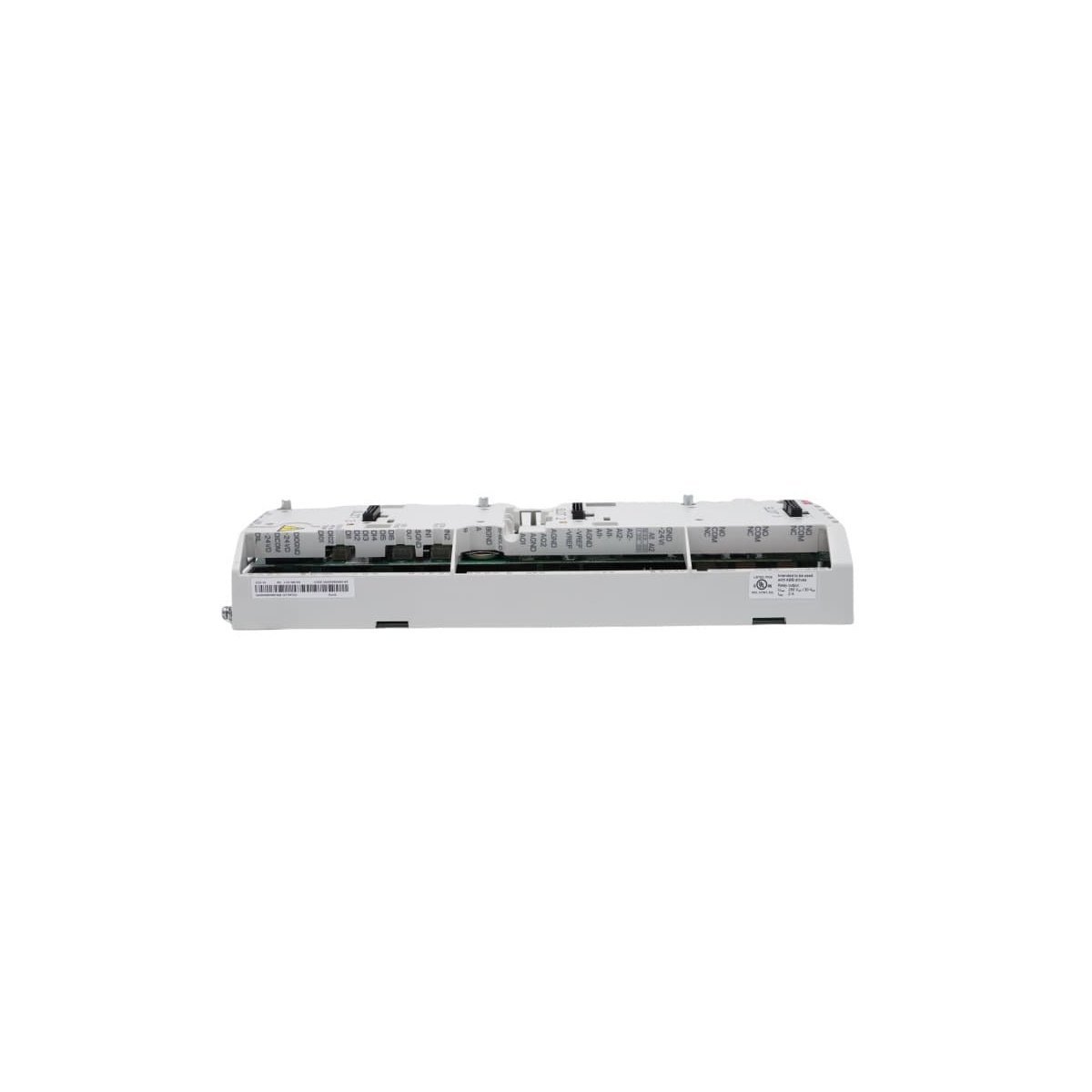

ABB ZCU-14 3AXD50000005164 Drive Control Unit

The ABB ZCU-14 (3AXD50000005164) is a high-performance control unit for ACS880 industrial drives. Featuring integrated Safe Torque Off (STO), versatile I/O expansion, and advanced motor control firmware, this unit provides the deterministic processing and reliability required for complex variable speed drive applications.

High-Performance Logic and Motor Control

The ABB ZCU-14 (part number 3AXD50000005164) serves as the primary control intelligence for high-power industrial drives, such as the ACS880 series. This unit functions by executing sophisticated motor control algorithms, including Direct Torque Control (DTC), which ensures precise speed and torque regulation. By processing high-speed feedback from the power stage, the ZCU-14 manages the switching frequency of the inverters to optimize energy efficiency and motor performance. Furthermore, this control board handles all logic processing for the drive’s firmware. Consequently, the ZCU-14 is a critical component for demanding applications in mining, oil and gas, and heavy manufacturing.

Versatile I/O Integration and Fieldbus Connectivity

Beyond its core motor control tasks, the ZCU-14 incorporates a wide array of integrated I/O interfaces, including digital inputs, relay outputs, and analog signal paths. This onboard connectivity allows the drive to interface directly with local sensors and switches without the need for external PLC modules. In addition to these local connections, the unit features expansion slots for fieldbus adapter modules, such as PROFINET, EtherCAT, or Modbus/TCP. Because the module supports high-speed communication across these networks, it ensures that process data is synchronized with the master controller in real-time. Moreover, this flexibility enables plant designers to integrate the drive into virtually any industrial automation architecture.

Enhanced Reliability and Built-in Safety Functions

ABB has engineered the 3AXD50000005164 with a focus on maximum uptime and operational safety, incorporating a dedicated Safe Torque Off (STO) interface. This hardware-based safety function allows the drive to be integrated into SIL 3/PLe safety circuits, ensuring that the motor cannot generate torque during an emergency. Additionally, the unit features integrated diagnostic logging and a removable memory unit that stores all drive parameters and firmware. Therefore, if a control unit needs replacement, technicians can simply move the memory unit to the new hardware to restore the system instantly. As a result, this combination of safety compliance and rapid serviceability significantly reduces the total cost of ownership for large-scale drive systems.
