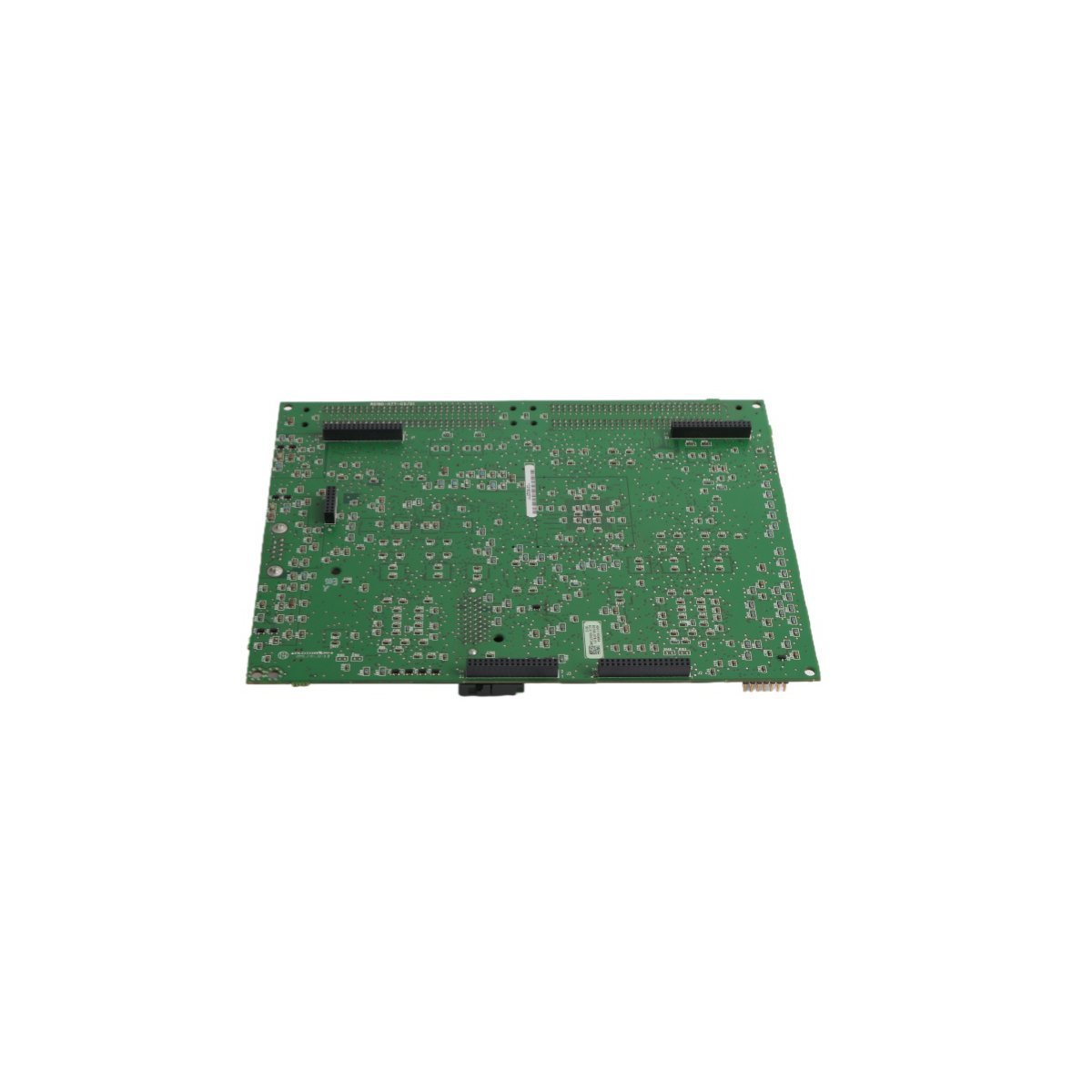

Allen-Bradley 80190-580-01-R Drive Processor Control Module

Product Overview

The Allen-Bradley 80190-580-01-R serves as a specialized Drive Processor Module, primarily functioning as an analog control board within high-performance motor drive systems. This module acts as the computational “brain” for the drive, executing complex algorithms to regulate speed, torque, and position. Although often categorized within broader ControlLogix ecosystems for integrated control, this board focuses on the precise management of power conversion and motor synchronization in heavy-duty industrial applications.

Technical Capabilities and Performance

• Manufacturer: Allen-Bradley / Rockwell Automation
• Model Number: 80190-580-01-R
• Module Function: Analog Control / Drive Processing
• Hardware Interface: 14-pin header for specialized system configuration
• Interconnects: Four on-board male connectors for peripheral integration
• Communication: Dedicated I/O port for high-speed internal data transmission
• Physical Architecture: Multi-layer Printed Circuit Board (PCB) design
• Operational Weight: 0.9 kg (Net)
• Dimensions: 3.5 x 13 x 14.5 cm (Module core)

Operational Applications

Industrial operators utilize the 80190-580-01-R in sectors requiring variable frequency control and engine management. It excels in heavy machinery environments, such as large-scale conveyor systems, industrial fans, and centrifugal pumps. Because the module manages analog feedback loops, it maintains motor stability even under fluctuating load conditions. Engineers frequently specify this processor for legacy system upgrades or as a critical spare for specialized Rockwell drive assemblies where precise signal conditioning is required.

Core Features

• The advanced microprocessor executes real-time control logic to minimize harmonic distortion and improve motor efficiency.
• Four integrated male connectors facilitate a secure physical interface with power modules and feedback sensors.
• The 14-pin header provides a versatile gateway for custom field configurations and specialized diagnostic tools.
• Robust PCB construction resists the thermal and electrical stresses typical of high-horsepower motor control cabinets.
• On-board signal conditioning circuitry filters electromagnetic interference (EMI) to ensure data integrity in noisy industrial environments.
• The module integrates a dedicated communication port to synchronize drive data with broader PLC networks.
