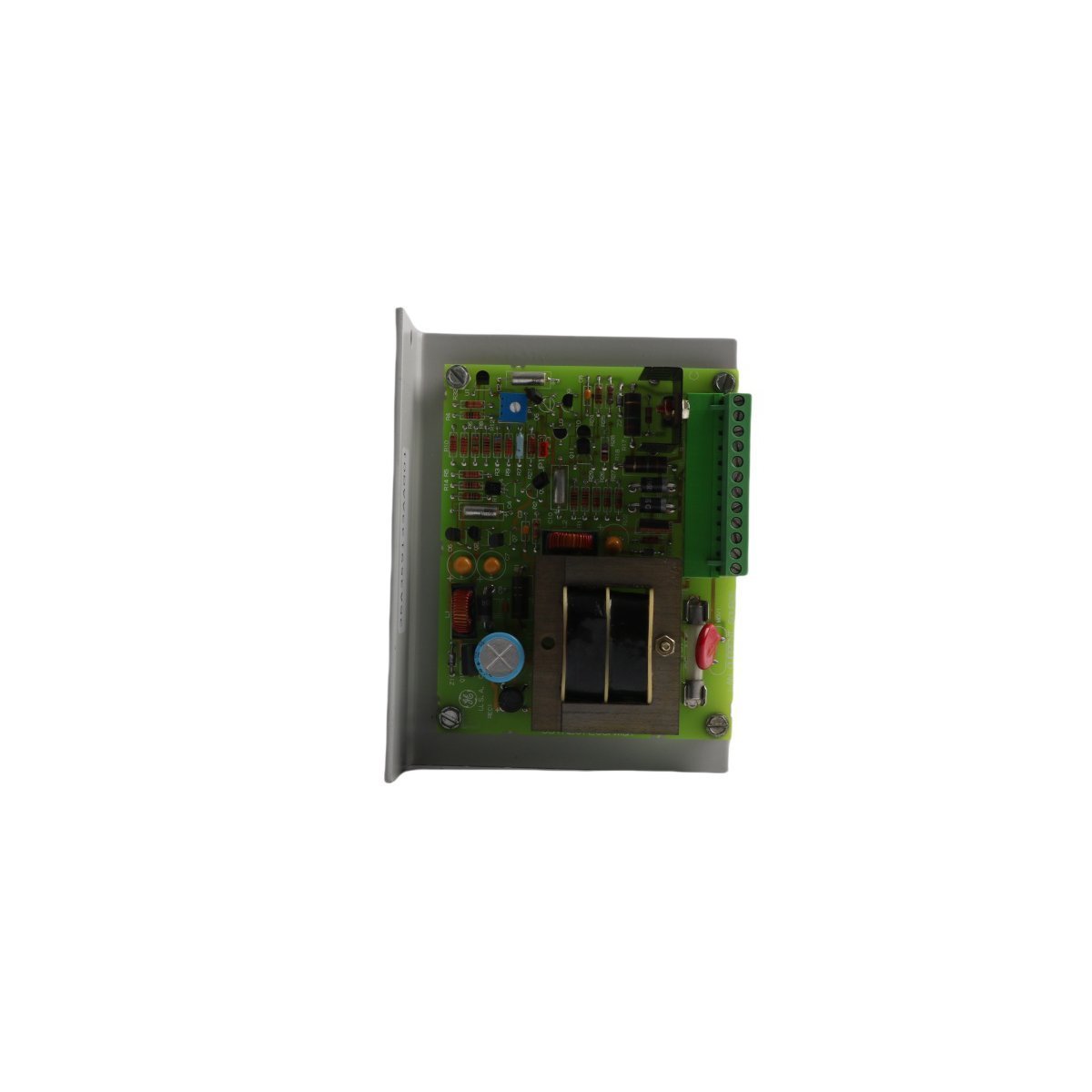

GE 531X207LCSAMG1 LAN Current Source Card Multilin Drive Series

The GE 531X207LCSAMG1 is a LAN current source card designed for the 531X drive and exciter series. It converts 115 VAC input into regulated 5 VDC and 15 VDC outputs to power network communication boards, featuring an adjustable potentiometer and jumper-selectable settings for precise industrial control.

Request a Quote

Technical Overview

The GE 531X207LCSAMG1 functions as a dedicated LAN current source board within General Electric’s 531X legacy drive and exciter systems. This essential power regulation module provides the necessary voltage to drive local area network (LAN) communication boards, which facilitates data exchange between the control system and external peripheral devices. By accepting a fuse-protected 115 VAC input, the card generates stable 5 VDC and 15 VDC power rails. Furthermore, the 531X207LCSAMG1 serves as a bridge between high-voltage cabinet power and sensitive low-voltage communication circuitry, thereby protecting the network interface from electrical inconsistencies.

Core Operational Features and Benefits

  • Dual Voltage Regulation: The circuit architecture produces both 5 VDC and 15 VDC outputs. Consequently, this allows the card to support a wide variety of GE LAN communication modules that require multiple power levels for operation.
  • Configurable Output Selection: Operators utilize the integrated J1 jumper to select the appropriate power supply path. This flexibility ensures that the board adapts to specific system requirements without the need for hardware modifications.
  • Precision Voltage Tuning: A high-accuracy onboard potentiometer enables technicians to fine-tune the DC output. Because of this feature, the system maintains optimal signal integrity even when line losses or component aging occur.
  • Integrated Safety Protection: The board features a dedicated fuse and a 12-point terminal strip. These components actively safeguard the drive cabinet against overcurrent events and provide a reliable interface for signal relaying.
  • Seamless Drive Compatibility: GE engineers designed this card to integrate directly into the 531X replacement series. As a result, users can perform upgrades or repairs on GE exciters and drive systems with minimal downtime.

Primary Industry Applications

  • GE Drive Systems: Supplies constant current and power to communication interfaces in industrial DC drives.
  • Turbine Control Excitation: Provides regulated DC power for network boards within GE turbine control cabinets.
  • LAN Communication Infrastructure: Powers the interface cards that manage the flow of data across the industrial control network.
  • System Maintenance and Retrofitting: Serves as a critical replacement part for maintaining legacy GE industrial control installations.

Technical Product Specifications

  • Manufacturer: General Electric (GE)
  • Model Number: 531X207LCSAMG1
  • Product Series: 531X Multilin / Drive Series
  • Device Category: LAN Current Source Card
  • Input Voltage Requirement: 115 VAC (Fuse-Protected)
  • DC Power Outputs: 5 VDC and 15 VDC
  • Hardware Interface: 12-point terminal board / J1 Jumper
  • Net Weight: 0.68 kg
  • Product Dimensions: 28 x 21.4 x 3.5 cm
