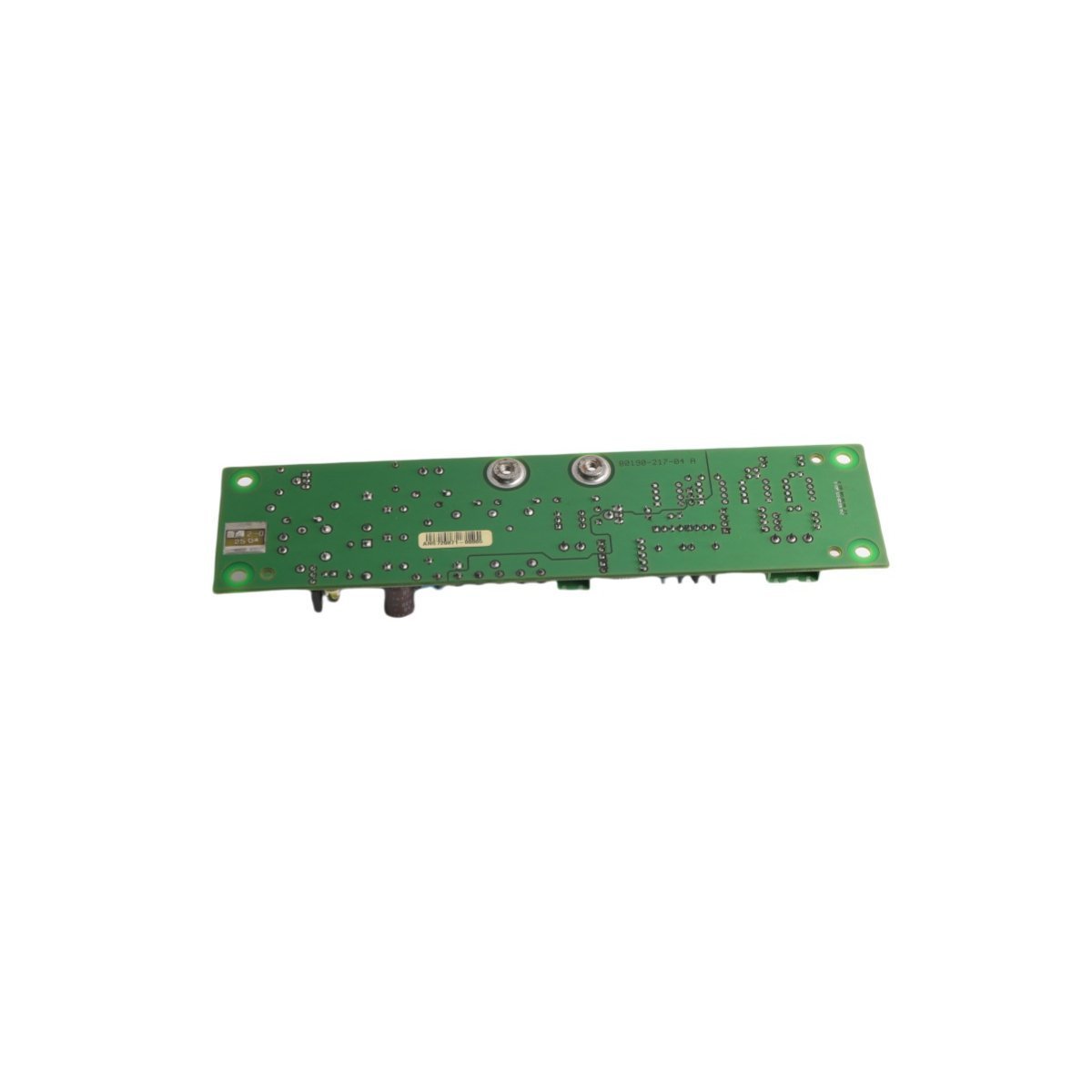

Allen-Bradley 80190-220-01-R Industrial SCR Gate Driver Board

The Allen-Bradley 80190-220-01-R is a self-powered SCR gate driver board designed for high-precision industrial automation and power conversion. This robust CPU board ensures reliable semiconductor triggering and seamless integration into PLC-based systems.

Request a Quote

Product Overview

The Allen-Bradley 80190-220-01-R serves as a specialized gate driver assembly engineered for Silicon-Controlled Rectifier (SCR) power applications. This component acts as the critical interface between low-level control logic and high-power semiconductors, facilitating precise triggering and phase control. By utilizing a self-powered architecture, the board eliminates the requirement for external power supplies, which effectively streamlines cabinet wiring and reduces potential points of failure within the automation system.

Technical Capabilities and Operation

This driver board incorporates advanced pulse-transformer circuitry to provide galvanically isolated gate signals. This isolation protects sensitive control electronics from high-voltage transients common in power conversion environments. Furthermore, the 80190-220-01-R maintains consistent switching performance across various load conditions, ensuring that power semiconductors operate within their safe operating areas. The integrated design minimizes propagation delay, which subsequently enhances the responsiveness of real-time motor control and heavy-duty power regulation.

Application and System Integration

  • Motor Control Systems: Optimized for use in large DC drive regulators and soft starters where precise SCR firing is required for torque and speed management.
  • Power Conversion: Ideal for industrial rectifiers, heaters, and power supplies requiring robust high-current switching.
  • PLC Environments: Designed for seamless integration into Programmable Logic Controller architectures via standard communication and signal pathways.
  • Harsh Environments: The PCB construction utilizes industrial-grade materials to resist vibration, thermal cycling, and electrical noise.

Technical Specifications

  • Manufacturer: Rockwell Automation / Allen-Bradley
  • Part Number: 80190-220-01-R
  • Component Type: SCR Gate Driver Board / CPU Control Board
  • Dimensions: 20.7 cm x 5.0 cm x 2.5 cm
  • Net Weight: 0.1 kg
  • Control Method: Pulse Triggering for SCR Phase Control
  • Power Source: Self-powered from the host system bus
  • Harmonized Tariff Code: 8537101190
  • Country of Origin: United States
