Allen-Bradley 22B-D4P0N104 PowerFlex 40 AC Drive

Product Overview

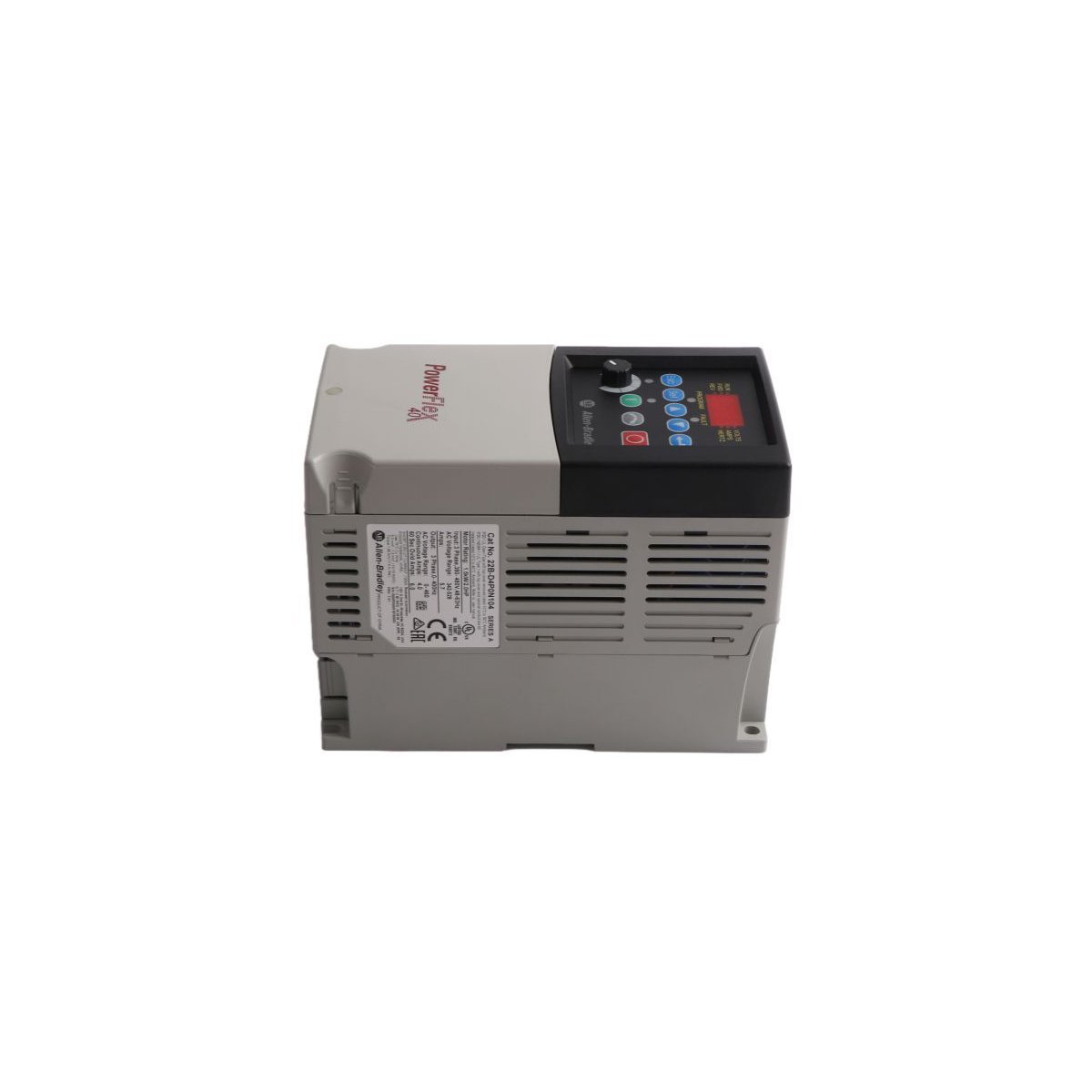

The Allen-Bradley 22B-D4P0N104 serves as a compact and highly capable AC drive within the PowerFlex 40 series. Engineers utilize this inverter to provide sensorless vector control for three-phase induction motors, achieving superior speed regulation and high starting torque even in demanding industrial applications. Because this unit integrates advanced motor control algorithms, it effectively handles dynamic load variations found in conveying, packaging, and material handling systems. Furthermore, its versatile design allows for seamless mounting within standard electrical enclosures, making it an essential component for modern machine automation.

Technical Specifications

• Manufacturer: Allen-Bradley (Rockwell Automation)
• Model Number: 22B-D4P0N104
• Input Voltage: 342–528V AC (Three-Phase)
• Output Current: 4.0 Amps
• Power Rating: 1.5 kW (2 HP)
• Enclosure Rating: IP20 (Open Type)
• Communication Port: RS485 (Integral)
• Control Methodology: Sensorless Vector, PID
• Operating Temperature: Designed for controlled environments
• Physical Dimensions: 3.5 cm x 13 cm x 14.5 cm
• Weight: 0.9 kg

Functional Characteristics and Application

The 22B-D4P0N104 incorporates an internal PID controller, which enables the drive to operate as a self-contained automation hub for process regulation. Specifically, by utilizing the autotuning function, the drive automatically calibrates flux current and IR compensation to match the specific characteristics of the connected motor; consequently, this process optimizes energy efficiency and motion stability. In addition to this, the integrated logic and timing functions, such as programmable counters and step-logic sequences, allow engineers to eliminate external relay hardware, which significantly reduces the total cost and complexity of the control panel.

Moving beyond basic speed control, this unit simplifies communication across the plant floor. While the integrated RS485 port handles standard data exchange, users can furthermore expand the system capabilities by adding optional modules for Ethernet/IP or DeviceNet connectivity. Furthermore, the fixed keypad provides operators with intuitive, real-time access to diagnostic parameters and motor performance monitoring. Ultimately, because the drive maintains rigorous control over voltage and frequency, it protects the motor from typical electrical stresses, ensuring reliable operation over an extended service life. By deploying the PowerFlex 40 in your facility, you achieve robust control while minimizing maintenance overhead.
