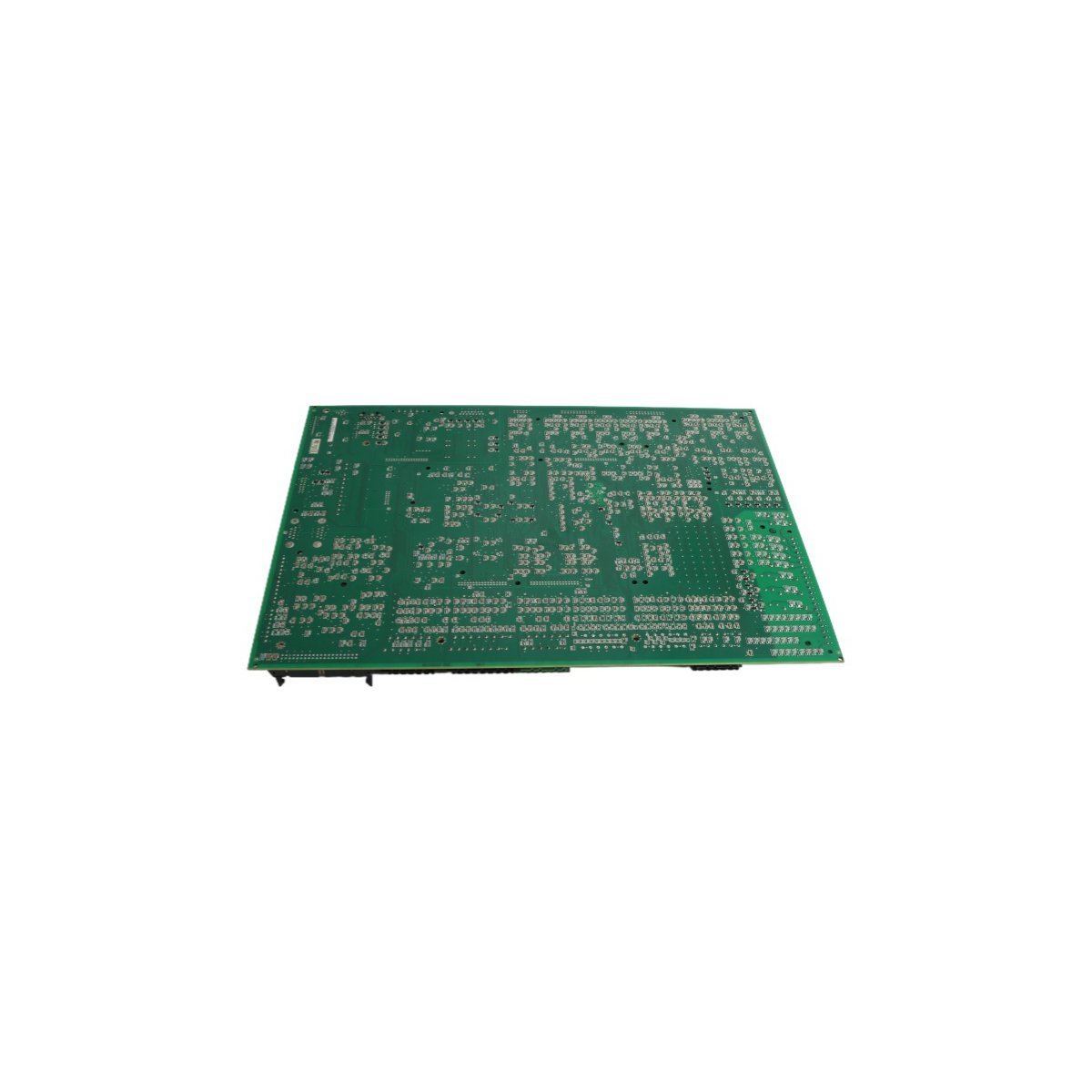

Allen-Bradley 80190-560-02-R Analog Control Board for PowerFlex 7000
The Allen-Bradley 80190-560-02-R is an Analog Control Board designed for PowerFlex 7000 medium voltage drives to ensure precise motor control and regulation.
Product Overview
The Allen-Bradley 80190-560-02-R functions as a critical Analog Control Board (ACB) engineered specifically for the PowerFlex 7000 medium voltage AC drive platform. This printed circuit assembly manages the drive’s internal analog control loops and processes Pulse Width Modulation (PWM) signals to maintain precise motor speed and torque regulation. Because the drive operates in medium voltage environments, the control board utilizes high-precision components to ensure signal integrity and operational stability within the overall power structure.
Technical Specifications
- Model Number: 80190-560-02-R
- Manufacturer: Allen-Bradley (Rockwell Automation)
- Drive Compatibility: PowerFlex 7000 Medium Voltage AC Drives
- Module Type: Analog Control Board (ACB)
- Signal Processing: PWM (Pulse Width Modulation)
- Operating Environment: Industrial drive cabinet
- Mounting: Internal PCB assembly
- Weight: 0.9 kg
- Dimensions: 3.5 cm x 13 cm x 14.5 cm
- Status: Discontinued (Effective June 30, 2016)
Functional Role and System Maintenance
The 80190-560-02-R board bridges the gap between the drive’s main processor and the power stage. By performing real-time analog signal monitoring, the control board enables the drive to respond accurately to changing load conditions. Moreover, this module ensures consistent power output, which consequently prevents drive faults and optimizes motor efficiency in demanding applications.
Qualified service personnel must handle this component with caution, as it resides within high-voltage drive assemblies. Furthermore, proper ESD (Electrostatic Discharge) protocols remain mandatory during the installation or removal of the board to prevent latent damage to the sensitive circuitry. Since Rockwell Automation has officially discontinued this module, facility managers should prioritize testing and validation when integrating replacement units into legacy systems. By utilizing reliable replacements or authorized repair services, operators sustain the operational longevity of their PowerFlex 7000 assets and avoid premature capital equipment replacement.
