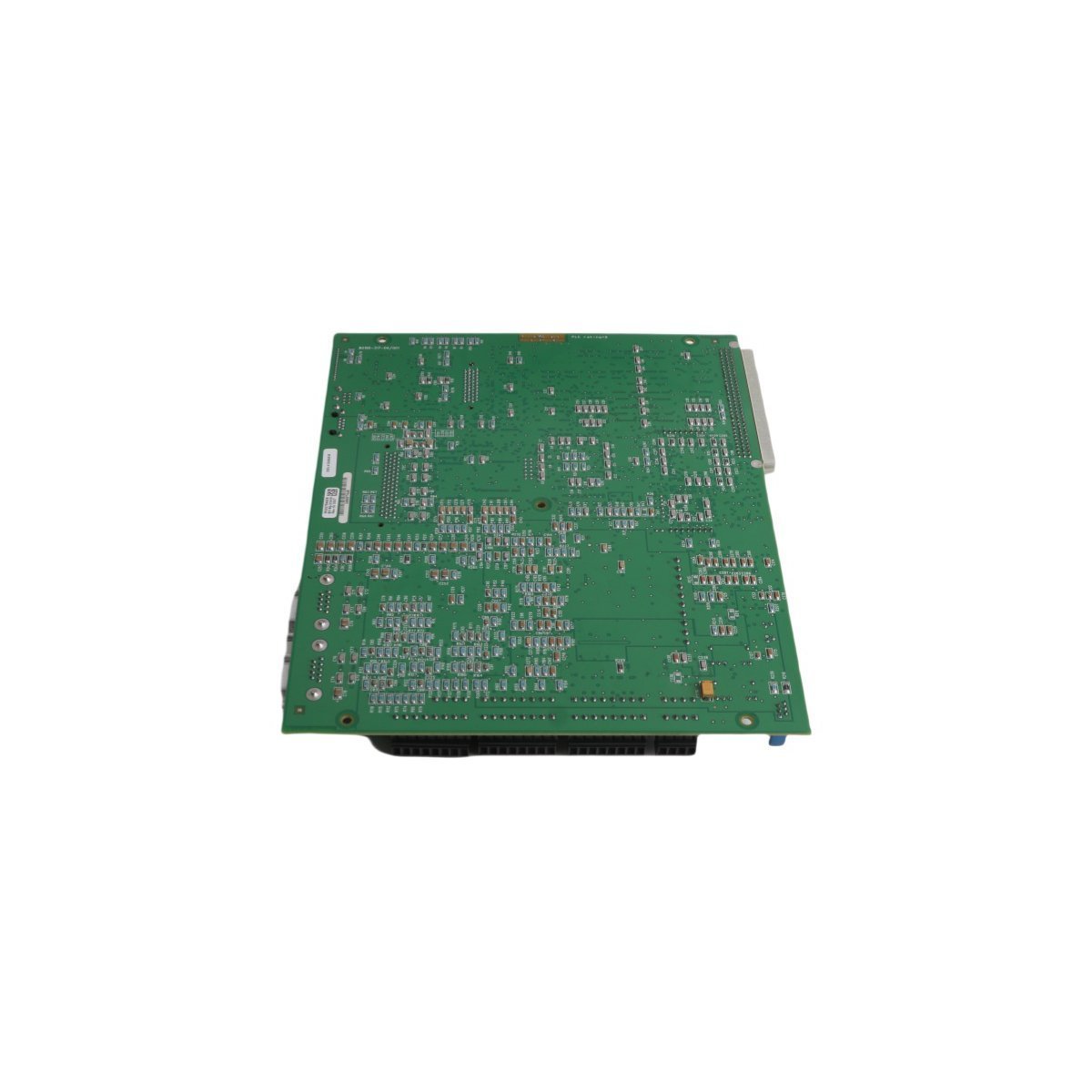

Allen Bradley 80190-320-03-R Control Motherboard

The Allen Bradley 80190-320-03-R, also cataloged as the 80190-320-03-R Control Motherboard, operates as a dedicated hardware component for system-level logic management and signal distribution within PLC-5 architecture platforms.

Hardware Specifications

ParameterSpecification
Model80190-320-03-R
BrandAllen Bradley
OriginUSA
Weight0.48 kg
Dimensions25 x 21.8 x 3.5 cm
Operating Temp-20 deg C to 60 deg C
Power ConsumptionSystem Backplane Dependent
Product RangePLC-5

Industrial Control and Network Characteristics

The 80190-320-03-R utilizes backplane bus communication velocity to maintain deterministic signal paths within the chassis. Integration into automation networks supports multi-protocol data exchange, ensuring synchronization between I/O modules and the primary processor. Firmware flash compatibility allows for system version alignment, while the modular architecture facilitates scalable I/O density within the PLC-5 environment to meet specific application requirements.

Frequently Asked Questions

Q: Does the 80190-320-03-R support hot-swapping within the PLC-5 chassis?

A: The module is designed for fixed installation within the backplane; hot-swapping is not recommended unless explicitly supported by the specific chassis revision and power distribution unit.

Q: What are the grounding requirements for the motherboard to ensure signal integrity?

A: The motherboard must be securely fastened to the chassis to establish a common ground plane, and all I/O shields must be terminated at the designated cabinet grounding point to suppress noise.

Field Installation Guidelines

  1. Isolate all power sources to the PLC-5 chassis prior to hardware installation.
  2. Inspect the motherboard backplane connector pins for oxidation or mechanical deformation.
  3. Align the motherboard into the chassis guide rails and apply firm, even pressure until the backplane connector is fully seated.
  4. Secure the board using the integrated locking mechanisms or chassis screws to ensure mechanical stability.
  5. Connect all ribbon cables and field wiring interfaces, ensuring proper strain relief to prevent tension on the board-to-board connections.
  6. Verify electrical continuity and ground bonding before restoring power to the system.
