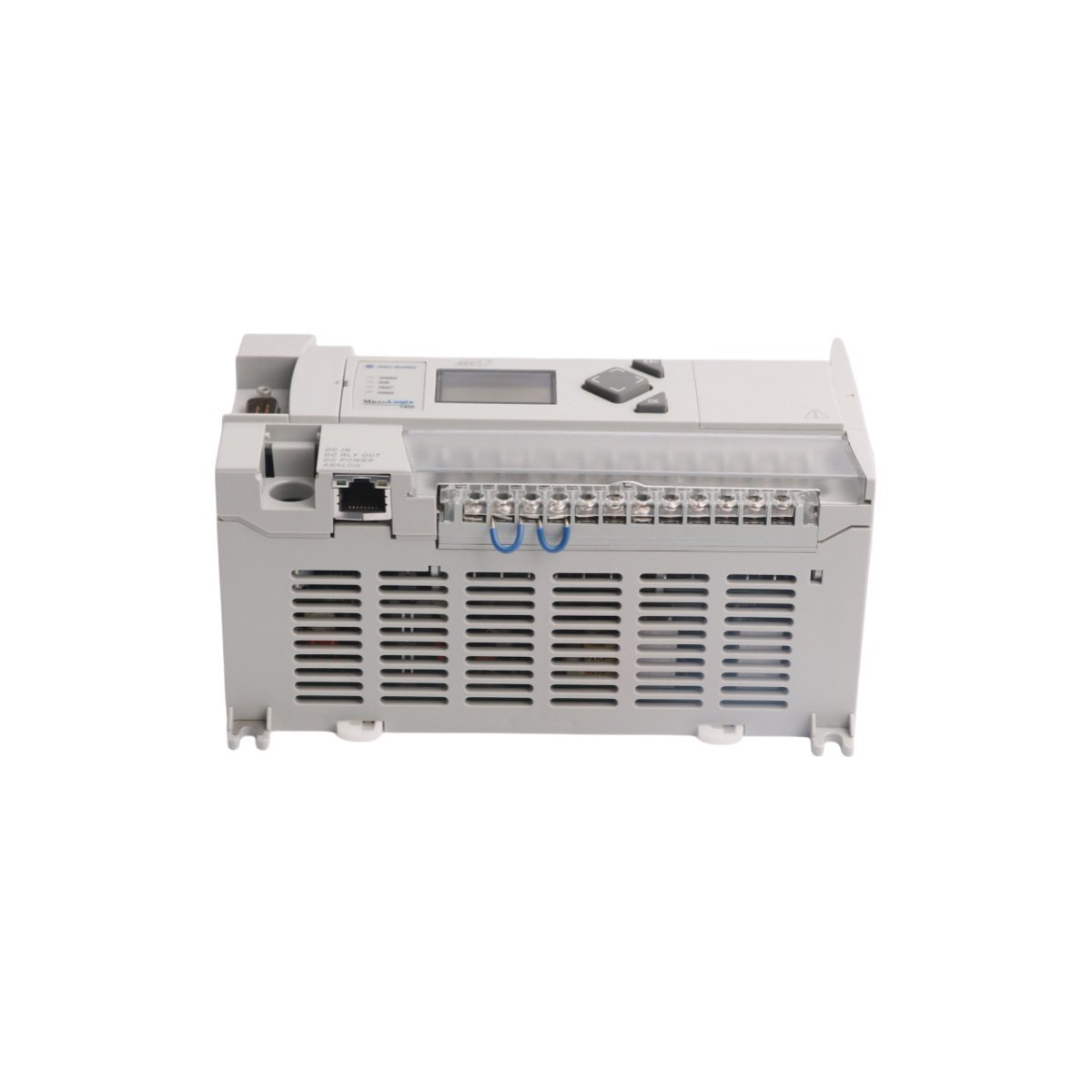

Allen Bradley 1766-L32BXBA MicroLogix 1400 PLC

The Allen-Bradley 1766-L32BXBA belongs to the powerful MicroLogix 1400 family. This controller provides expanded I/O counts and superior communication flexibility. It combines digital and analog processing within a single compact housing. Consequently, this PLC serves as a primary control solution for small to mid-sized machinery. The unit supports complex instruction sets found in larger Logix-based systems. It remains a staple in modern industrial environments due to its integrated Ethernet capabilities.

Integrated I/O and Control Capabilities

• Total Digital I/O: 32 Points
• Fast Inputs: 12 High-speed 24V DC inputs
• Standard Inputs: 8 24V DC inputs
• Relay Outputs: 6 Individually isolated relay contacts
• DC Outputs: 6 Fast 24V DC outputs
• Analog Inputs: 4 Channels (0 to 10V DC)
• Analog Outputs: 2 Channels (0 to 10V DC)
• Power Supply: 12 to 24V DC input power
• User Memory: 20 KB for user programs and data

Connectivity and Expansion Features

This controller features an integrated LCD screen for status monitoring and bit manipulation. It offers three independent communication ports for simultaneous networking. These include a combined RS-232/RS-485 isolated port and a dedicated non-isolated RS-232 port. Additionally, the built-in RJ45 port supports EtherNet/IP for high-speed messaging and DNP3 protocol support. The unit also includes a real-time clock for scheduling time-sensitive automation tasks. For expanded requirements, the controller accepts up to seven 1762 expansion I/O modules.

Industrial Implementation

The 1766-L32BXBA excels in food and beverage processing and wastewater treatment applications. It effectively manages packaging equipment and material handling conveyors. The robust 24V DC power design suits mobile equipment and battery-backed systems. Furthermore, the non-volatile flash memory protects critical data during unexpected power loss. Its ability to handle high-speed counter inputs makes it ideal for precision motion sensing. This PLC provides a reliable and cost-effective foundation for professional-grade automation.
