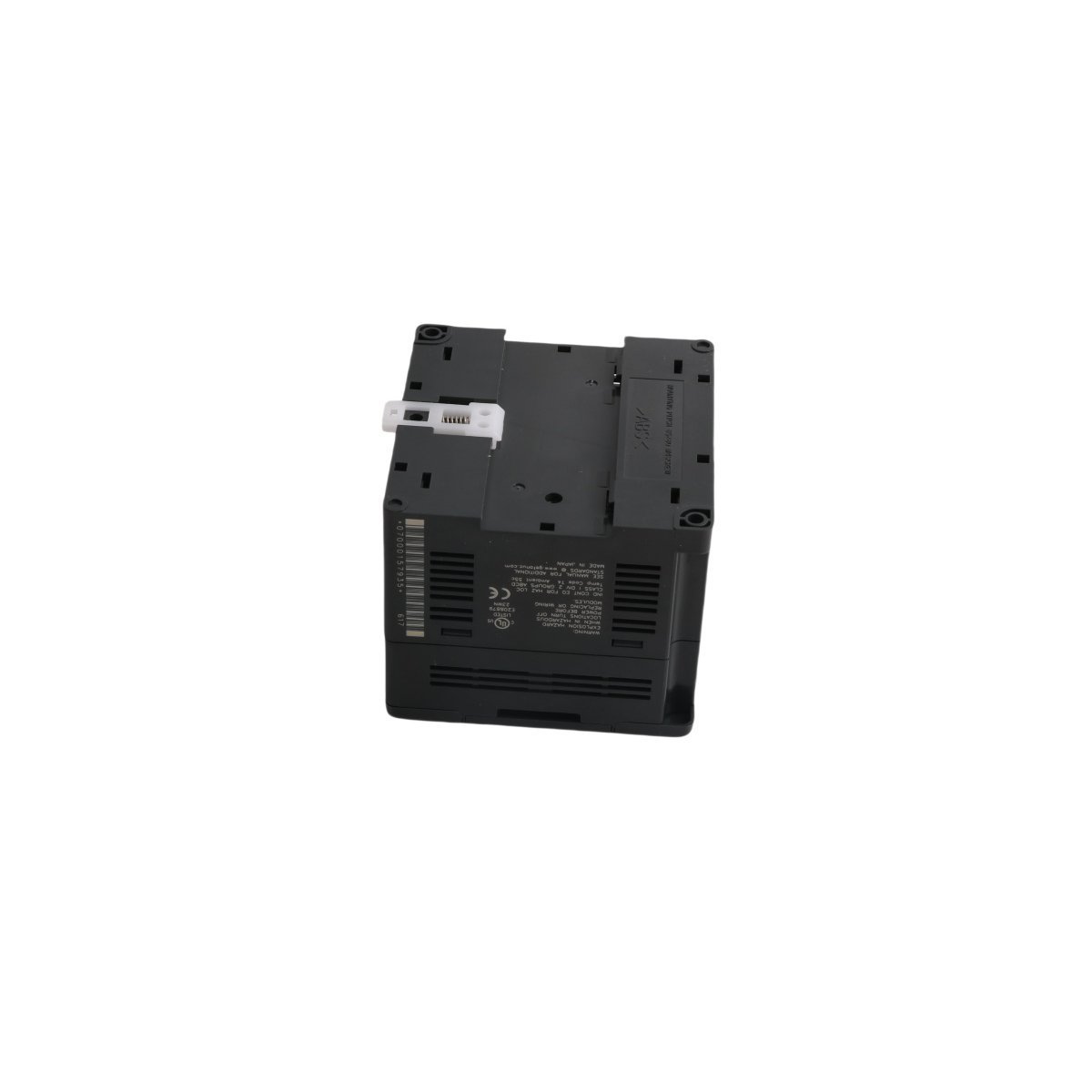

The GE Fanuc IC200UDD104 is a compact VersaMax Micro PLC featuring 8 DC inputs and 6 DC transistor outputs. Equipped with high-speed counters, PWM capabilities, and dual analog potentiometers, this 24V DC controller offers a versatile solution for small-scale industrial automation and motion control.
The GE Fanuc IC200UDD104 belongs to the VersaMax Micro series, functioning as a highly compact yet powerful 14-point Programmable Logic Controller (PLC). This controller effectively manages small-scale automation tasks by integrating discrete I/O and high-speed processing into a single footprint. Designed for reliability, the unit supports sophisticated programming features such as floating-point math, which typically appears only in larger, more expensive systems. Furthermore, the inclusion of non-volatile flash memory ensures that your application remains secure during power cycles.
This specific model utilizes a DC-in, DC-out configuration to provide rapid switching speeds and high durability. The I/O distribution includes:
The outputs employ positive logic switching and maintain strict isolation between the logic circuitry and the field side to prevent electrical interference. Consequently, users should install fast-acting fuses to safeguard the transistor circuits against overcurrent conditions.
The IC200UDD104 excels in motion control and velocity measurement applications due to its integrated high-speed counter (HSC) functions. It supports Type A counters for simple edge counting and Type B counters for complex A-Quad-B encoder inputs. Additionally, the module handles Pulse Width Modulation (PWM) and Pulse Train (PT) operations with a maximum frequency of 5 kHz. These features enable the PLC to interface directly with servo drives and stepper motors, significantly reducing the need for additional specialized modules.
The hardware features a removable terminal strip, which simplifies the wiring process and allows for quick module replacement without disconnecting individual field wires. A physical Run/Stop mode switch provides immediate manual control over the PLC’s operational state. During startup, the system can be configured to load logic from either the internal RAM or the ROM flash memory, providing flexibility for different development and production environments.
