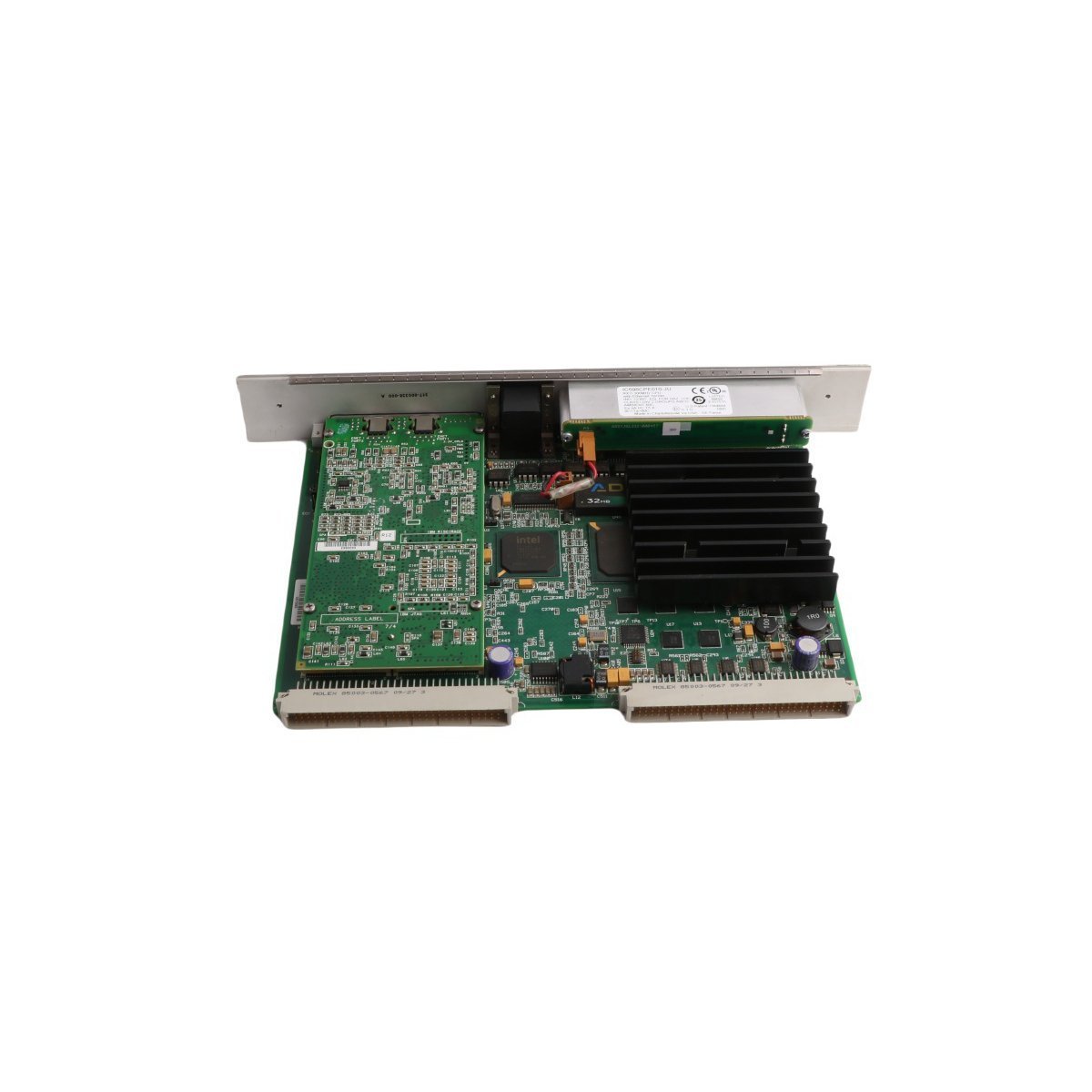

GE Fanuc IC698CPE010 RX7i CPU Module

The GE Fanuc IC698CPE010 is a 300 MHz Intel Celeron CPU module for the PACSystems RX7i platform. It provides 10 MB of RAM, 10 MB of Flash, and dual 10/100 Ethernet ports. This controller supports up to 32K discrete I/O for complex industrial automation.

Request a Quote

The GE Fanuc IC698CPE010 functions as the primary control engine for the PACSystems RX7i series. This high-performance CPU module addresses the needs of large-scale industrial automation projects. It utilizes a single-slot VME64 format for easy installation into existing backplanes. The processor creates a unified control environment for discrete, motion, and process control. By utilizing a 300 MHz Intel Celeron microprocessor, the unit ensures rapid response times for complex logic.

Computational Capacity and Memory Architecture

This module provides significant memory resources to handle extensive data processing tasks. It features 10 MB of battery-backed RAM for dynamic user data. Furthermore, 10 MB of non-volatile flash memory protects critical application code during power loss. The CPU executes Boolean logic at a rate of 0.33 ms per thousand instructions. This speed allows the module to manage up to 512 individual program blocks. Each block supports a maximum size of 128 KB to facilitate modular programming.

Advanced Communication and I/O Scaling

The IC698CPE010 offers versatile connectivity through multiple physical interfaces. Dual 10/100 Mbps Ethernet ports provide high-speed networking for industrial data exchange. These ports support major protocols including Modbus TCP and SRTP. Additionally, three serial ports enable communication via RS-232 and RS-485 standards. The module manages a vast I/O capacity of 32,768 discrete points and 32,768 analog words. It also supports floating-point math for precise industrial calculations.

Primary Technical Specifications

FeatureSpecification Detail
Processor TypeIntel Celeron 300 MHz
Total Memory10 MB User RAM / 10 MB Flash
Discrete I/O Capacity32K Inputs and 32K Outputs
Analog I/O Capacity32K Words (In/Out)
Ethernet SupportDual Ports (10/100 Mbps)
Serial InterfacesRS-232 and RS-485
Configuration ToolProficy Machine Edition
Operating Temperature0°C to 60°C (32°F to 140°F)
