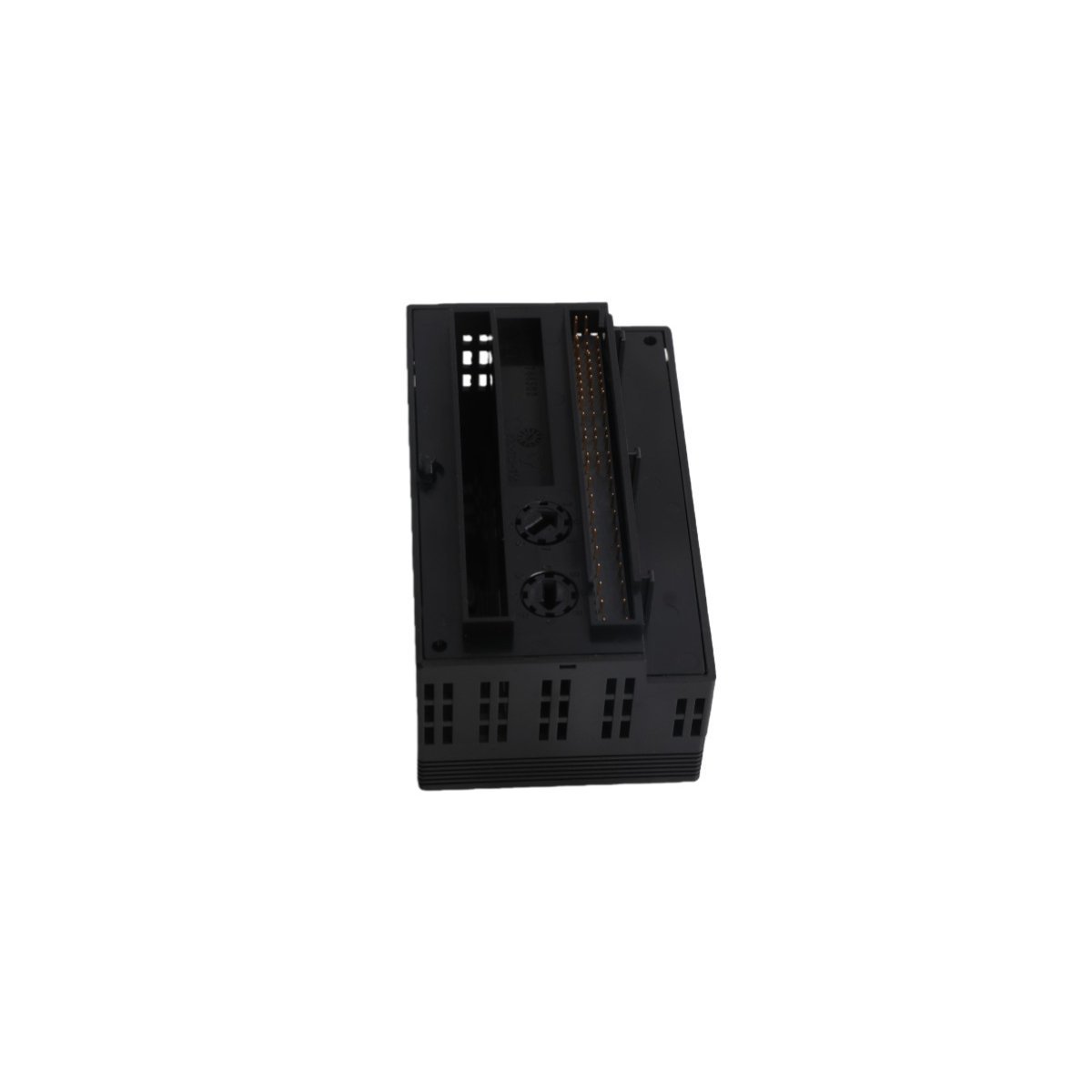

General Electric IC200ALG266F Analog Input Module

The GE IC200ALG266F serves as a high-density interface for the VersaMax I/O system. This module precisely monitors up to 15 separate analog current loops in industrial environments. It translates field signals into digital data for the central controller with high accuracy. Because it supports both 0-20mA and 4-20mA ranges, the unit adapts to various sensor types. The hardware maintains reliable signal processing without needing an external power supply.

Technical Specifications and Operating Ranges

Advanced Fault Protection and Diagnostic Logic

This module prioritizes system uptime through proactive error detection and current limiting. It includes active circuitry to prevent damage if a 24V source contacts an input resistor. In such cases, the module limits the current to a safe 40mA maximum. Furthermore, the unit identifies open wire conditions for 4-20mA loops instantly. If a single channel fails, the remaining 14 channels continue to operate normally. These diagnostic alerts help technicians locate wiring issues before they cause process failures.

Safety Certifications and Hardware Monitoring

The IC200ALG266F carries TUV certification for use in safety-related control applications. The internal hardware constantly monitors the analog-to-digital conversion process for discrepancies. It triggers a fault if the conversion error exceeds a ±6% threshold. This continuous self-test ensures that the data reaching the CPU remains trustworthy. Consequently, the module fits perfectly in critical DCS environments where data integrity is mandatory.

Application and Installation Overview

• Chemical processing and pharmaceutical manufacturing
• Oil and gas pipeline monitoring stations
• High-precision water and wastewater treatment
• Safety-critical HVAC and environmental control systems
