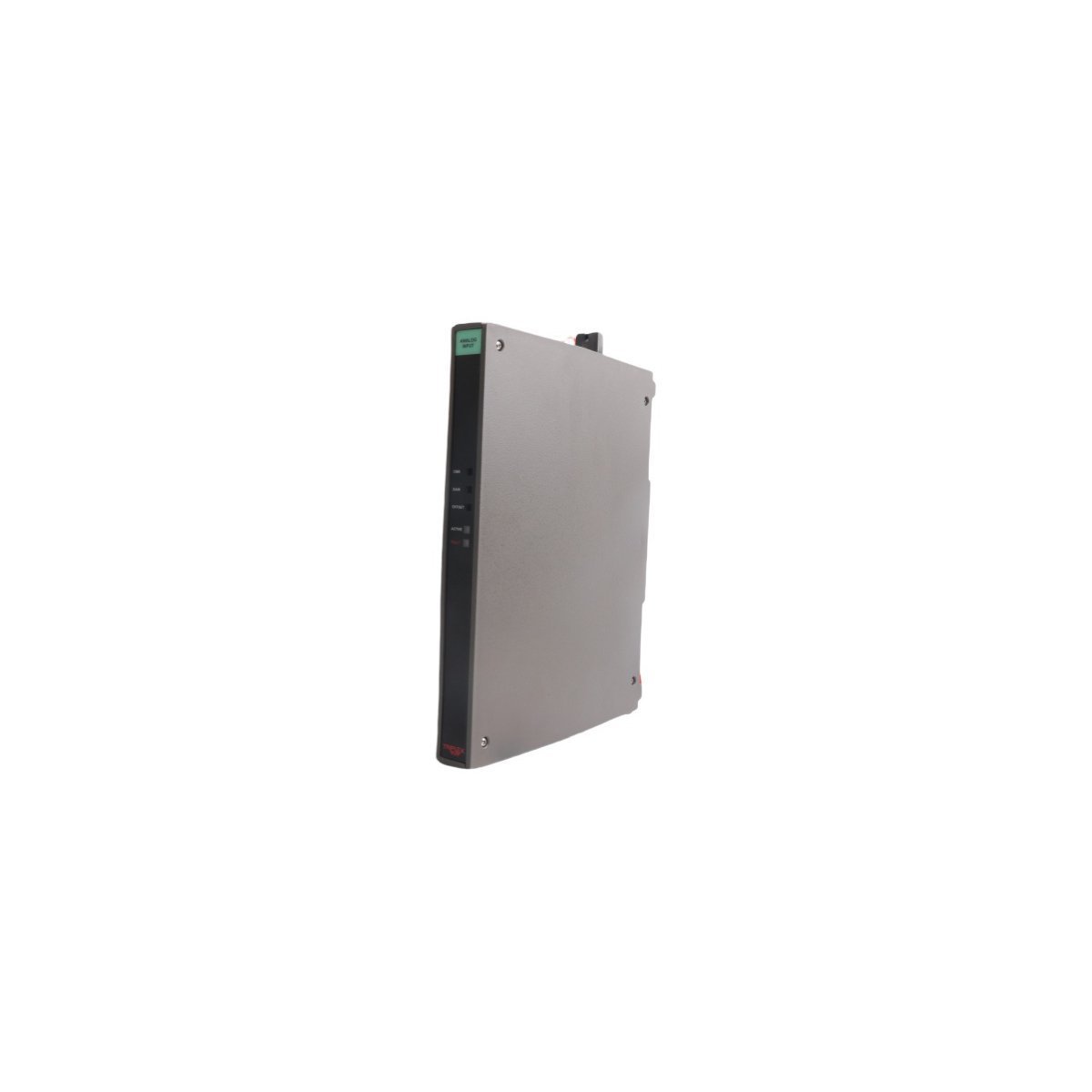

ICS Triplex T3420A Analog Input Module

The T3420A serves as a high-precision interface within the ICS Triplex Regent control system. This module accurately converts continuous physical signals into digital data for the controller. It utilizes a Triple Modular Redundant (TMR) architecture to ensure maximum process uptime. The rugged hardware design withstands electromagnetic interference and extreme thermal shifts in heavy industrial zones.

Core Functional Capabilities

This module specializes in high-speed data acquisition across multiple input channels. It supports various signal types, including standard 4-20mA loops and 0-10V voltage inputs. The onboard analog-to-digital converters provide high resolution for sensitive process measurements. Internal diagnostic routines constantly monitor channel health to prevent signal drift.

Technical Specifications and Dimensions

Key Technical Characteristics

• Triple Modular Redundancy (TMR) ensures fault-tolerant operation for safety-critical tasks.
• The hardware supports hot-swapping to allow maintenance without interrupting the primary process.
• Galvanic isolation protects the internal logic from field-side electrical surges.
• Advanced filtering algorithms eliminate high-frequency noise from raw sensor signals.
• Native compatibility with Modbus RTU protocols simplifies cross-platform data exchange.
• The module integrates with Regent software for rapid calibration and scaling.

Industrial Applications

The T3420A is suitable for Emergency Shutdown (ESD) and Fire and Gas (F&G) systems. It frequently monitors pressure, temperature, and flow rates in petrochemical refineries. Power generation facilities use this module to track turbine performance and cooling parameters. Its high reliability makes it a standard choice for subsea and offshore control environments.
