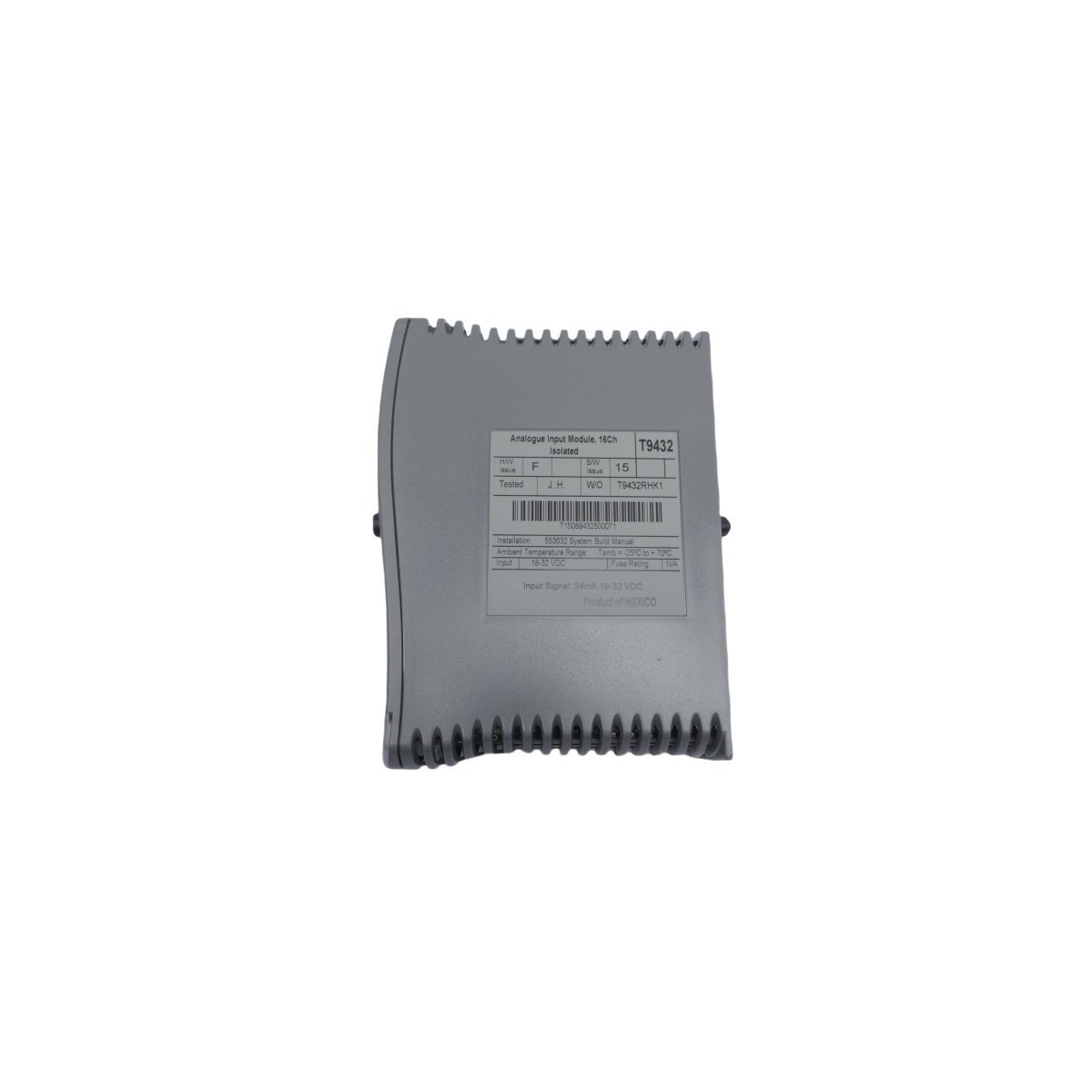

ICS Triplex T9432 Analog Input Module

The T9432 module provides a high-density interface for current-based field sensors within the ICS Triplex AADvance system. It contains 16 isolated channels designed for precise data acquisition in safety-critical environments. Each channel converts field signals into digital data for the main processor. Furthermore, the unit delivers real-time status updates to ensure comprehensive system awareness.

Technical Parameters and Dimensions

Signal Monitoring and Configuration

This module offers exceptional flexibility through its software-defined input settings. Each input supports five programmable voltage bands for detailed signal analysis. Users can adjust eight switching thresholds via the AADvance Workbench software. These settings facilitate advanced line monitoring to detect wiring faults or sensor failures. Additionally, integrated hysteresis logic prevents rapid signal fluctuations from triggering false alarms.

Diagnostic Features and System Health

Reliability remains a core focus of the T9432 hardware design. The front panel features several LEDs for immediate local status monitoring. These indicators show the health of both the entire module and specific channels. Operators can also map these diagnostic variables directly to the application controller. Consequently, the system maintains high visibility over field device integrity at all times.

Industrial Process Applications

The T9432 is ideal for monitoring 4-20mA loops in various industrial sectors. It performs effectively in oil and gas refineries for pressure and temperature tracking. Power plants utilize these isolated inputs to maintain electrical separation between field devices. Because of its rugged design, the module thrives in environments with high electromagnetic interference. It provides the accuracy required for both control and safety instrumented functions.

Key Performance Benefits

• Sixteen isolated channels prevent ground loop interference between sensors.
• Support for up to 24 mA accommodates over-range signal conditions.
• Extensive internal diagnostics reduce the time required for troubleshooting.
• The compact form factor maximizes available space within the PLC cabinet.
• Seamless integration with Workbench software simplifies scaling and calibration tasks.
