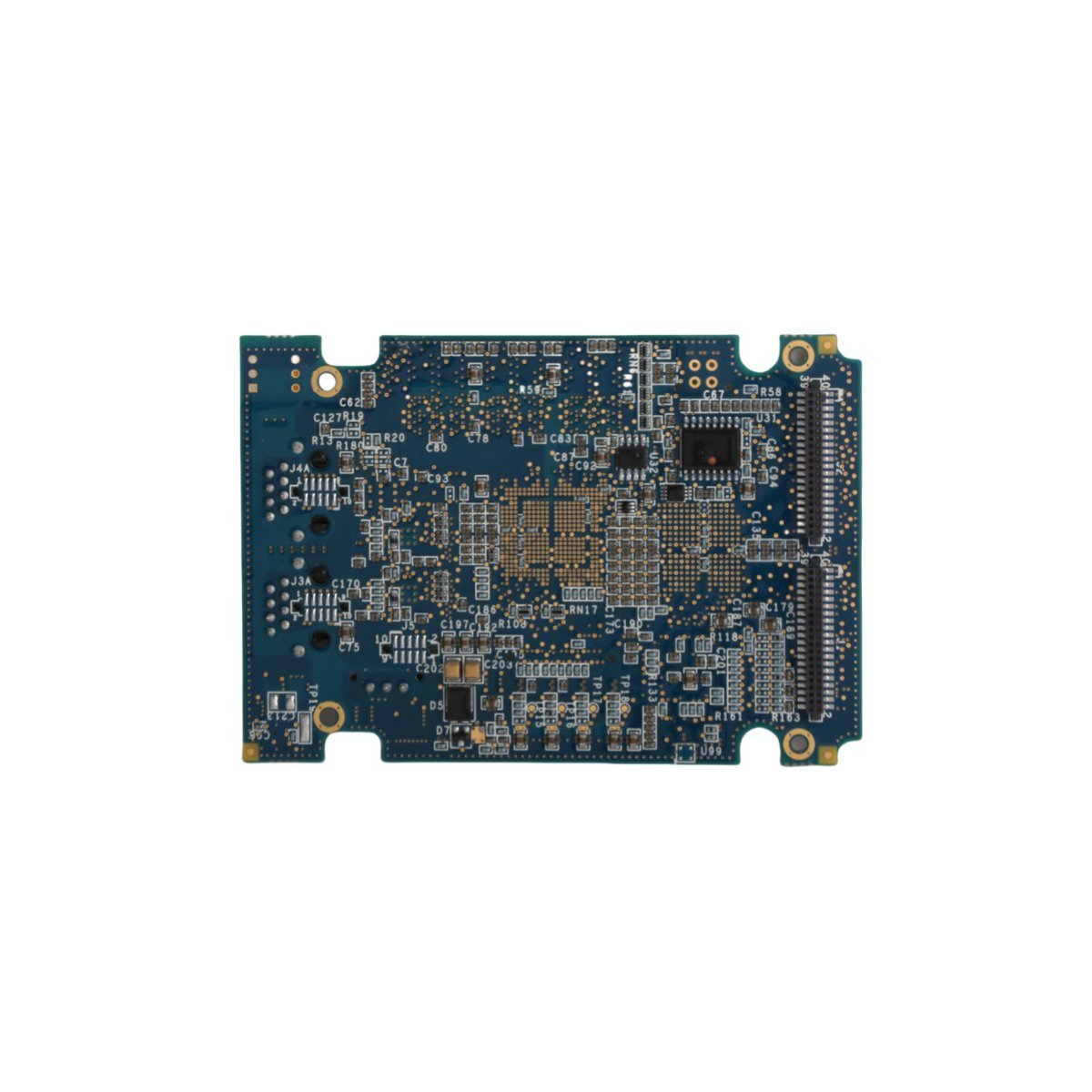

General Electric IS210WETAH1A Analog Input Module

The GE IS210WETAH1A is a high-performance Analog Input Module designed for Mark VIe DCS environments. It features a 100 MHz 486 processor, 8 MB of DRAM, and integrated Ethernet connectivity for precise industrial turbine control and monitoring.

The GE IS210WETAH1A serves as a critical interface component within the Mark VIe Distributed Control System (DCS). This module facilitates high-speed data acquisition by processing analog signals for industrial turbine management. It features a robust hardware architecture designed for real-time application control and seamless system integration.

Technical Hardware Specifications

Component	Technical Detail
Processor	DX4-100 486 CPU
Core Clock Speed	100 MHz
System Memory	8 MB EDO Non-Parity DRAM
Cache Level 1	16 KB Internal
Cache Level 2	128 KB Managed by PCI Controller
Bus Interface	PCI Bus at 33 MHz
Logic Interface	PC Compatible with RTC

Operational Interface and Connectivity

Four dedicated function LEDs for operational status
Eight diagnostic status LEDs for error reporting
Four ISBus LEDs embedded in the communication ports
One 10BaseT Ethernet port for network connectivity
Dual COM connectors for peripheral communication
Integrated reset switch for manual hardware initialization

Functional Application and Design

GE engineered the IS210WETAH1A for the Application Control Layer (ACL) of the Mark VI series. It manages input-output transitions and memory configuration transfers via a specialized PCI controller. The unit includes dual-ported RAM on the local bus to ensure rapid data exchange. Its mechanical design features a wide faceplate with secure screw connectors to maintain stability in high-vibration environments.
