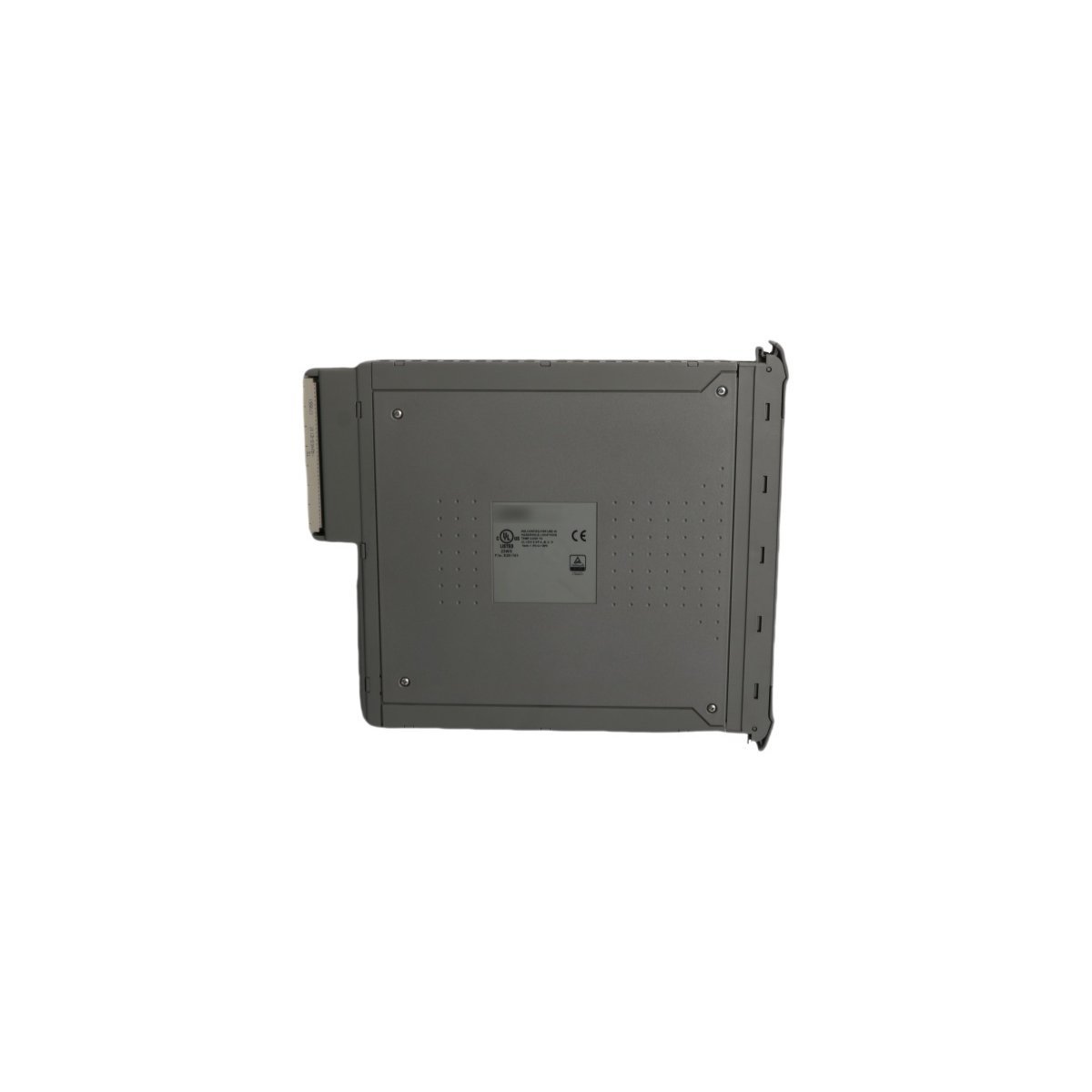

ICS Triplex T8431C Trusted TMR 24 Vdc Analog Input Module Safety Instrumented System

The ICS Triplex T8431C is a 24 Vdc Trusted TMR Analog Input Module designed for SIL 3 safety-critical applications. Featuring Triple Modular Redundant architecture, this 1.18 kg module provides unmatched fault tolerance and high-precision data acquisition for Emergency Shutdown (ESD) systems. Built by Rockwell Automation in the USA, it ensures maximum plant safety and uptime for the oil, gas, and chemical industries.

Product Overview

The ICS Triplex T8431C is a high-integrity Analog Input Module designed for the Trusted Triple Modular Redundant (TMR) System. As a core component of Rockwell Automation’s safety-critical PLC lineup, the T8431C is engineered to provide the highest levels of safety and availability. It interfaces with field sensors—such as transmitters for pressure, temperature, and level—converting their 24 Vdc signals into digital data. The module’s TMR architecture means it performs internal voting across three independent sub-modules to ensure that a single component failure cannot result in a false reading or a system trip. This makes the T8431C a standard choice for Emergency Shutdown (ESD) and Fire and Gas (F&G) systems.

Key Functional Features

Triple Modular Redundancy (TMR): The module contains three identical processing slices that perform a “two-out-of-three” (2oo3) vote on all input data. Consequently, it eliminates common-mode failures and ensures the highest Safety Integrity Level (SIL 3) compliance.
Comprehensive Self-Diagnostics: The T8431C continuously executes internal “health checks” on its circuitry. Therefore, it can identify latent faults in the input channels or internal hardware before they affect process safety.
Active Fault Tolerance: Because of its redundant design, the module can remain fully operational even if one of its internal paths fails. This allows for “repair-at-runtime” capabilities, significantly increasing plant uptime.
24 Vdc Field Power Management: The module is designed to interface with standard 24 Vdc field loops. In doing so, it provides stable power to field transmitters while monitoring the current or voltage with extreme precision.
Galvanic Signal Isolation: It features robust isolation between the field-side inputs and the system-side logic. As a result, the main controller remains protected from electrical surges, lightning strikes, or ground loops originating in the field.
Compact High-Density Design: Despite its complex internal redundancy, the unit weighs only 1.18 kg and fits into a standard Trusted chassis. This allows for a high count of safety-critical inputs within a limited cabinet footprint.

Industrial Implementation

The T8431C is specifically intended for environments where the cost of failure is catastrophic. For instance, offshore oil platforms use this module to monitor gas detectors and pressure sensors for emergency shutdown triggers. Similarly, nuclear power plants and large-scale chemical reactors rely on the T8431C for critical process interlocking. Because it is part of the Trusted TMR family, it is frequently found in subsea control systems and refinery safety instrumented systems (SIS) where continuous operation and high-reliability data acquisition are non-negotiable.
