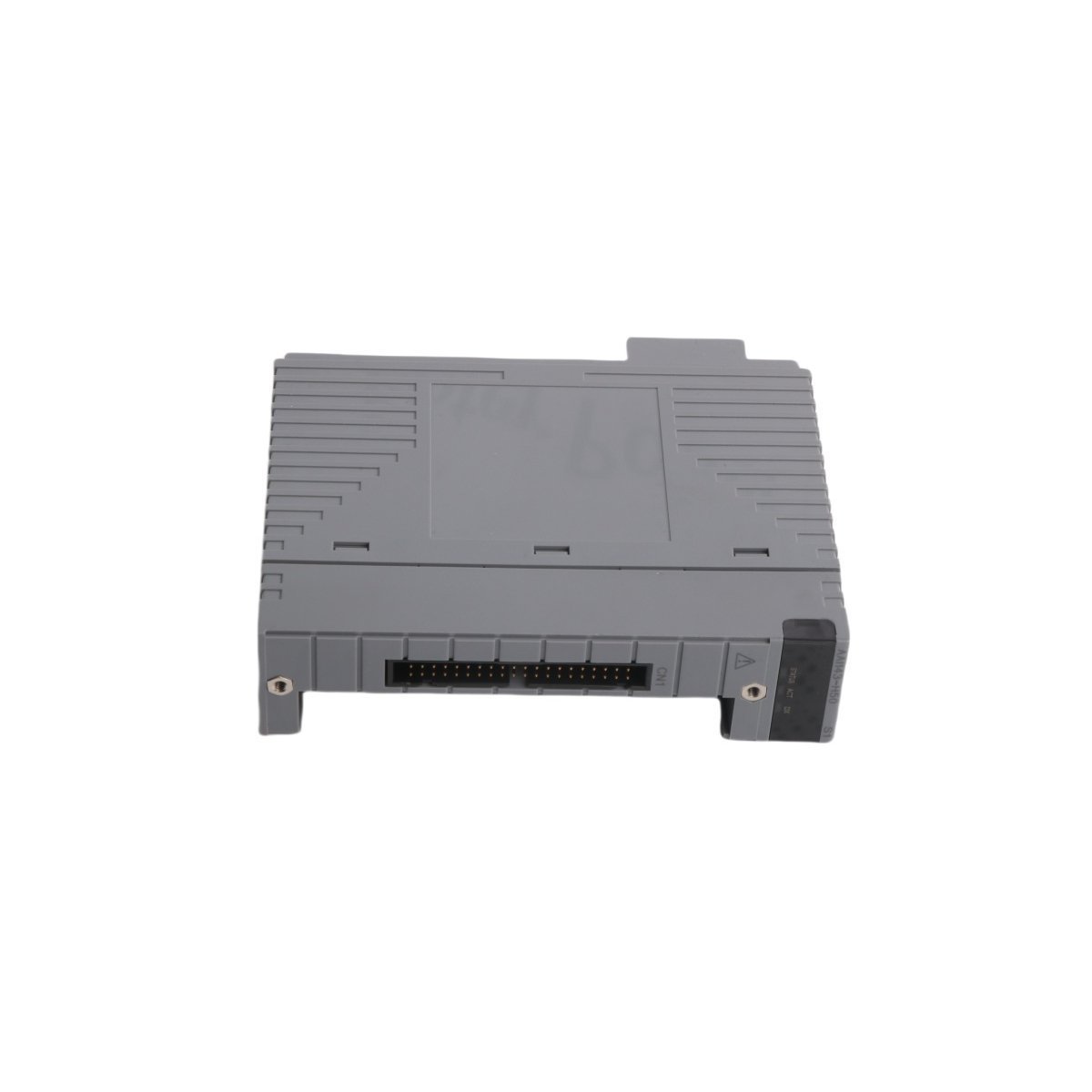

Yokogawa AAI143-H50 Analog Input Module

The Yokogawa AAI143-H50 provides high-density analog signal acquisition for the CENTUM VP control system. This module processes 4 to 20 mA current signals from 16 independent field devices. It features integrated HART communication for digital device management. This dual-functionality allows operators to monitor process variables and device health simultaneously. Consequently, the hardware serves as a vital component for modern predictive maintenance strategies.

Operational Applications and Safety

This module excels in mission-critical environments like chemical plants and power generation facilities. It precisely monitors pressure, flow, and temperature transmitters across the facility. Because it carries SIL2 safety certification, it supports high-integrity process loops. The module also complies with ATEX and IECEx standards for hazardous area use. Its robust isolation protects the system from unpredictable field-side electrical surges.

Essential Technical Specifications

The AAI143-H50 balances high-speed data sampling with exceptional measurement accuracy. The compact design ensures efficient use of cabinet space in dense installations.

• Module Type: Analog Input with HART support
• Number of Channels: 16 isolated channels
• Input Signal Range: 4 to 20 mA DC
• Accuracy: ±0.1% of full scale
• System Series: CENTUM VP / FIO
• HART Version: Supports HART 5, 6, and 7
• Hot-Swap: Yes, allows replacement during active operation
• Voltage Rating: 24V DC internal power
• Weight: 0.24 kg
• Operating Temperature: -20°C to +70°C

Advanced Diagnostics and Integration

The hardware offers comprehensive self-diagnostics to detect internal failures immediately. This feature significantly reduces troubleshooting time during plant outages. Furthermore, the hot-swap capability prevents process interruptions during module maintenance. The module integrates seamlessly with Yokogawa’s PRM (Plant Resource Manager) software. This connection enables remote configuration of field instruments. By combining reliability with digital intelligence, the AAI143-H50 ensures stable long-term operation.
