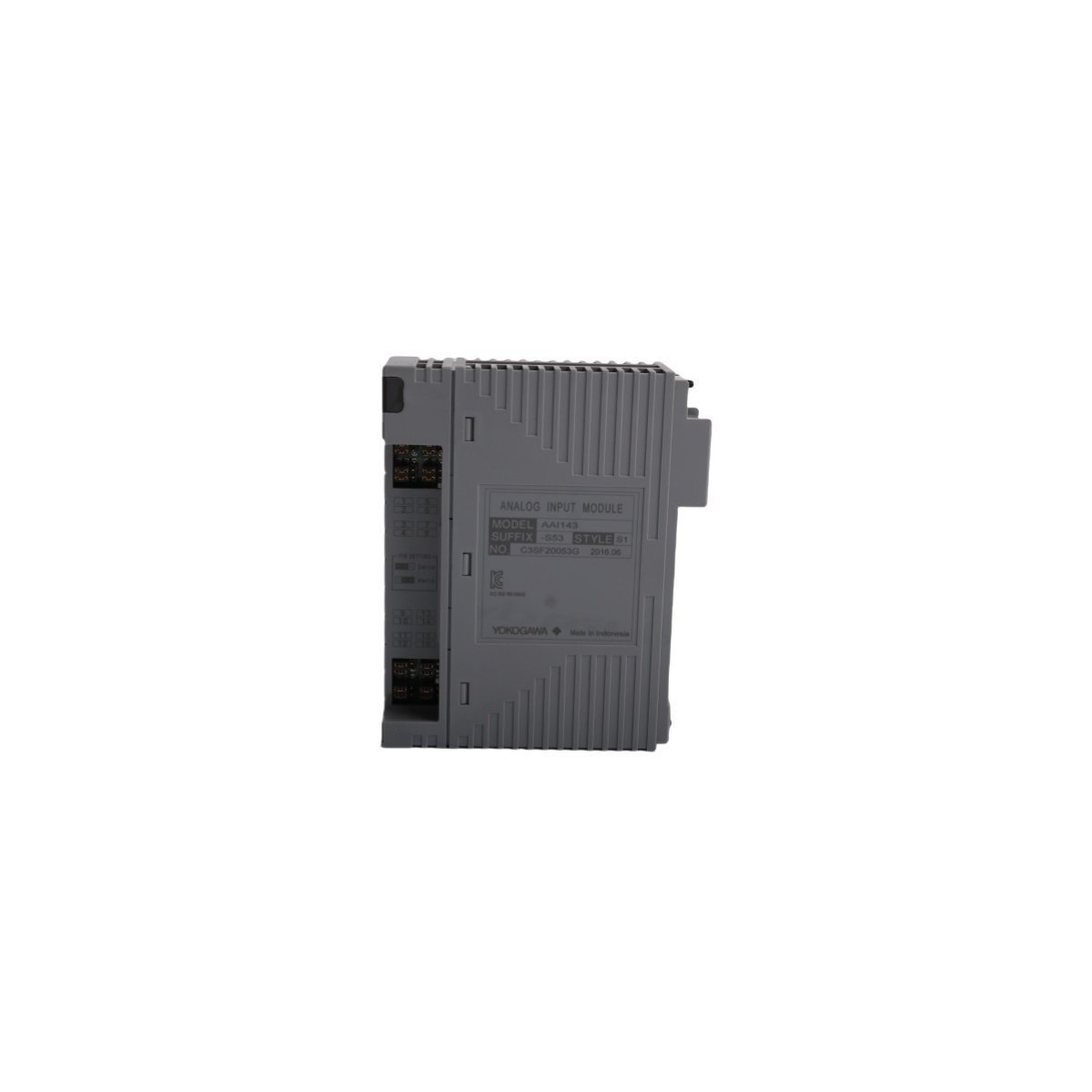

Yokogawa AAI143-S53 S1 Analog Input Module

Technical Overview

The Yokogawa AAI143-S53 S1 functions as a high-performance, 16-channel isolated analog input module designed for the FIO (Field network I/O) system within CENTUM VP and CS 3000 control environments. This module actively converts 4 to 20 mA current signals from field transmitters into digital data for the controller’s logic processing. By utilizing a high-density 16-channel architecture, the AAI143-S53 ensures that critical process variables such as pressure, temperature, and flow are monitored with extreme precision. In essence, it acts as the primary sensory gateway for the DCS, thereby providing the high-resolution signal conversion required for stable and deterministic process control. Furthermore, the “S53” designation indicates a specific standard coating and robust electrical specification designed for general industrial use.

Key Features and Specifications

• Manufacturer: Yokogawa
• Series: CENTUM VP / CS 3000 (FIO System)
• Model Identifier: AAI143-S53 S1
• Input Type: 16-Channel Isolated Analog Input (4 to 20 mA)
• Signal Type: 2-wire or 4-wire transmitter support
• Isolation: 1500 V AC withstand voltage between field and internal logic
• Accuracy: ±0.1% of full scale
• Revision: S1 (Standard hardware revision)
• Environmental Protection: Includes G3 conformal coating for harsh atmosphere resistance
• Update Cycle: Fast data refresh rate compatible with high-speed control loops

Application and Reliability

Control engineers prioritize the Yokogawa AAI143-S53 S1 for mission-critical automation sectors such as chemical processing, power generation, and pharmaceutical manufacturing. The module provides the ruggedized performance necessary to endure the vibration and thermal fluctuations typical of plant-side control rooms. In conjunction with its 16-channel capacity, the AAI143-S53 S1 facilitates a highly efficient use of cabinet space; thereby, it reduces the overall hardware footprint of the DCS. Along the same lines, the module complies with global safety and EMC standards, ensuring its suitability for high-stakes process interlocks. Beyond this compliance, the module also supports various terminal configurations, including pressure-clamp and KS-cable interfaces.

Because the module features a standardized FIO footprint, it simplifies the hardware installation process and ensures seamless integration with standard Yokogawa terminal blocks like the STD4A. Correspondingly, this modular approach allows for the creation of flexible I/O stations that can scale as the facility’s monitoring requirements grow. Ultimately, the AAI143-S53 S1 delivers the stable 4-20 mA sensing and high-precision data processing required to support complex PID control loops, thus upholding the operational integrity of global Yokogawa-based control systems. In summary, this analog input module serves as a reliable and high-performance cornerstone for any decentralized automation architecture.
