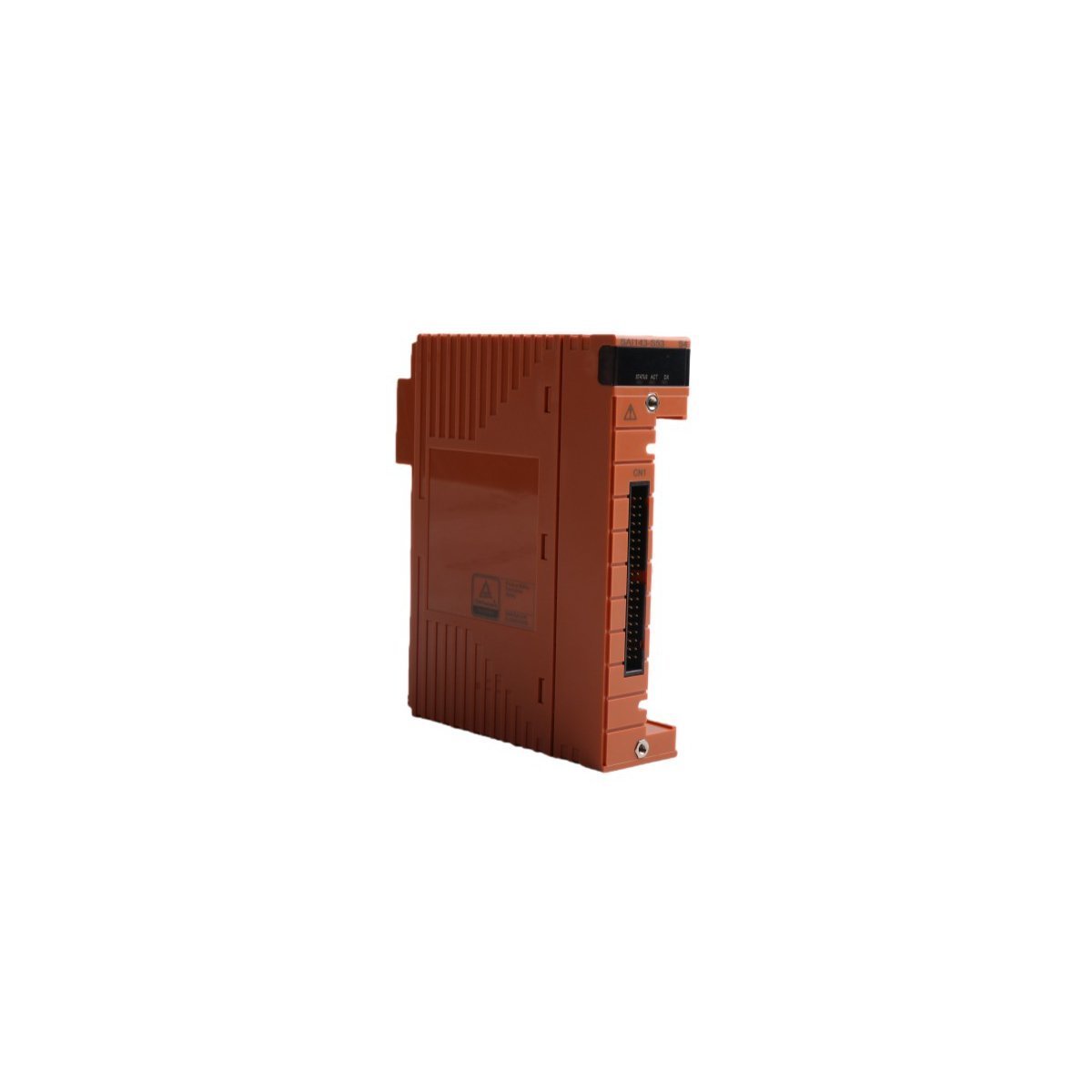

Yokogawa SAI143-S53 Analog Input Module

Technical Overview

The Yokogawa SAI143-S53 serves as a high-performance, 16-channel analog input module specifically engineered for the ProSafe-RS safety instrumented system and Centum VP architectures. This module primarily interfaces with field transmitters to acquire standard 4-20 mA current signals. By implementing rigorous channel-to-channel isolation, the SAI143-S53 prevents ground loops and mitigates electromagnetic interference (EMI), ensuring that signal acquisition remains precise even in electrically noisy industrial environments.

Redundancy and Reliability

Process safety depends on continuous visibility; therefore, the SAI143-S53 supports dual-redundant configurations. When installers mount two modules in a redundant pair, the system ensures that a single hardware fault does not lead to a loss of process data. This capability makes it a fundamental component for safety-critical loops, including Emergency Shutdown (ESD) and Fire and Gas (F&G) systems. Furthermore, the module undergoes continuous self-diagnostics to verify its internal health, providing immediate alerts if it detects a deviation from normal operating parameters.

Intelligent Device Integration

Beyond standard signal conversion, the SAI143-S53 supports HART (Highway Addressable Remote Transducer) digital communication. This integration allows the module to pass smart instrument data—such as secondary variables, device status, and configuration parameters—to the Asset Management System (AMS). This digital transparency enables predictive maintenance strategies, as engineers can diagnose field instrument health remotely without needing to access the physical device in the field.

Technical Specifications

• Manufacturer: Yokogawa
• Model Number: SAI143-S53
• Input Channels: 16 Channels, Isolated
• Input Signal Range: 4 to 20 mA DC
• Redundancy: Dual-redundant capable
• Digital Communication: Supports HART protocol
• Weight: 0.3 kg
• Dimensions: 3.3cm x 10.7cm x 13cm

Connection and Installation

The module offers diverse wiring options to simplify cabinet assembly and field integration. It accommodates various termination methods, including:

• Pressure clamp terminals for direct field wiring.
• KS1 interface cables for connection to terminal boards.
• MIL connector cables for high-density panel integration.

Industrial Applications

Because it delivers SIL-rated reliability and smart diagnostics, the SAI143-S53 is widely deployed in:

• Chemical and Petrochemical: Monitoring reactor pressure and temperature.
• Oil and Gas: Integrating subsea transmitters and wellhead monitoring.
• Power Generation: Acquiring critical boiler and turbine sensor data.
• Water Treatment: Managing flow and level measurements in automated processes.
