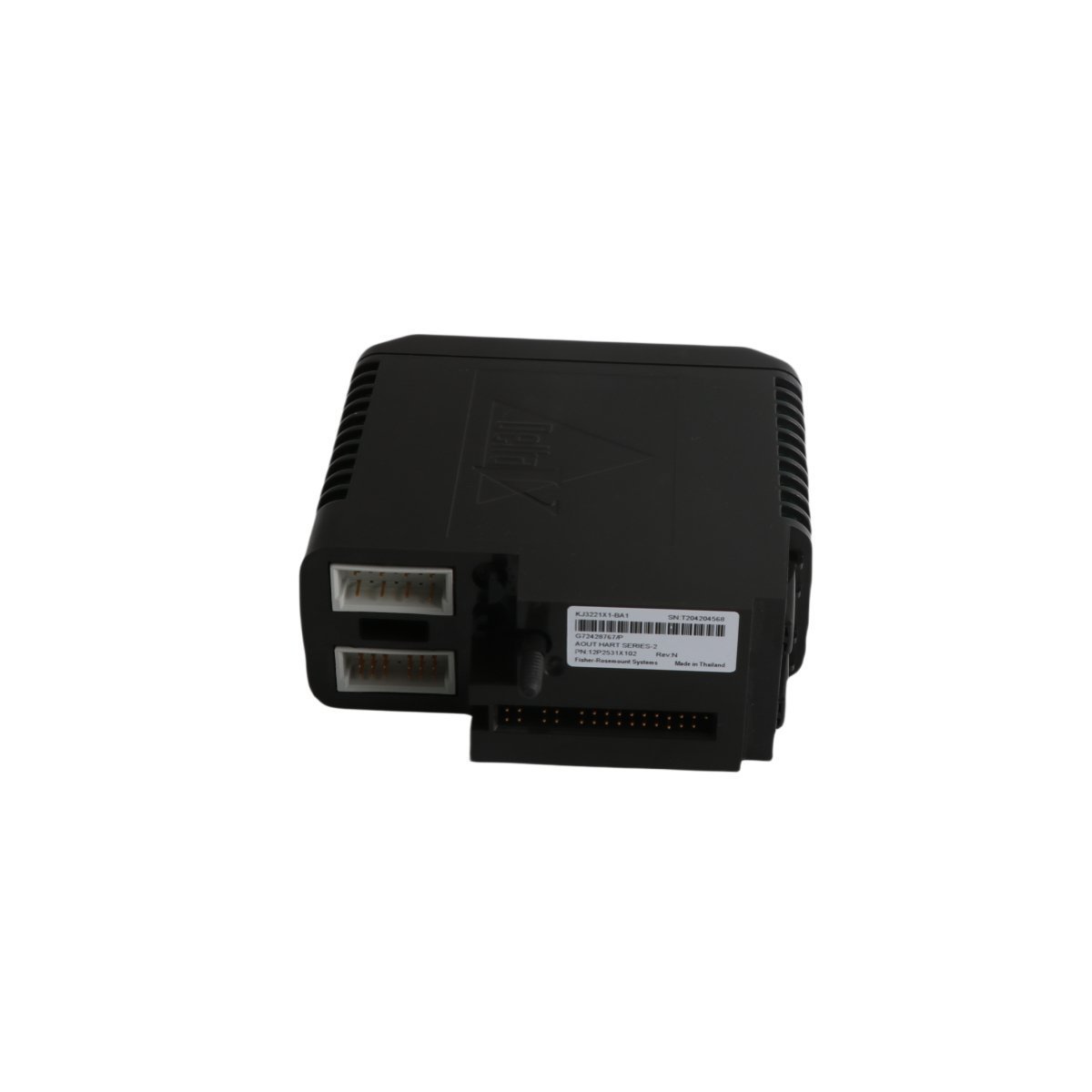

Emerson KJ3222X1-BA1 12P2532X112 VE4003S2B2 Analog Input Module

The Emerson KJ3222X1-BA1 is an 8-channel 4-20 mA analog input module for DeltaV M-series systems. It features HART communication support, fused termination, and advanced loop diagnostics. This module provides precise data acquisition for critical industrial process control.

The KJ3222X1-BA1 is a specialized 8-channel analog input module for the DeltaV M-series I/O subsystem. It processes standard 4-20 mA signals from field transmitters into digital data for the controller. This module supports HART communication, which allows for advanced instrument configuration and diagnostic data retrieval. By integrating these capabilities, the hardware improves the visibility of field asset health. Furthermore, its modular design ensures easy replacement and scaling within the DeltaV Distributed Control System (DCS).

Technical Specifications

Feature	Details
Brand	Emerson (DeltaV)
Model Number	KJ3222X1-BA1
Order Number	12P2532X112 / VE4003S2B2
Module Type	8-Channel Analog Input (4-20 mA)
System Compatibility	DeltaV M-series
Power Requirements	24 VDC Isolated
Heat Dissipation	2.4 Watts Maximum
Input Impedance	250 Ohms

Key Technical Characteristics

Enhanced Diagnostic Detection: On-board intelligence identifies open circuits and shorted loops to prevent process downtime.
HART Pass-Through Support: The module enables remote calibration and monitoring of smart field instruments via HART protocol.
Rugged Environment Suitability: Emerson designed this hardware to withstand the temperature fluctuations common in industrial cabinets.
Fused Termination Block: The VE4003S2B2 termination component provides essential circuit protection for every individual channel.
Rapid Data Acquisition: High-speed signal processing ensures the DCS receives real-time updates for critical control loops.
Hot-Swappable Design: Maintenance teams can replace modules without powering down the entire I/O subsystem.
Compact Physical Footprint: The vertical mounting style optimizes rail space in high-density control room installations.

Industrial Applications

Process industries rely on the KJ3222X1-BA1 for demanding automation tasks in oil and gas refineries. It performs exceptionally well when monitoring pressure transmitters and flow meters in chemical processing plants. Because it integrates with DeltaV diagnostics, it serves as a core component for predictive maintenance strategies. Additionally, power generation facilities use this module to track boiler and turbine parameters with high precision. Its legacy as a reliable DCS component makes it vital for sustaining older automation infrastructures.
