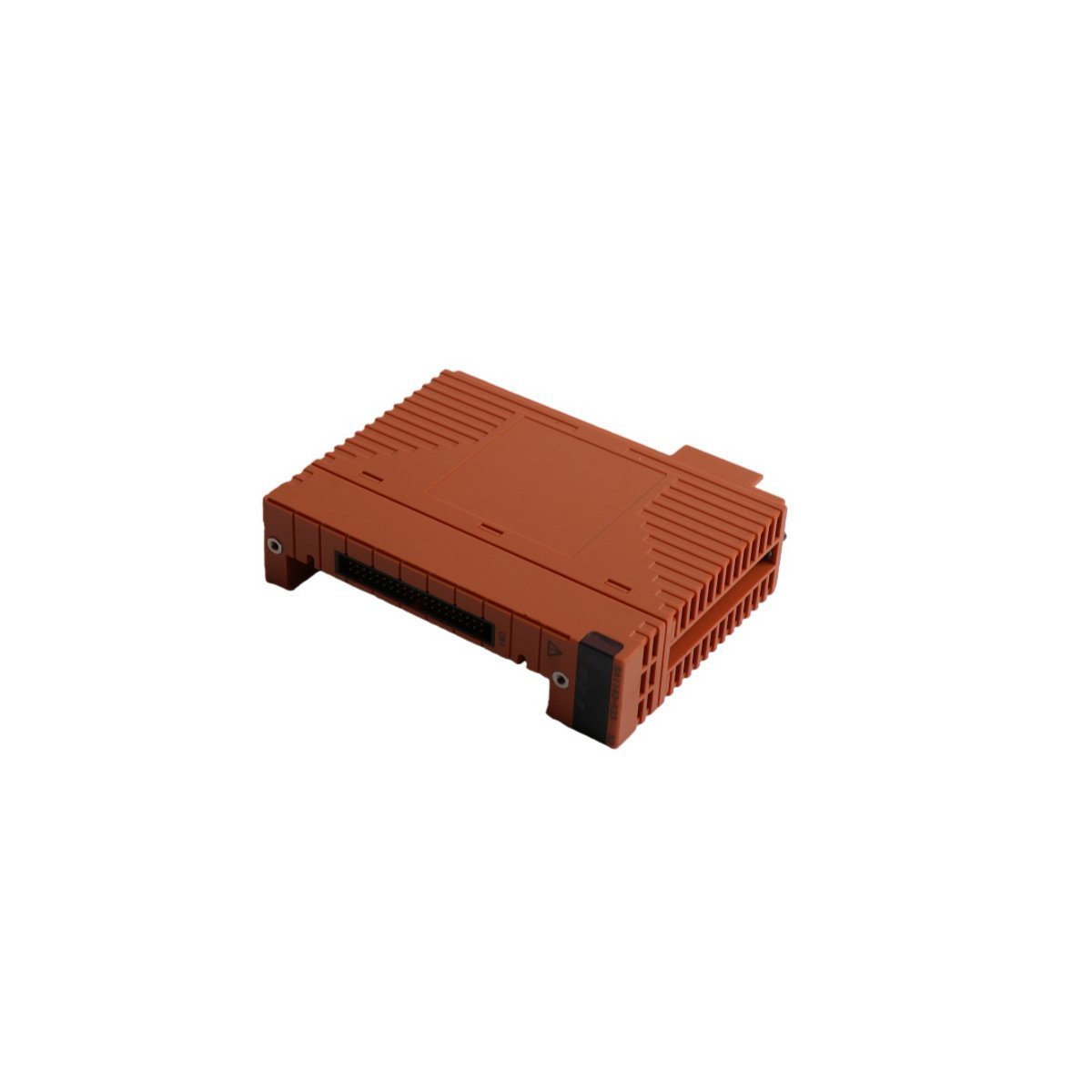

Yokogawa SAI143-S33 Analog Input Module Centum VP

High-Integrity Analog Data Acquisition

The Yokogawa SAI143-S33 serves as a high-performance, 16-channel analog input module designed specifically for the Centum VP Distributed Control System (DCS). This module specializes in capturing 4-20 mA current loop signals from field transmitters, converting them into precise digital data for the system’s control processors. Because it supports both 2-wire and 4-wire transmitter configurations, it offers engineers significant flexibility when integrating diverse sensor types. Furthermore, the SAI143-S33 provides integrated transmitter power, which simplifies cabinet wiring by eliminating the need for external bulk power supplies for field loops.

Technical Specifications and Performance Data

• Manufacturer: Yokogawa
• Model Identification: SAI143-S33
• Module Category: Analog Input Module (Current Input)
• Input Channels: 16 Channels, Isolated
• Signal Range: 4 to 20 mA (supports permissible range of 0 to 25 mA)
• Accuracy: ±16 µA within the 1–23 mA operational range
• Data Refresh Rate: 40 ms for high-speed process response
• Transmitter Power Supply: 16.15 V to 26.4 V (with 25 mA current limit)
• Dielectric Strength: 1.5 kV AC (Input-to-System isolation)
• Temperature Drift: ±16 µA per 10°C change
• Physical Weight: 0.3 kg
• Dimensions: 3.3 cm x 10.7 cm x 13 cm

Advanced Safety and Maintenance Features

Plant operators rely on the SAI143-S33 because it incorporates advanced diagnostic functions suitable for safety-related applications, including Fire and Gas (F&G) detection systems. Specifically, the module features an integrated power ON/OFF function for each transmitter, allowing for remote resets of field instruments without manual intervention. Moreover, the robust electrical isolation ensures that field-side transients do not propagate to the sensitive DCS backplane. Since the module is compatible with pressure clamp terminals and MIL-standard cables, it easily adapts to various wiring philosophies. Additionally, the low temperature drift ensures that measurement accuracy remains stable even in non-climate-controlled remote instrument enclosures.

Key Industrial Use Cases

• Oil and Gas Processing: Precise monitoring of pressure and temperature transmitters in refining units.
• Fire and Gas Systems: Acquiring signals from flame and gas detectors with the ability to remotely reset tripped sensors.
• Chemical Plants: Managing analog feedback for flow control loops and reactor level monitoring.
• Power Generation: Integrating boiler and turbine feedback signals into the centralized DCS architecture.
