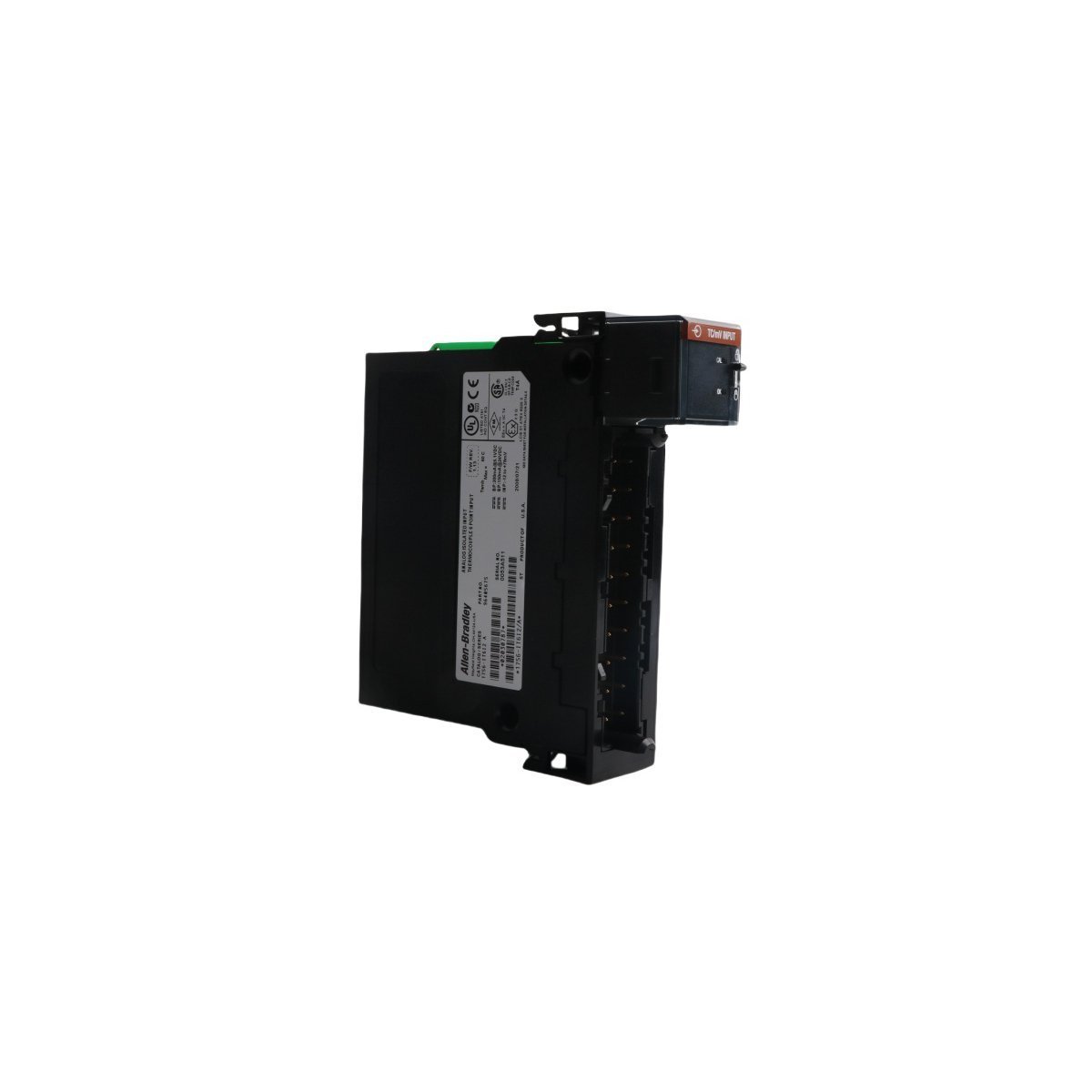

Allen-Bradley 1756-IT6I2 ControlLogix Analog Input Module

The Allen-Bradley 1756-IT6I2 provides advanced thermal sensing capabilities for the ControlLogix platform. This module features six individually isolated channels to eliminate ground loop interference between sensors. It primarily supports diverse thermocouple types including B, E, J, K, R, S, T, and N. Furthermore, the hardware accommodates specialized C, D, and L (TXK/XK) linearizations for niche industrial processes. Two onboard cold junction compensation (CJC) inputs ensure high measurement accuracy across varying ambient conditions. Consequently, this module delivers reliable temperature data for critical process control loops.

Technical Performance and Resolution

This analog interface utilizes a 16-bit converter to achieve exceptional signal granularity. It offers a resolution of 1.4 microvolts per bit within the 78 mV range. Moreover, the unit provides a finer 0.7 microvolt resolution for signals under 30 mV. High input impedance exceeding 10 MOhms prevents signal loading from long sensor wire runs. The module also features robust overvoltage protection up to 120V AC/DC on every channel. Therefore, the hardware remains resilient during accidental wiring faults or electrical surges.

Advanced Diagnostics and Alarming

The 1756-IT6I2 incorporates sophisticated software tools for real-time system health monitoring. It automatically detects open-circuit conditions to prevent faulty logic execution. Additionally, the module supports digital filtering and rate-of-change alarms for sensitive process variables. Multiple data formats, such as floating-point and integer, simplify controller integration. Users can configure process alarms to trigger immediate responses to temperature deviations. These diagnostic features minimize troubleshooting time in complex manufacturing environments.

Seamless System Integration

This module fits into any standard ControlLogix chassis for local or remote I/O configurations. It communicates across the backplane using Producer/Consumer technology for efficient data broadcasting. Furthermore, the isolated architecture allows for mixing different sensor types within a single slot. This flexibility reduces the need for multiple specialized modules in smaller systems. The 1756-IT6I2 remains an active and vital component for modern automation and safety-instrumented systems.

Functional Specifications

• Input Channels: 6 Isolated Thermocouple / 2 CJC
• Resolution: 16-bit
• Conversion Type: Sigma-Delta
• Input Ranges: -12 to 30 mV / -12 to 78 mV
• Common Mode Rejection: 160 dB
• Normal Mode Rejection: 60 dB at 50/60 Hz
• Power Dissipation: 3.5 Watts maximum
• Required Terminal Block: 1756-TBNH or 1756-TBSH
