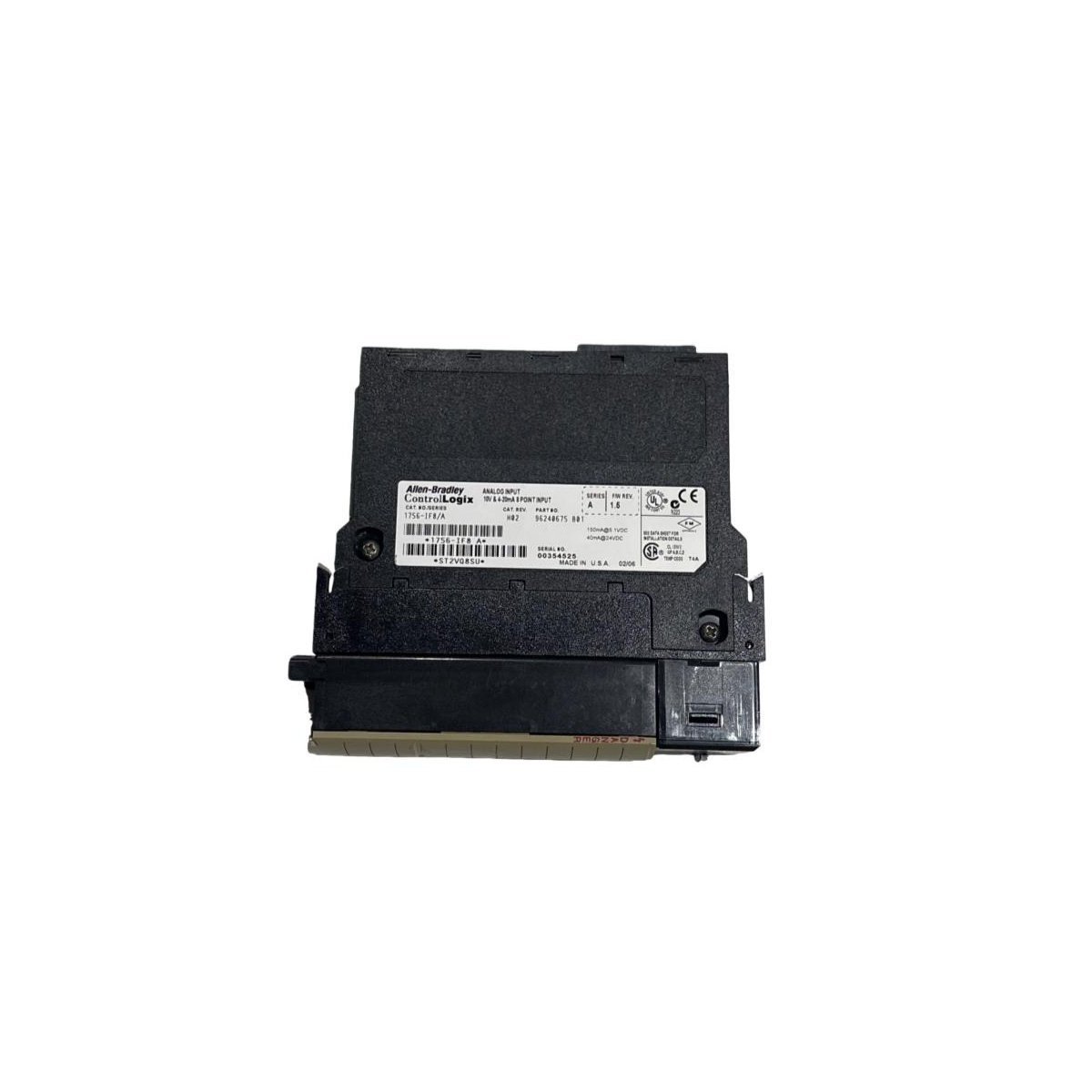

Allen-Bradley 1756-IF8 I/O Module

The Allen-Bradley 1756-IF8 serves as a versatile analog interface for the ControlLogix platform. This module precisely translates continuous field signals into digital data for the processor. It features eight voltage or current input channels to monitor critical industrial variables. Consequently, engineers use this component to track temperature, pressure, and flow rates accurately. The unit integrates seamlessly into any standard 1756 chassis. High-resolution conversion ensures that even minor process fluctuations remain visible to the control system.

Core Technical Characteristics

• Number of Inputs: 8 Single-ended or 4 Differential channels
• Input Ranges: ±10V, 0-10V, 0-5V, 1-5V, and 0-20mA or 4-20mA
• Resolution: 16-bit digital conversion across all ranges
• Backplane Current (5.1V): 150 mA
• Backplane Current (24V): 40 mA
• Power Dissipation: Approximately 2.3 Watts maximum
• Data Format: Integer or Floating Point values
• Compatible Terminal Blocks: 1756-TBNH or 1756-TBSH

Advanced Communication Features

This module utilizes proprietary Producer/Consumer technology for efficient data distribution. This architecture allows multiple controllers to access input data simultaneously via the backplane. Furthermore, the 1756-IF8 supports real-time onboard diagnostics to identify open-wire or out-of-range faults. Users can configure digital notch filters to eliminate electrical noise from the signal path. This capability improves measurement stability in environments with high electromagnetic interference. The module also features a calibrateable front-end to maintain long-term measurement accuracy.

Versatile Industrial Deployment

The 1756-IF8 excels in both discrete manufacturing and continuous process control sectors. Its robust hardware design operates reliably in temperatures up to 60°C. Furthermore, the module supports Removal and Insertion Under Power (RIUP) for simplified maintenance. Many facilities deploy this unit for chemical processing, water treatment, and food production. The combination of flexible scaling and rapid sampling makes it ideal for complex automation. It provides a cost-effective solution for high-density analog monitoring without sacrificing signal integrity.
