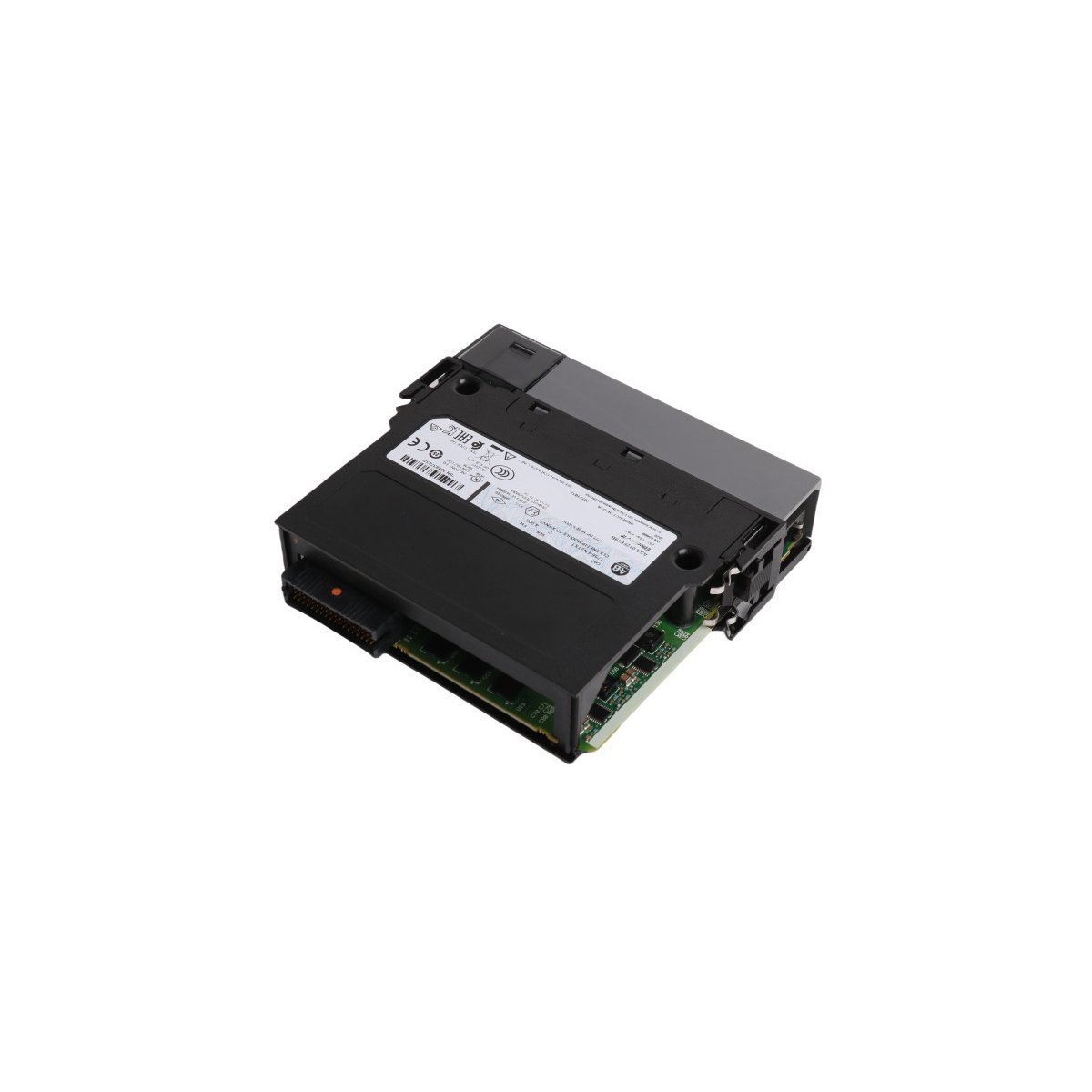

Allen-Bradley 1756-SIM ControlLogix I/O Simulator Module

The Allen-Bradley 1756-SIM is a specialized diagnostic and test hardware component belonging to the ControlLogix platform. It functions as a physical Input/Output Simulator Module that slots directly into any standard 1756 ControlLogix chassis. It features toggle switches and status LEDs on the front panel, allowing automation engineers to manually inject discrete signals into control logic or verify output behavior without wiring real-world field devices.

(Note: While a virtual version exists under the same name inside software environments like Studio 5000 Logix Emulate for pure code testing, the physical 1756-SIM hardware is used for bench-testing actual hardware controllers).

Hardware Specifications

Simulation Control & Logic Verification

The 1756-SIM bypasses typical field-side wiring by routing internal backplane signals straight to manual input selectors on the faceplate. This design allows development engineers to force inputs on or off deterministically, checking how code sequences handle interlocking states, faults, and standard run configurations.

When mapped inside Studio 5000 Logix Designer, the module establishes a standard I/O connection profile matching typical 1756 digital cards. This makes it an essential tool for staging panels, proof-of-concept testing, and troubleshooting logic routines before deploying a system to the factory floor.

Frequently Asked Questions

Q: Why does the product datasheet indicate that this item was discontinued on Dec 31, 2012?

A: Rockwell Automation migrated most physical bench-testing workflows to software-based emulation environments (Logix Emulate). However, original 1756-SIM hardware units are still widely used on hardware test benches to validate physical ControlLogix processors.

Q: Does this module require a Removable Terminal Block (RTB) for wiring?

A: No. The 1756-SIM does not have external wiring terminals. All input toggles and output indicators are self-contained on the front panel and interface solely through the chassis backplane.

Q: Can this module simulate analog loops ($4\text{ to }20\text{ mA}$ or $0\text{ to }10\text{ V}$)?

A: No, the 1756-SIM is strictly designed for discrete (digital) I/O simulation using binary toggle switches and point LEDs.

Field Installation Guidelines

• Chassis Slot Insertion: Align the module with the top and bottom chassis guides of any open slot in a 1756 rack. Push firmly until the top and bottom retaining tabs click securely into place.
• Hot-Swapping (RIUP): This module supports Removal and Insertion Under Power (RIUP). You can insert or remove it without powering down the chassis or interrupting active controller execution.
• Firmware Positioning: Because this is a static, hardware-driven simulation module, it does not require direct firmware flash updates, minimizing configuration steps in your Logix Designer project.
• Storage Protection: When not in use on the test bench, store the module in an anti-static bag to shield its backplane connector pins from debris and static discharge.
