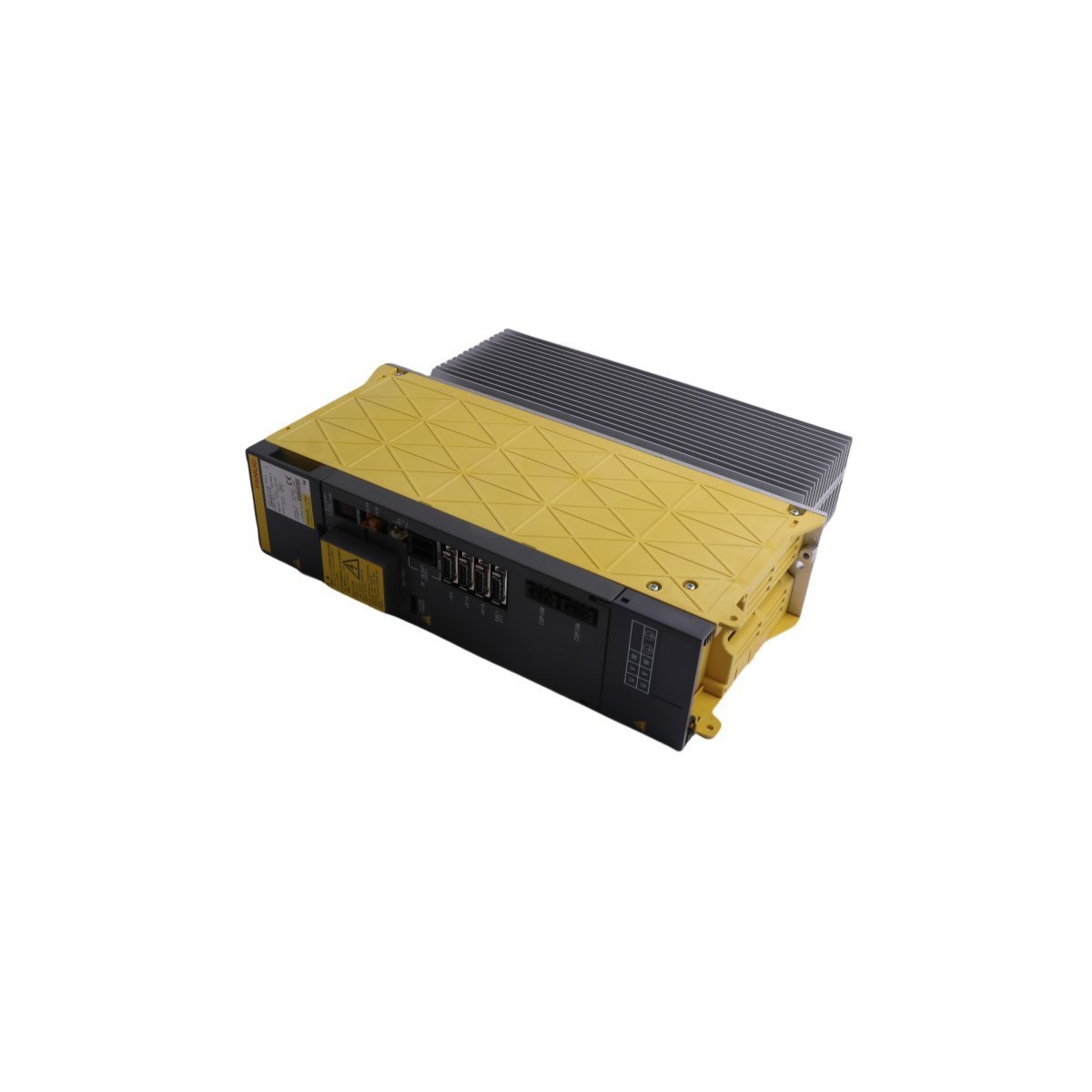

General Electric A06B-6290-H106 FANUC αi Series Servo Amplifier Module

The General Electric A06B-6290-H106 is a FANUC αi series servo amplifier module designed for precision CNC motion control. It features micron-level accuracy, regenerative power management, and advanced diagnostics for high-speed machining and automation.

Request a Quote

Advanced CNC Motion Control and Precision

The General Electric A06B-6290-H106 is a high-performance servo amplifier module engineered specifically for the FANUC αi series motion control ecosystem. This unit serves as the primary power interface between the CNC controller and the servo motors, translating low-level command signals into high-current drive outputs. By utilizing micron-level positioning precision, this module ensures that machining centers achieve the tight tolerances required for aerospace and automotive manufacturing. The integration of advanced current regulation allows for smooth torque delivery even during high-speed contouring operations.

Intelligent Diagnostics and System Protection

Operational uptime is maximized through the A06B-6290-H106’s sophisticated diagnostic suite. The module features an intelligent monitoring system that communicates directly with FANUC maintenance software, providing real-time status updates and fault codes. Because industrial environments are often subject to electrical instability, the amplifier incorporates a multi-tier protection circuit that safeguards against overcurrent, thermal overload, and voltage surges. These internal monitors, coupled with clear external status LEDs, allow maintenance teams to identify and resolve issues rapidly, significantly reducing Mean Time to Repair (MTTR).

Primary benefits include:

  • Full compatibility with FANUC αi series servo motors
  • Real-time adaptive control for position, velocity, and torque
  • Regenerative braking technology to improve energy efficiency
  • Vibration damping algorithms to maintain stability during aggressive milling
  • EMC-shielded architecture to prevent signal interference in noisy plant floors

Technical Specifications

  • Brand: General Electric (FANUC Range)
  • Part Number: A06B-6290-H106
  • Product Category: Servo Amplifier Module (αi series)
  • Unit Mass: 6.0 kg
  • Dimensions: 8.8 cm x 32.5 cm x 38.0 cm
  • Origin: USA / Japan Technology
  • System Compatibility: FANUC CNC / DCS Systems
  • HS Code: 8537101190
  • Lifecycle Status: Active

Rugged Design for High-Output Environments

The A06B-6290-H106 is built to withstand the demanding 24/7 duty cycles of modern production lines. Its compact, vertical-mount design optimizes space within the electrical control cabinet while maintaining superior heat dissipation characteristics. Furthermore, the amplifier employs dynamic rigidity control, which allows the machine tool to maintain its accuracy even when subjected to heavy cutting forces. By combining robust American manufacturing standards with Japanese precision engineering, this module provides machine builders and OEMs with a reliable, long-term solution for complex industrial motion tasks.

Tags: ,
