Sale!
SKU: IC693ALG391

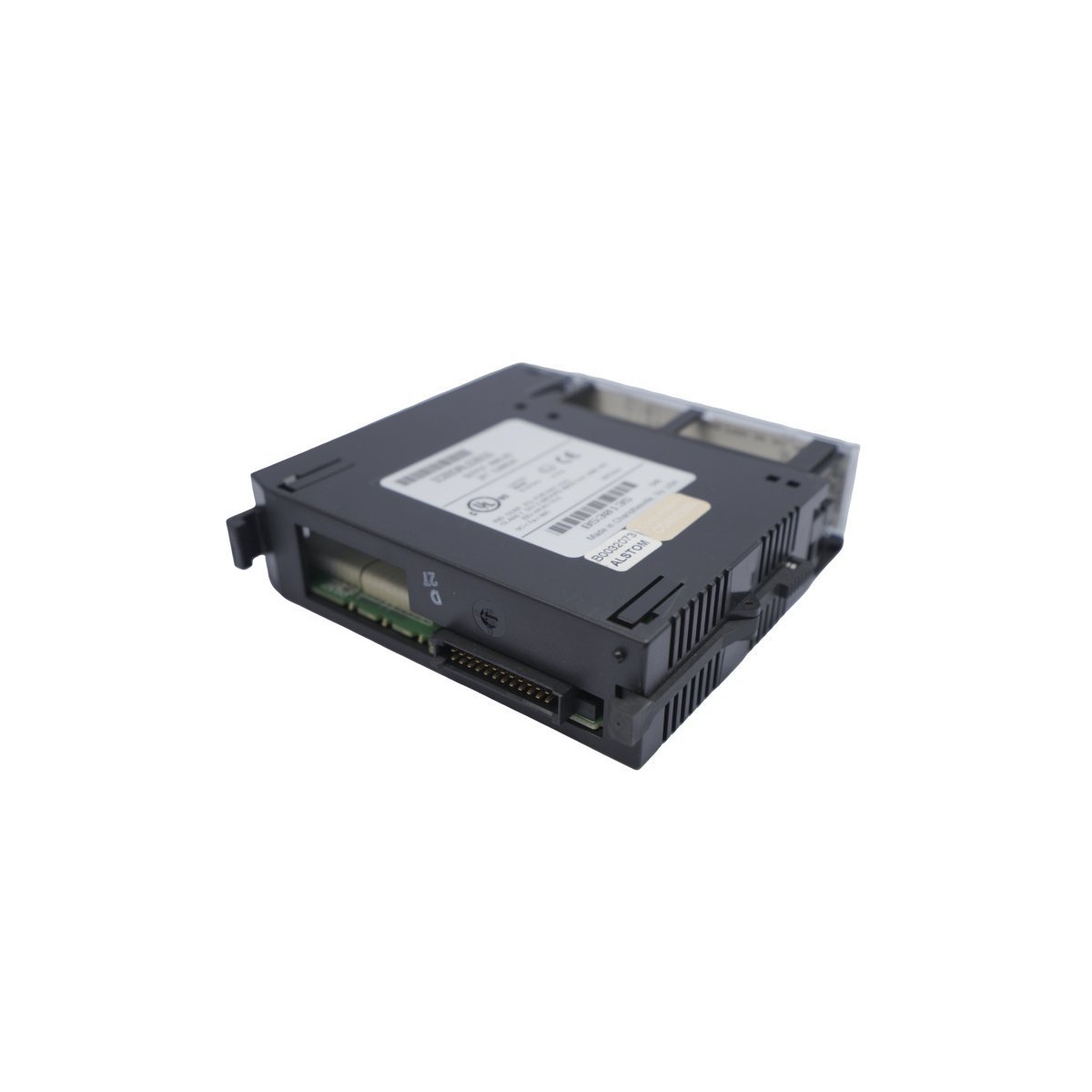

GE Fanuc IC693ALG391 Analog Current Output Module

The GE Fanuc IC693ALG391 is a 2-channel analog output module for Series 90-30 PLCs. It provides high-resolution 4-20 mA and 0-10 V signals with isolated 24 VDC power support. This precise module ensures reliable control for valves, drives, and other industrial actuators.

Request a Quote

The IC693ALG391 is a dual-channel precision interface designed for the GE Series 90-30 PLC system. This module converts digital processor data into stable analog signals to drive industrial field devices. It supports both current and voltage modes, providing critical control for actuators and modulating valves. Users can configure the outputs for standard ranges such as 4-20 mA and 0-10 VDC. Furthermore, the hardware maintains high signal stability even in environments with significant electrical noise.

Technical Specifications

AttributeDetail
ManufacturerGE Fanuc (Emerson)
Model NumberIC693ALG391
System PlatformSeries 90-30 PLC
Output Channels2 Independent Channels
Current Ranges0 to 20 mA, 4 to 20 mA
Voltage Ranges0 to 10 V, 0 to 5 V, 1 to 5 V
Resolution (Current)4 µA (4-20 mA mode)
Backplane Power (5V)30 mA
External Power (24V)215 mA

Core Technical Characteristics

  • Multi-Range Versatility: Every channel independently supports current loops or voltage outputs for diverse device compatibility.
  • Superior Output Resolution: The module offers fine-step adjustments at 4 µA per bit for exact process modulation.
  • Flexible Power Sourcing: Internal logic uses backplane power while field circuits utilize isolated 24 VDC supplies.
  • Industrial Accuracy: High-performance digital-to-analog converters ensure minimal signal drift across the operating temperature range.
  • Compact Form Factor: The single-slot design allows for high-density I/O configurations within any Series 90-30 rack.
  • Robust Circuit Isolation: Built-in galvanic isolation protects the PLC backplane from field-side electrical surges.
  • Seamless Integration: The module works with all standard Series 90-30 CPUs via simple hardware configuration.

Industrial Applications

Control engineers primarily utilize the IC693ALG391 to manage variable frequency drives and pneumatic positioners. The module also provides reliable signal feeds for chart recorders and remote data loggers. In water treatment facilities, it accurately regulates chemical dosing pumps and flow control valves. Additionally, the unit serves as an ideal interface for analog panel meters in local control stations. Its rugged USA-made construction ensures long-term performance in heavy manufacturing and power generation plants.
