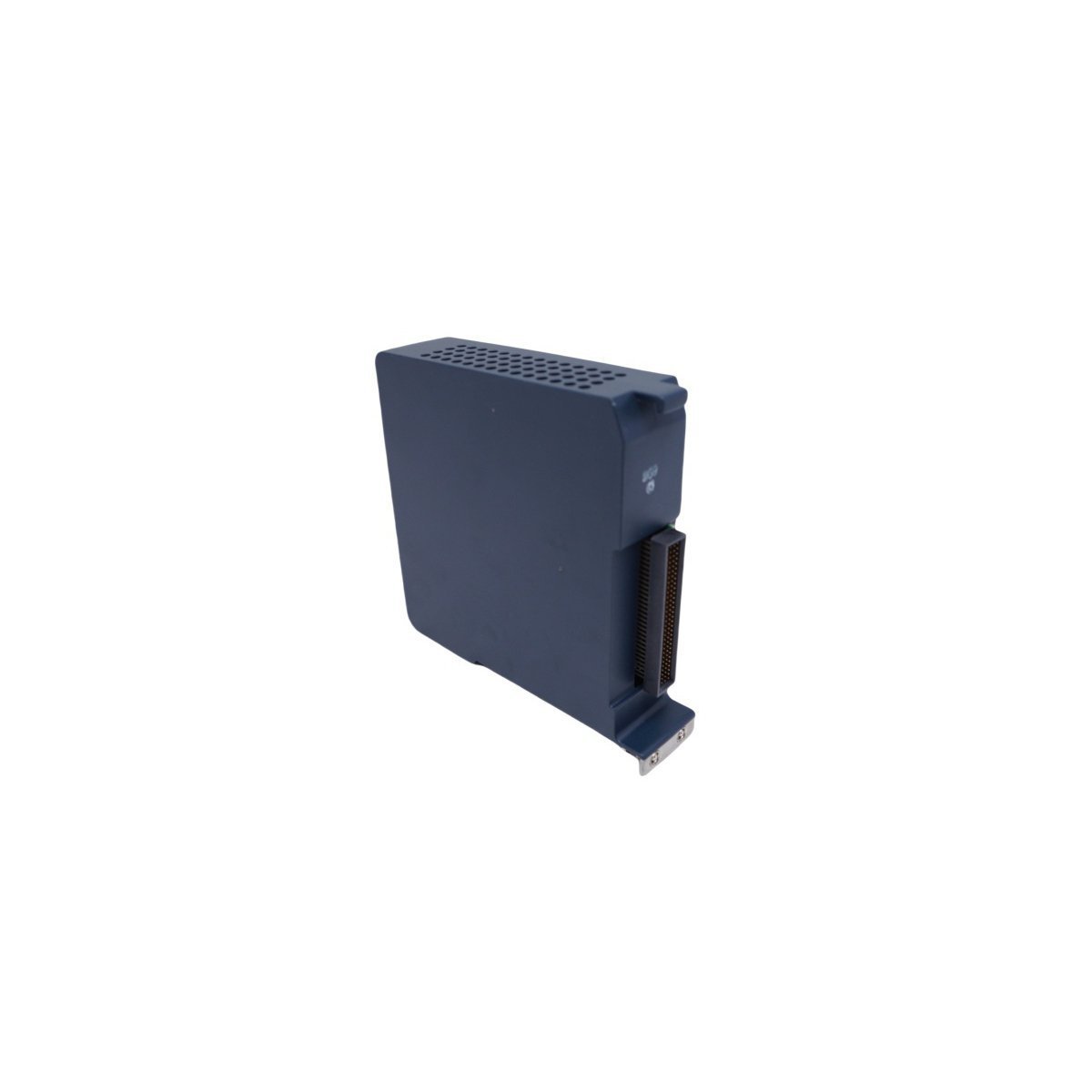

The GE Fanuc Emerson IC695PNC001 is a PACSystems RX3i PROFINET Controller featuring dual RJ-45 and SFP ports. It manages up to 64 I/O devices with update rates as fast as 1 ms, providing high-speed, scalable network communication for modern industrial automation systems.
The IC695PNC001 acts as a high-performance communication hub for the PACSystems RX3i platform, specifically enabling the integration of PROFINET I/O devices into the automation architecture. In addition to serving as a bridge, this module actively manages data exchange between the RX3i CPU and distributed field equipment to ensure rapid and synchronized process control. By utilizing a single IP address across its dual RJ-45 copper ports and dual SFP fiber slots, the module simplifies network addressing while simultaneously providing versatile media options. Furthermore, because modern industrial networks require extreme flexibility, the IC695PNC001 supports star, ring, and daisy-chain topologies. Consequently, engineering teams can optimize cabling and redundancy according to specific site requirements without compromising system integrity.
To accommodate large-scale industrial applications, a single RX3i main rack can host up to four IC695PNC001 modules at once. This capability allows the system to manage up to 128 PROFINET devices across the network, whereas each individual controller manages up to 64 remote I/O devices. Moreover, the module offers customizable data update rates ranging from 1 ms to 512 ms. As a result, operators can fine-tune the communication speed to match the specific timing requirements of different process zones. This granular control ensures that high-speed motion tasks and standard monitoring processes both operate with maximum efficiency within the same network environment.
The IC695PNC001 prioritizes system uptime by supporting the Remove and Insert Under Power (RIUP) feature. This functionality allows technicians to replace the module without shutting down the entire PLC backplane, thereby minimizing operational interruptions. For streamlined maintenance, the module includes a dedicated micro-USB port that provides a direct command-line interface for local diagnostics. Additionally, the unit features a manual restart button and supports convenient firmware updates via WinLoader software. To maintain optimal thermal performance, the module operates across a standard industrial temperature range of 0 to 60°C. Therefore, it provides a stable and future-proof communication foundation for demanding manufacturing and infrastructure projects.
In order to ensure full feature compatibility, the module requires PACSystems RX3i CPU315 or CPU320 models running firmware version 7.0 or higher. Regarding power requirements, the IC695PNC001 draws approximately 0.5 A from the 5V DC backplane under standard conditions; however, this consumption increases to 1.2 A when utilizing two SFP fiber transceivers. By drawing a maximum of 1.5 A at 5.5 VDC, the controller maintains a low power footprint relative to its high data throughput capabilities. Ultimately, the IC695PNC001 provides a robust, scalable, and high-speed link that empowers the RX3i system to excel in modern PROFINET-based automation landscapes.
