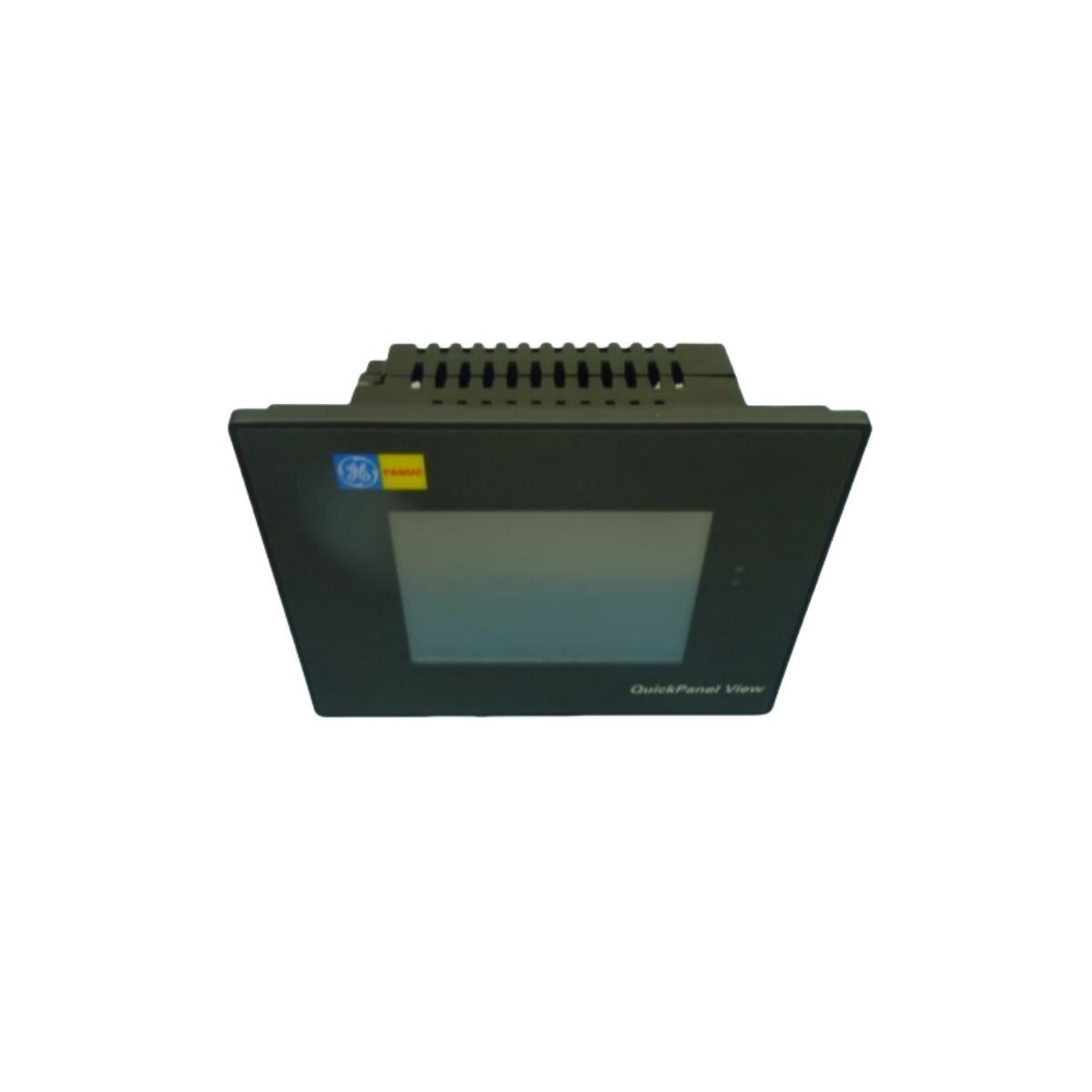

GE Fanuc IC754VGI06STD QuickPanel View 6-Inch HMI Operator Interface

The GE Fanuc IC754VGI06STD is a 6-inch QuickPanel View Intermediate HMI featuring a color STN display and Windows CE.NET. This rugged operator interface combines 300 MHz processing power with Ethernet and Serial connectivity, providing a reliable, compact solution for industrial visualization and integrated machine control.

Request a Quote

Product Overview

The GE Fanuc IC754VGI06STD serves as a high-performance graphical operator interface within the QuickPanel View series. This unit effectively merges visualization and machine control into a streamlined hardware platform. By utilizing the Microsoft Windows CE.NET operating system, this terminal provides a flexible environment for running complex industrial applications. Furthermore, the device comes pre-installed with Proficy Machine Edition runtime, which facilitates rapid deployment and seamless integration with existing GE Fanuc PLC systems and third-party motion controllers.

Technical Capabilities and Hardware

Engineered with an Intel XScale PXA255 processor clocked at 300 MHz, the IC754VGI06STD manages high-speed data processing and responsive screen transitions. The hardware architecture includes 32MB of SDRAM and onboard Flash memory to ensure stable execution of logic and HMI scripts. For expanded storage requirements, the unit incorporates a Type II CompactFlash slot. Visual feedback is delivered via a 6-inch STN (Super-Twisted Nematic) color display, offering a 320 x 240 QVGA resolution. The interface utilizes an analog resistive touchscreen for precise operator input, even when using gloved hands in factory settings.

Communication and Connectivity

To ensure robust data exchange across the plant floor, the IC754VGI06STD features multiple communication ports. Consequently, users can establish high-speed networking via the 10/100 Mbps RJ45 Ethernet port, while the RS-232 serial port provides a reliable connection for legacy hardware and point-to-point communication. These interfaces allow the QuickPanel View to act as a central hub, translating data between various industrial protocols and the operator.

Industrial Durability and Environmental Specifications

Designed for longevity in rigorous environments, the IC754VGI06STD features a rugged Valor 3706 front bezel. The enclosure meets NEMA 4, 4X, and 12 standards, meaning it provides superior protection against dust, water ingress, and oil. Additionally, the internal CCFL backlight offers a service life of approximately 40,000 hours. The terminal maintains operational integrity under high-vibration conditions and operates efficiently within a temperature range of 0 to 60°C.

Key Technical Specifications

  • Brand: GE Fanuc / GE Automation
  • Model Number: IC754VGI06STD
  • Series: QuickPanel View (Intermediate)
  • Display: 6.0″ STN Color LCD (320 x 240 resolution)
  • Processor: Intel XScale PXA255 300 MHz
  • Operating System: Windows CE.NET
  • Input Voltage: 12V / 24V DC (18V to 30V DC Range)
  • Power Consumption: 12 Watts
  • Memory: 32MB SDRAM / Flash
  • Expansion: Type II CompactFlash Slot
  • Interfaces: 1x RJ45 Ethernet (10/100 Mbps), 1x RS-232 Serial
  • Protection Rating: NEMA 4, 4X, 12 (Front Panel)
  • Weight: 1.16 kg
