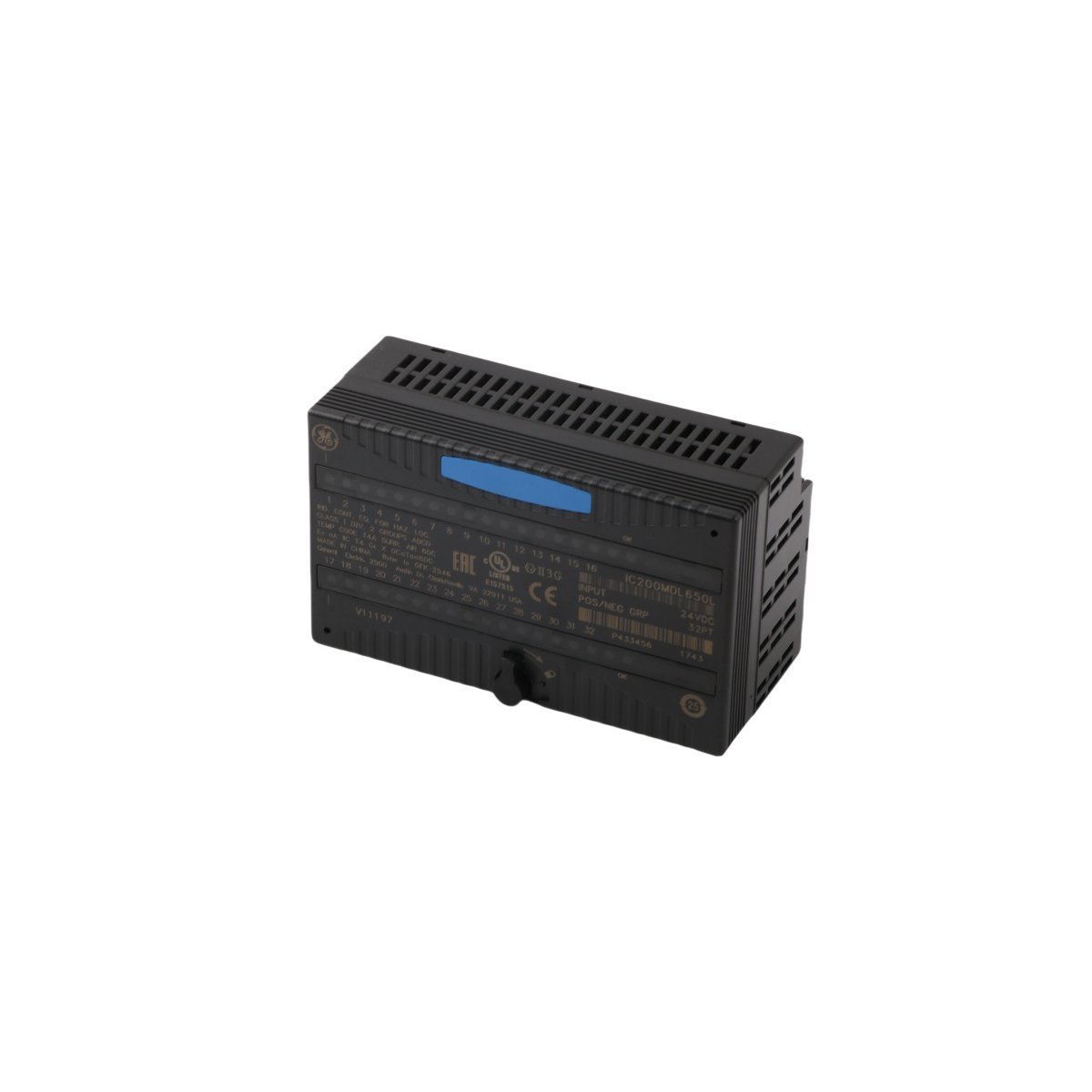

GE Fanuc VersaMax IC200MDL650 24VDC 32-Point Discrete Input Module

The GE Fanuc IC200MDL650 is a high-density 24VDC discrete input module for the VersaMax PLC series. It features 32 inputs organized into four groups, supporting both sink and source logic with configurable filter times for precise signal processing in industrial environments.

Request a Quote

Product Overview

The IC200MDL650 serves as a high-density interface within the GE Fanuc VersaMax I/O family, providing 32 distinct input points for industrial automation systems. This module effectively bridges external field devices with the PLC backplane, converting physical signals into digital data for the controller. Because it supports both positive and negative logic (sink or source configurations), engineers can integrate various sensors and switches without requiring multiple hardware variants. Furthermore, the compact design optimizes panel space while maintaining the robust performance standards required for critical infrastructure.

Technical Functionality

The module organizes its 32 points into four isolated groups of eight, which allows for different power sources or signal types across the module. It draws its operational power directly from the backplane, utilizing only 50mA at 5VDC, thereby reducing the burden on external power supplies. To ensure signal integrity, the device features software-configurable filter times. These filters allow the system to ignore electrical noise or contact bounce by selecting between 0ms, 1.0ms, or 7.0ms response settings. Moreover, the front panel includes 32 green LED indicators that provide real-time status updates for each individual circuit, simplifying onsite troubleshooting and maintenance.

Key Specifications

  • Brand: GE Fanuc / Emerson
  • Series: VersaMax I/O
  • Input Voltage: 24 VDC (Nominal)
  • Input Voltage Range: 0 to 30 VDC
  • Number of Points: 32 (Arranged in 4 groups of 8)
  • Input Logic: Support for Sinking (Positive) and Sourcing (Negative)
  • On-State Voltage: 15 to 30 VDC
  • Off-State Voltage: 0 to 5 VDC
  • On-State Current: 2.0 to 5.5 mA
  • Input Impedance: 10k Ohms
  • Backplane Current Consumption: 50mA @ 5VDC
  • Response Time: 0.5 ms (maximum)
  • Configuration: Selectable digital filter via CPU or NIU

Operational Environment

Effective heat management is crucial for the IC200MDL650. Consequently, the thermal derating of the module depends on the mounting orientation and the ambient temperature. While it operates reliably at 24VDC across a wide range, users must account for the total number of active inputs when operating at the maximum 30VDC threshold in high-temperature environments. This attention to thermal performance ensures long-term reliability in dense control cabinets.
