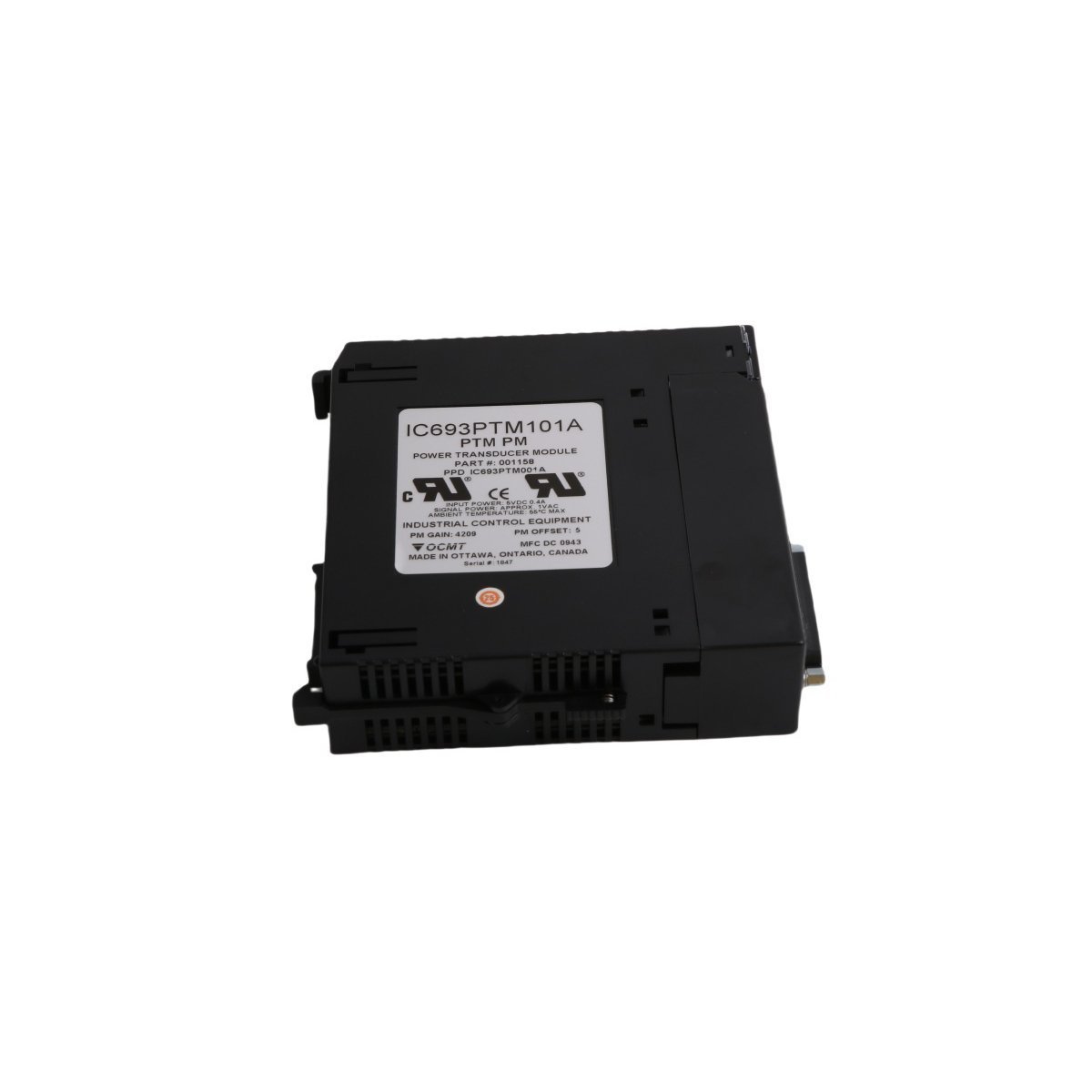

GE Fanuc IC693PTM101 Series 90-30 Power Transducer Module

The GE Fanuc IC693PTM101 is a Series 90-30 Power Transducer Module designed to monitor RMS voltage, current, and power factor across single-phase or three-phase systems. It supports generator synchronization, peak demand tracking, and automated load shedding when integrated into a standard PLC rack.

Request a Quote

Product Overview

The Emerson / GE Fanuc IC693PTM101 functions as a high-performance power measurement instrument designed for integration within the Series 90-30 PLC infrastructure. This specialized module enables industrial operators to analyze electricity consumption profiles and track essential electrical data directly from the control rack. By interfacing directly with external potential transformers (PTs) and current transformers (CTs), the unit captures raw electrical signals to evaluate energy performance and assess the synchronization stability between power generators and the utility grid.

Operational Modes and Functionality

To accommodate diverse industrial power distribution networks, the module provides multiple configuration options:

  • Single-Phase Mode: Suitable for monitoring standard individual branch circuits or localized utility loads.
  • Three-Phase Mode: Supports both Wye and Delta electrical configurations to track industrial motor control centers, machinery grids, or facility main lines.
  • Synchro Monitor Mode: Evaluates phase angles, voltage differentials, and frequency variances to ensure secure interconnection between standalone generation assets and the distribution network.

Advanced Measurement Capabilities

The hardware executes high-speed signal processing to compute critical power quality parameters with minimal latency at nominal operating frequencies of 50 Hz and 60 Hz. The specific data points captured by the module include:

  • True Root Mean Square (RMS) voltage levels
  • True Root Mean Square (RMS) current levels
  • Real, reactive, and apparent power metrics
  • Power factor percentages and grid frequency
  • Total cumulative energy usage and rolling 15-minute peak demand metrics

Industrial Applications and System Integration

Beyond standard utility metering, the component serves as an active automation tool to optimize facility operations. PLC integration allows control engineers to establish automated load shedding schemes, minimize peak demand penalties, and generate automated diagnostic reports. Because the module is fully compatible with all Series 90-30 PLC CPUs, installation is permitted on local CPU baseplates, expansion racks, or remote I/O bases, which significantly minimizes the length of high-voltage field wiring.

Technical Specifications

  • Manufacturer: GE Fanuc / Emerson Automation
  • Product Series: Series 90-30 PLC
  • Module Type: Power Transducer Module
  • Part Number: IC693PTM101
  • Supported Systems: Single-Phase, 3-Phase Delta, 3-Phase Wye
  • Operating Frequency: 50 / 60 Hz
  • Physical Weight: 0.36 kg
  • Module Dimensions: 3.5 cm x 13.2 cm x 13.5 cm
  • Baseplate Compatibility: All Series 90-30 CPU, expansion, and remote baseplates
