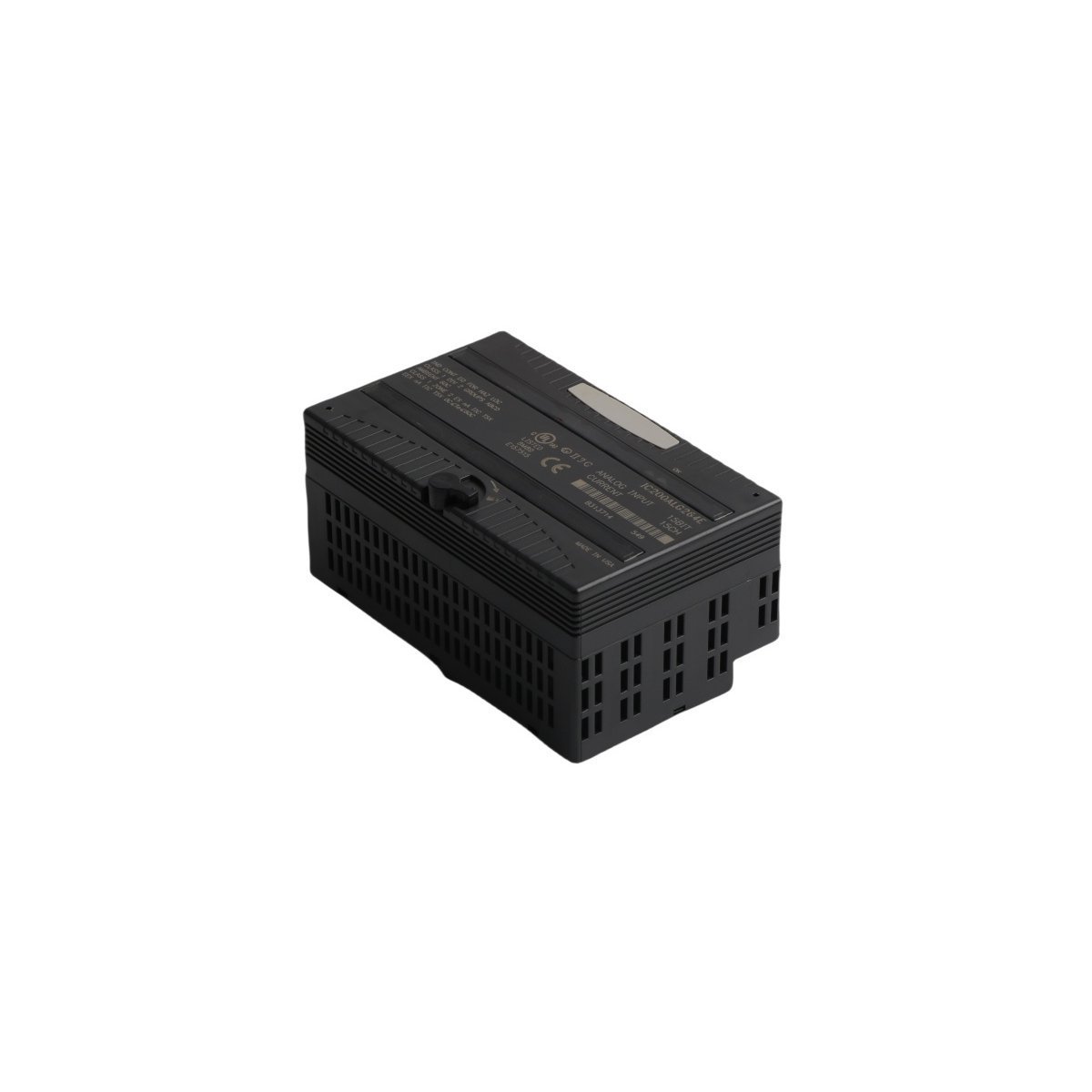

GE Fanuc VersaMax IC200ALG264 15-Channel Analog Current Input Module

Technical Overview

The IC200ALG264 is a high-density analog input component belonging to the GE Fanuc VersaMax I/O family. This module enables the integration of field sensors with a central PLC or distributed control system by converting analog current signals into digital data. It features fifteen distinct single-ended input channels, each utilizing a 15-bit Analog-to-Digital Converter (ADC) to ensure precise signal reproduction. While the module maintains a compact form factor, it offers significant input density, making it suitable for applications where enclosure space is limited but high channel counts are required.

Functional Performance

System designers can utilize this module for both 4-20 mA and 0-20 mA current loops. The hardware determines the operating range based on the presence of a jumper on the terminal carrier. Consequently, the module delivers a resolution of 0.5 µA per count for 4-20 mA signals and 0.625 µA per count for 0-20 mA signals. Furthermore, the IC200ALG264 facilitates rapid data acquisition with a module update rate of 7.5 milliseconds across all channels. Although the channels share a common return, the module provides robust isolation of 1500 VAC between the field circuitry and the backplane to protect sensitive control logic from external electrical surges.

Operational Reliability and Diagnostics

The IC200ALG264 incorporates proactive monitoring features to maintain system uptime. When operating in 4-20 mA mode, the module automatically detects open-wire conditions, allowing the controller to trigger alarms before process failures occur. An onboard “OK” LED indicator provides immediate visual confirmation of the module’s health and successful configuration by the CPU. To ensure long-term accuracy, the module maintains a typical precision of ±0.3% at room temperature, while providing reliable performance up to 60°C.

Key Technical Specifications

• Input Channels: 15 single-ended
• Input Signal Range: 4 to 20 mA (default) or 0 to 20 mA (jumper removed)
• Resolution: 15 bits
• Accuracy: ±0.3% of full scale (typical at 25°C)
• Update Time: 7.5 ms
• Backplane Current Consumption: 100 mA at 5V
• Isolation: 1500 VAC (Field to Backplane); 350 VAC (Continuous)
• Diagnostic Features: Open-wire detection (4-20 mA only), internal power monitoring, and status LED

Product Applications

This module effectively supports process control environments such as water treatment, chemical processing, and HVAC systems. By interfacing with flow meters, pressure transmitters, and temperature sensors, the IC200ALG264 provides the granular data necessary for complex PID loops and automated sequencing. Its compatibility with various VersaMax network interfaces allows for seamless integration into Ethernet, Genius, or Profibus industrial networks.
