Sale!
SKU: IC220PWR013

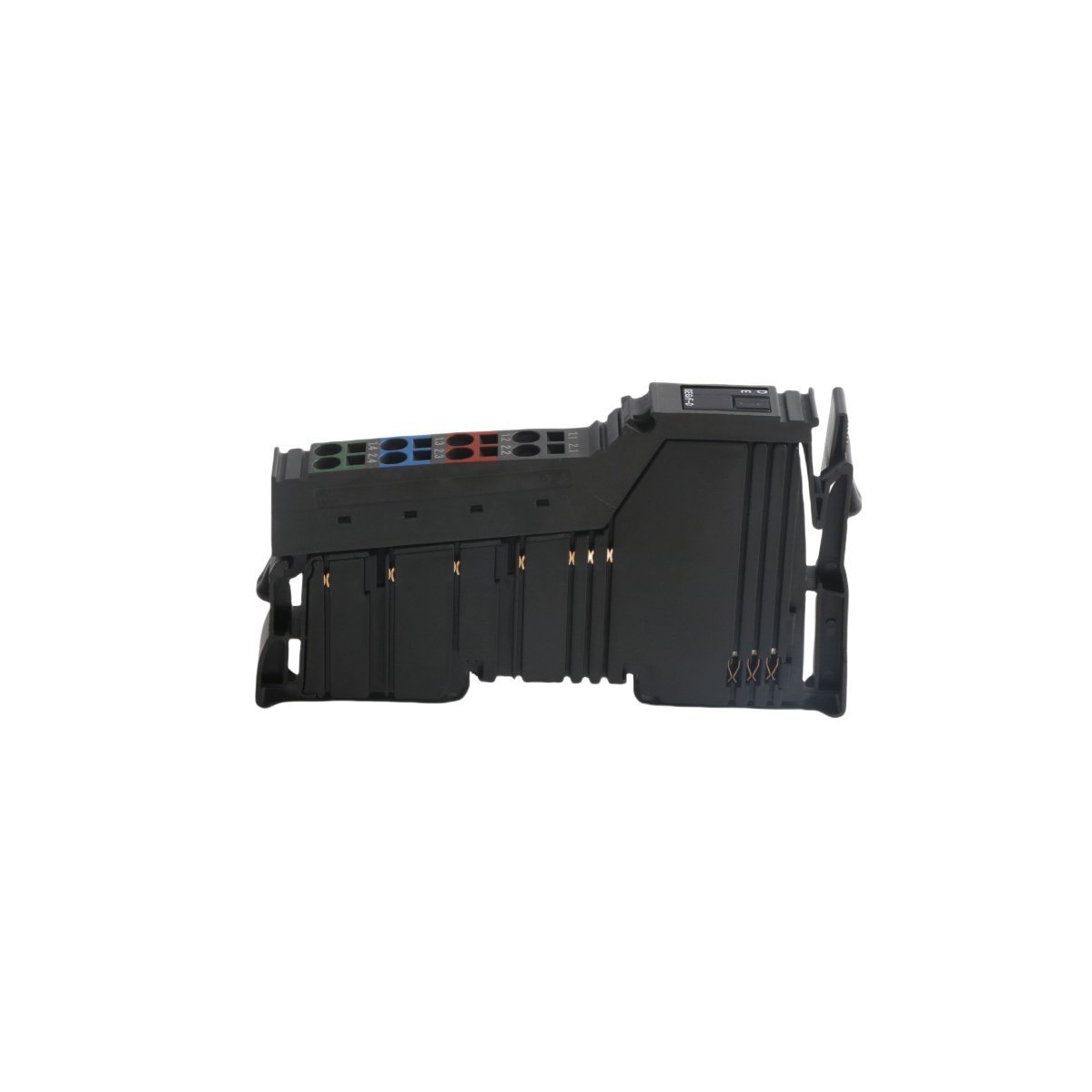

GE Fanuc IC220PWR013 VersaPoint Fused Segment Power Terminal

The GE Fanuc IC220PWR013 is a VersaPoint fused segment terminal designed to create protected sub-circuits within a PLC system. It features integrated fuse protection, real-time voltage diagnostics, and status LEDs for enhanced industrial safety and monitoring

Request a Quote

Product Overview

The IC220PWR013 functions as a specialized segment terminal within the GE Fanuc VersaPoint I/O system, specifically engineered to establish a protected sub-circuit from the main power bus. By integrating this module into a PLC rack, engineers can isolate specific groups of I/O modules, ensuring that a localized fault does not compromise the entire system’s integrity. While the unit does not generate power itself, it acts as a critical distribution and safety point. It is important to note that this module belongs to the VersaPoint series, which is frequently used alongside PACSystems RX3i controllers for distributed automation tasks.

Technical Functionality

Regarding its protective capabilities, the IC220PWR013 provides a fused pathway for the segment circuit, shielding downstream components from overcurrent conditions. Because the module focuses on segment isolation, it provides diagnostic input data directly to the controller, allowing the CPU to monitor both the supply voltage status and the health of the internal fuse in real-time. Furthermore, the front panel features dedicated diagnostic LEDs that offer immediate visual confirmation of the bus status.

Despite its protective role, users must recognize that this module does not include internal circuitry for polarity reversal or overvoltage protection; therefore, the primary power source must be regulated appropriately. For a complete installation, this module requires the IC220TBK087 Power Terminal Strip, which must be purchased separately.

Key Specifications

  • Brand: GE Fanuc / Emerson
  • Series: VersaPoint
  • Product Type: Fused Segment Power Terminal
  • Protection: Internal fuse (replaceable)
  • Diagnostics: Fuse status and voltage monitoring via input data
  • Indicators: Green/Red diagnostic LEDs for bus and fuse health
  • Compatibility: Requires IC220TBK087 Terminal Strip
  • Dimensions: 1.3cm x 7cm x 12cm
  • Weight: 0.06 kg
  • Applications: Segment circuit creation and localized current protection

Installation and Monitoring

In order to maintain operational safety, the IC220PWR013 should be placed at the beginning of any I/O segment that requires independent fuse protection. Since the module transmits diagnostic data, programmers can configure alarms within the PLC software to trigger an emergency stop or alert if a fuse blows. Moreover, the lightweight and slim 1.3cm profile allows for high-density mounting on standard DIN rails. Meanwhile, during maintenance, the diagnostic LEDs allow technicians to quickly identify power failures within specific segments without testing every individual terminal.

Tags: ,
