  4. GE Fanuc Emerson IC200CHS022 VersaMax Compact Box-Style I/O Carrier
Sale!
SKU: IC200CHS022

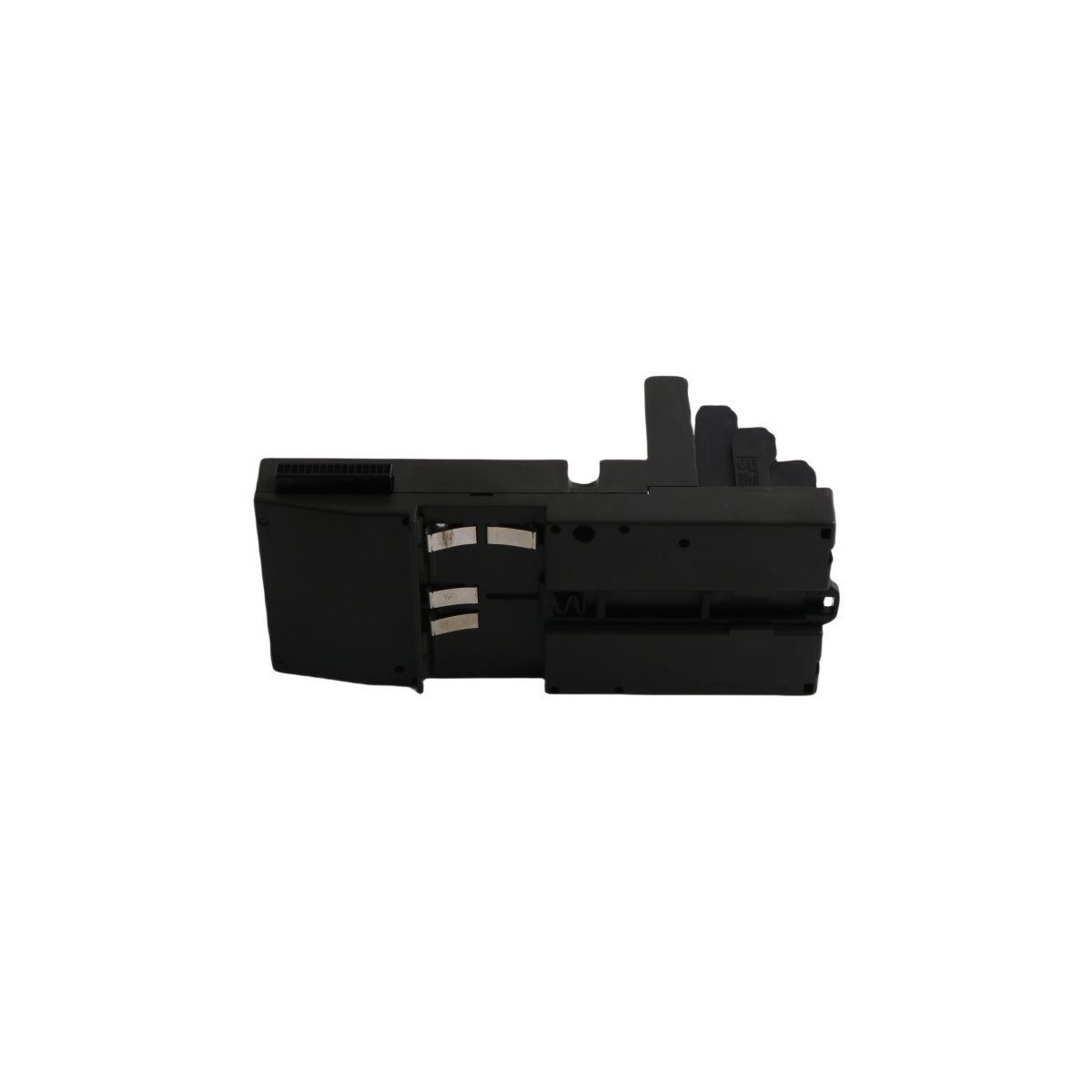

GE Fanuc Emerson IC200CHS022 VersaMax Compact Box-Style I/O Carrier

The GE Fanuc IC200CHS022 is a 36-terminal, box-style I/O carrier for the VersaMax series. It supports high-density field wiring, DIN-rail mounting, and tool-free module replacement to maximize system uptime and reliability.

Request a Quote

Versatile Wiring Foundation for Automation

The IC200CHS022 serves as a robust terminal base within the Emerson VersaMax ecosystem, acting as the primary physical and electrical interface for various I/O modules. By decoupling the wiring from the active electronics, this carrier allows technical teams to establish field connections before the control modules arrive. Because the carrier supports a broad range of VersaMax modules, it provides a standardized platform for industrial signals, ensuring that electrical layouts remain consistent across the control cabinet.

Robust Terminal Configuration and Capacity

To facilitate dense wiring in a small footprint, the hardware incorporates 36 IEC-standard box-style screw terminals. These terminals accommodate both solid and stranded copper conductors, providing secure mechanical retention for critical field signals. Furthermore, the internal architecture organizes these connections into two distinct rows, labeled A1 through A18 and B1 through B18, which significantly simplifies the mapping of complex I/O circuits.

  • Wire Compatibility: Supports single-wire connections from AWG #14 (2.1 mm²) to AWG #22 (0.36 mm²).
  • Current Ratings: Individual terminals manage up to 2 Amps, while the integrated power and ground segments handle a collective load of 8 Amps.
  • Voltage Endurance: Rated for operational voltages between 0 and 264 VAC, with a transient protection threshold reaching 300 VAC.

Installation Flexibility and Thermal Management

The IC200CHS022 supports multiple mounting orientations, including standard 35mm DIN-rail clipping and direct panel mounting using screws. Consequently, control engineers can adapt the carrier to suit the specific physical constraints of their enclosures. To maintain peak performance and prevent thermal throttling, the installation guidelines recommend maintaining a 1-inch horizontal clearance and a 2-inch vertical clearance for adequate airflow. Additionally, the unit features a hinged card holder that protects the terminal wiring while simultaneously securing the installed I/O module in place.

Maintenance Efficiency

One major advantage of this modular design is the “hot-swapping” capability. Maintenance personnel can replace or upgrade active I/O modules without disturbing the existing field wiring, which effectively eliminates the risk of rewiring errors and drastically reduces system downtime. This characteristic makes the IC200CHS022 an essential component for high-availability industrial environments operating within the 0 to 60°C temperature range.

Technical Specifications

  • Manufacturer: GE Fanuc / Emerson Automation
  • Series: VersaMax
  • Part Number: IC200CHS022
  • Type: Compact Box-Style Carrier
  • Terminal Count: 36 Screw Terminals
  • Dimensions: 66.8 mm x 70.0 mm x 163.5 mm
  • Mounting Options: 35mm DIN-rail or Panel Mount
  • Net Weight: 0.24 kg
