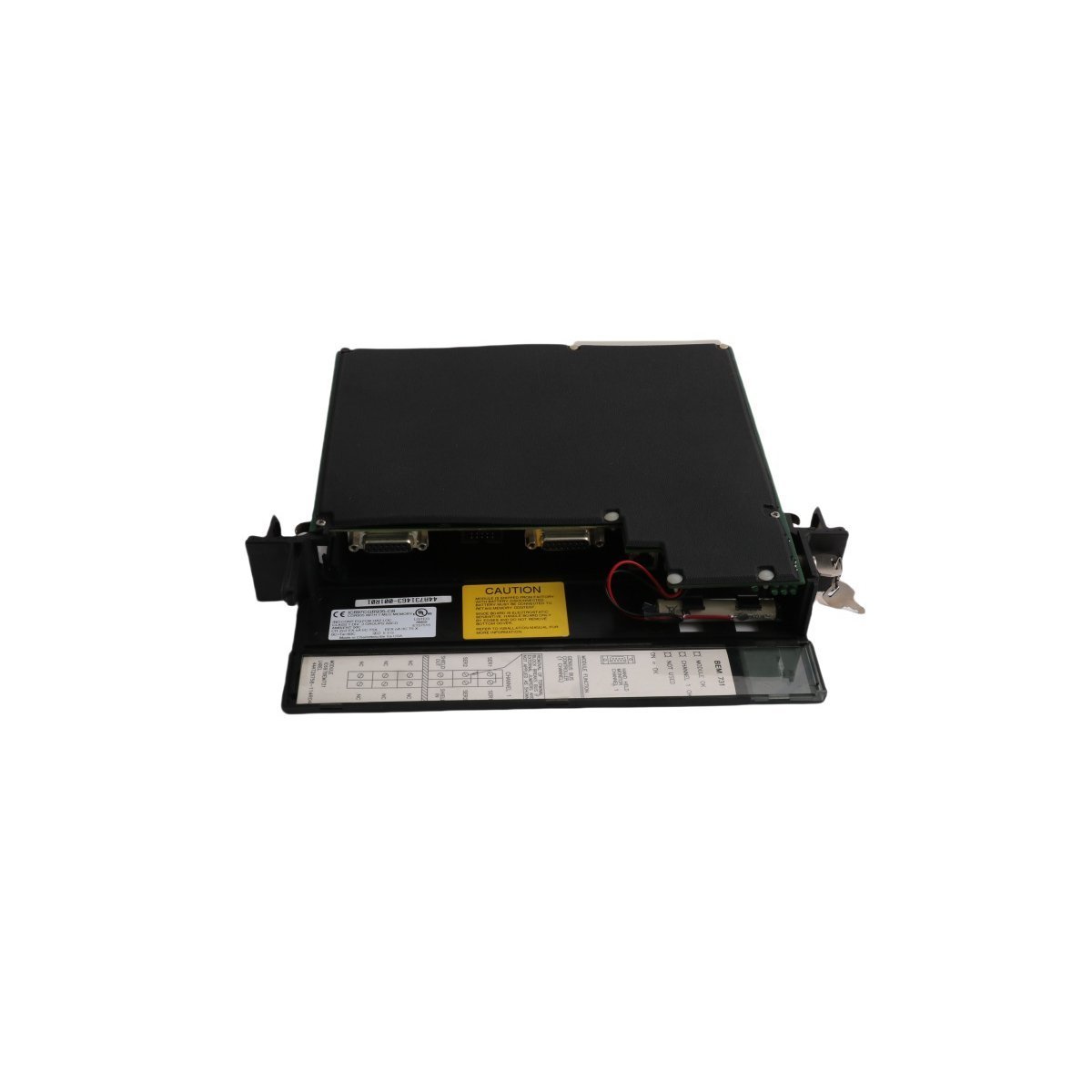

Configured for redundant processing tasks in Series 90-70 networks, the GE IC697CGR935 (IC697CGR935 One Slot Controller Module) provides direct physical and electrical execution of logic in hot-standby architectures. This controller operates with a 96 MHz 80486DX4 microprocessor to manage up to 12K discrete I/O points and 8K analog I/O points. Synchronization between primary and secondary units is maintained through backplane communication, facilitating seamless failover transitions.
Hardware Specifications
Parameter
Specification
Model
IC697CGR935
Brand
GE
Origin
USA
Weight
0.75 kg
Dimensions
4.0 cm x 21.8 cm x 29.1 cm
Operating Temp
0 deg C to 60 deg C
Power Consumption
3.1 A
Processor
96 MHz 80486DX4
Memory
1 MB
Execution Speed
0.4 microseconds (Boolean)
Industrial Control System Performance
The IC697CGR935 relies on high-velocity backplane bus communication to ensure deterministic synchronization between redundant modules. Furthermore, firmware flash compatibility allows for controlled version updates within the Series 90-70 environment, thereby maintaining consistency across logic execution cycles. In addition, I/O density scaling is supported through the backplane interface, which enables the controller to process large datasets without exceeding defined timing constraints. Finally, Profinet and EtherNet/IP deterministic network integration requirements are managed via specific communication coprocessors when utilized in integrated automation architectures.
Frequently Asked Questions
Q: What is the failover behavior if the primary controller experiences a fault?
A: In a redundant pair, the secondary controller monitors the heartbeat of the primary. Upon detection of a primary fault, the secondary transitions to the active state instantaneously to prevent interruption of the process control loop.
Q: Are there specific thermal requirements for operation at ambient temperatures above 50 deg C?
A: Yes. Forced air cooling is required when the operating environment exceeds 50 deg C to ensure the heat dissipation of the 80486DX4 microprocessor and internal circuitry remains within specified safe limits.
Field Installation Guidelines
Ensure the rack slot is free of debris before inserting the module to guarantee proper contact with the backplane connector.
The module must be seated flush against the rack frame and secured using the provided mounting hardware to ensure electromagnetic compatibility and grounding.
Shielded serial cables connected to the RS232 or RS485 interfaces should be grounded at the controller end to mitigate noise interference in high-EMI environments.
Upon initial power-up, verify that the 3-position switch is set to the correct mode (Run/Stop) and that status LEDs indicate valid processor health before establishing field I/O connectivity.

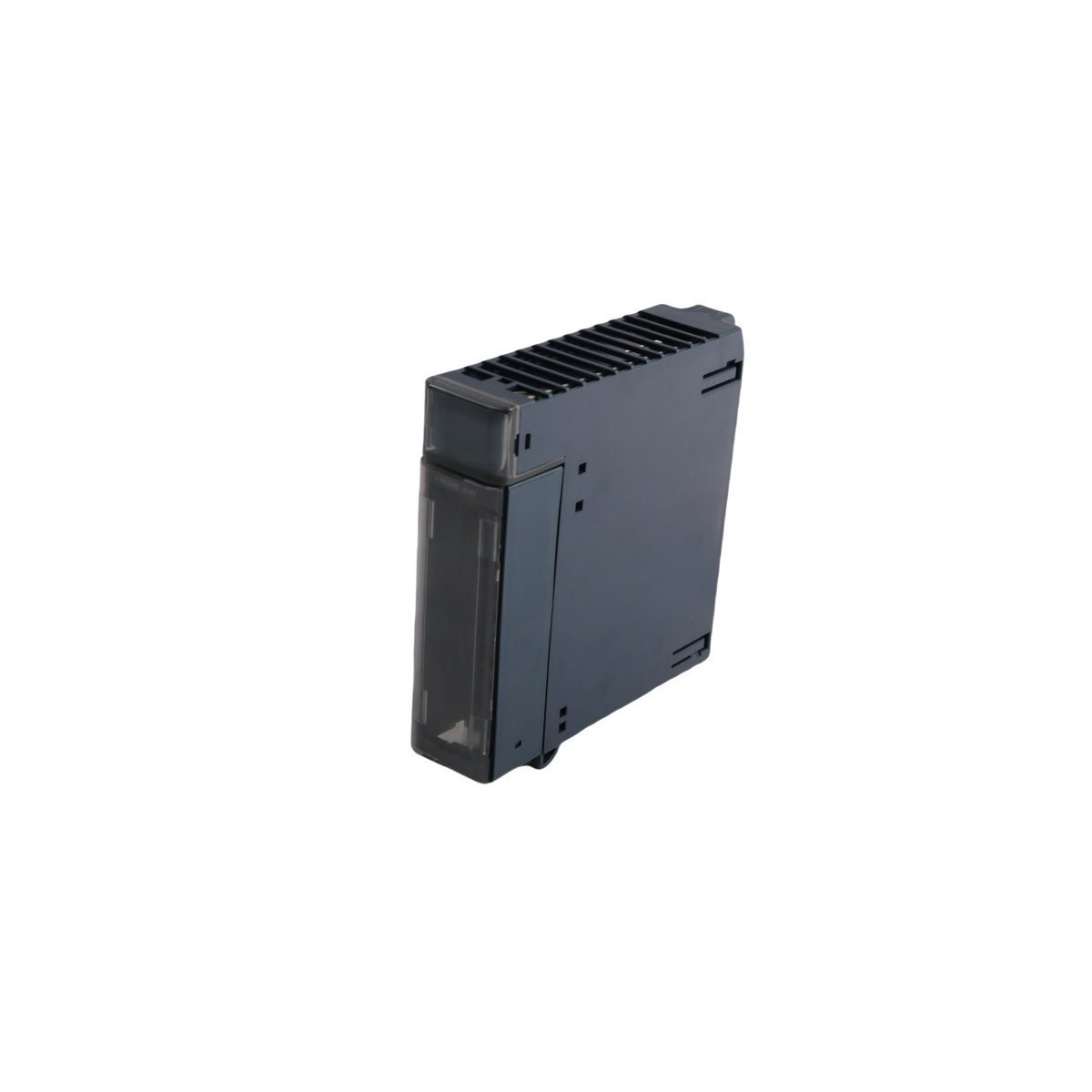

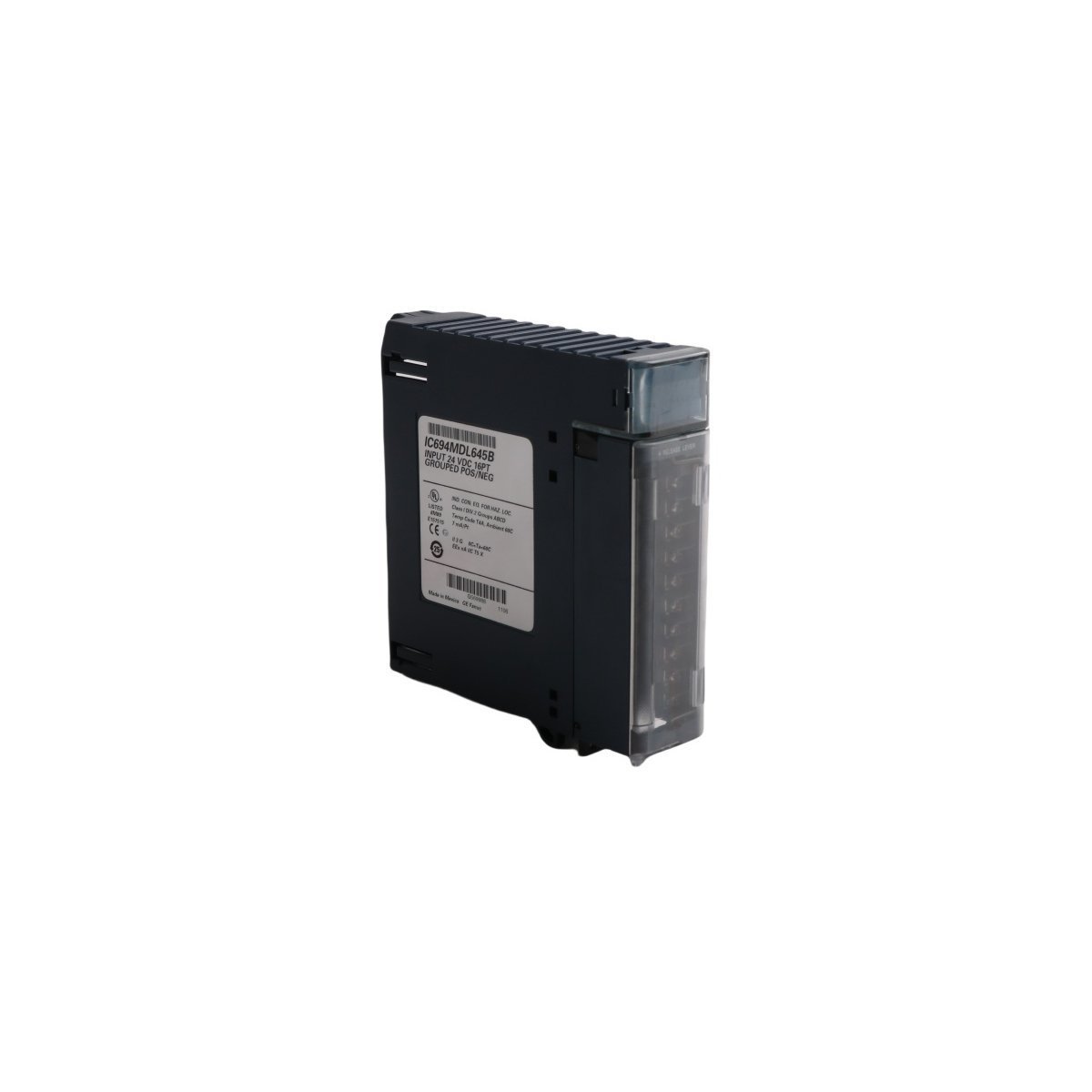

The GE IC694MDL645, also cataloged as the IC694MDL645 Digital Input Module, operates as a dedicated hardware component for signal acquisition within PACSystems RX3i control networks. Incoming field signals are processed through sixteen discrete channels, and the resulting state data is transmitted to the backplane. Electrical compatibility with both positive and negative logic configurations is maintained, and operational states are continuously monitored via integrated LED indicators.
Hardware Specifications
Parameter
Specification
Model
IC694MDL645
Brand
GE
Origin
USA
Weight
0.3 kg
Dimensions
3.5 cm x 13.2 cm x 13.5 cm
Operating Temp
Standard Industrial Range
Power Consumption
Backplane Dependent
Input Channels
16
Rated Voltage
24 VDC
ON-state Voltage
11.5 VDC to 30 VDC
OFF-state Voltage
0 VDC to 5 VDC
Response Time
7 ms (typical)
PLC and Control Network Integration
System communication velocity and deterministic performance are regulated by the PACSystems backplane architecture. Signal integrity is preserved through high-level galvanic isolation, rated at 1500 VAC for one minute, whereby electrical noise interference is mitigated. Furthermore, firmware flash compatibility is ensured during module replacement, provided that the backplane remains energized within the specified voltage tolerances. The module is engineered for integration within both local and remote RX3i I/O racks, while support for RX7i systems is provided exclusively in distributed I/O configurations.
Frequently Asked Questions
Q: Is the module capable of being hot-swapped while the system is powered?A: Yes, the module is designed to be extracted and inserted while the RX3i backplane is energized; however, field wiring must be verified to ensure no short-circuit conditions are created during the removal process.Q: How is the signal response time managed in high-speed applications?A: A typical response time of 7 milliseconds is imposed by the hardware filter circuits. This latency is inherent and should be accounted for when high-speed pulse capture is required.
Field Installation Guidelines
The module is to be mounted onto the designated RX3i backplane slot. A mechanical click is heard when the module is fully seated.
Prior to wiring, the 24 VDC power supply must be verified for voltage stability.
Signal wires are to be connected to the terminal block. A secure, firm connection is required to prevent intermittent signal loss caused by vibration.
Shielding must be grounded at the designated earth terminal to ensure that electromagnetic interference is properly diverted.
Once the module is seated and wired, the status LEDs are to be inspected for illumination corresponding to active field device states.

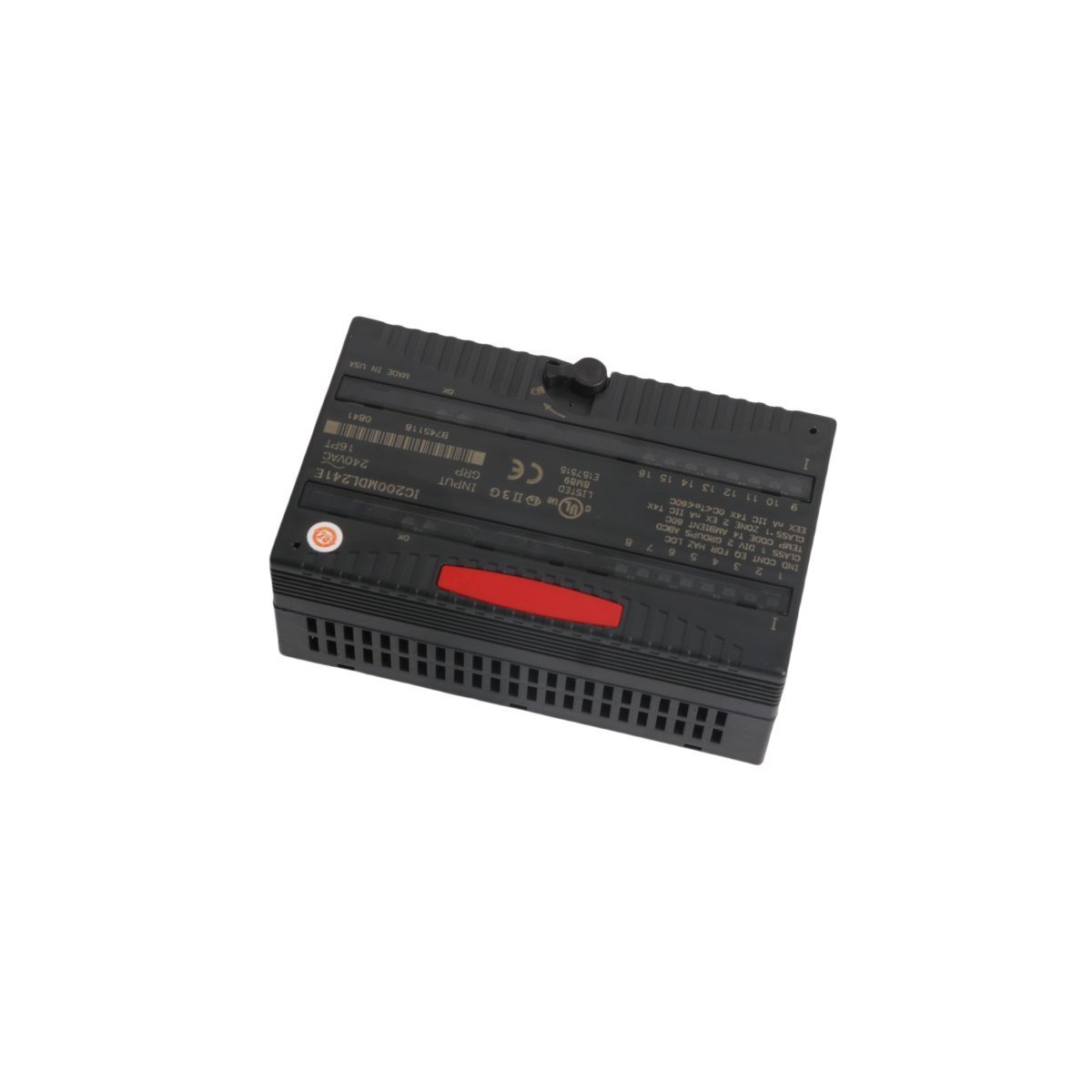

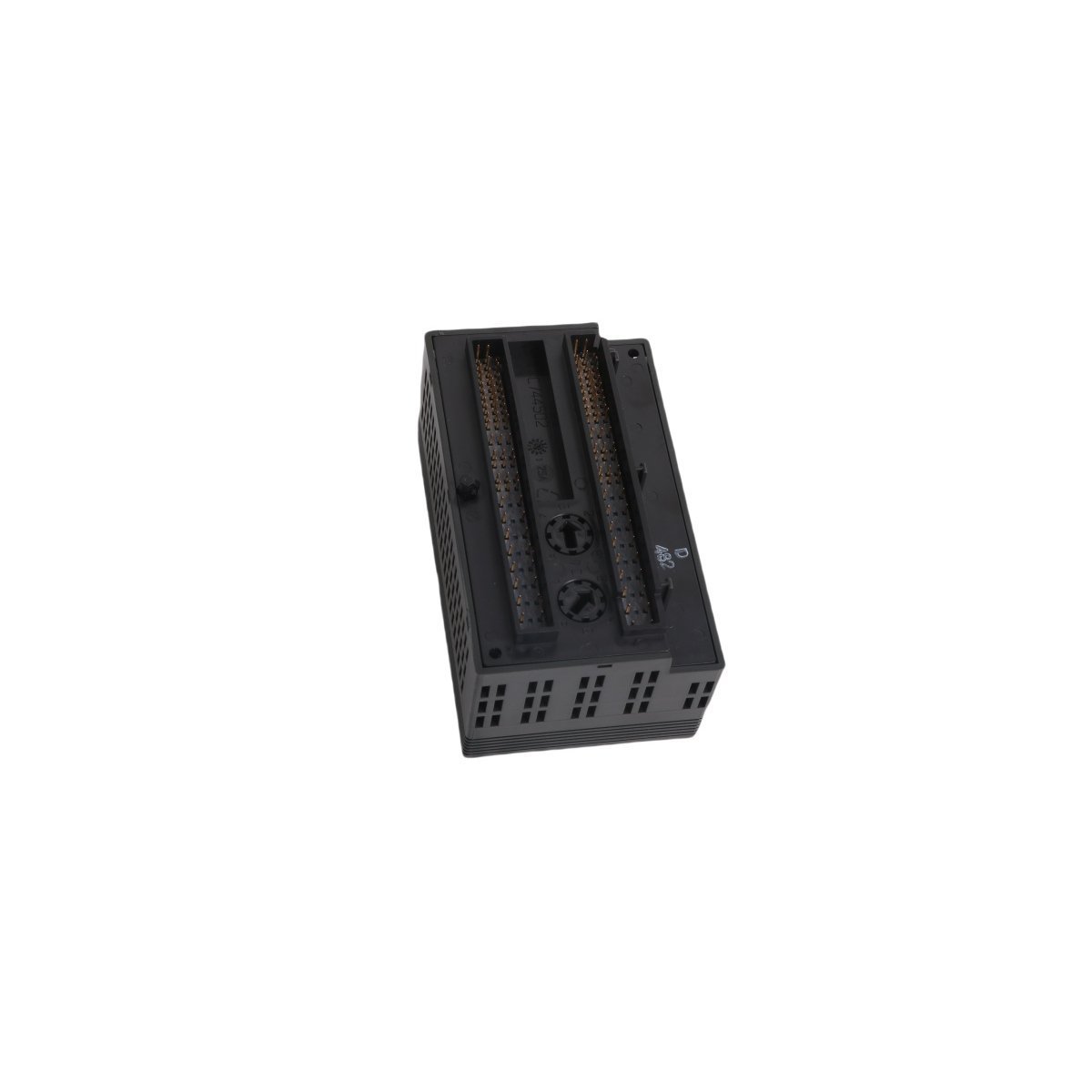

The GE IC200MDL241, also cataloged as the IC200MDL241 AC Input Module, operates as a dedicated hardware component for discrete signal acquisition within VersaMax I/O and control networks. Logic states from field-connected devices are processed through sixteen channels, and the resulting data is transmitted via the backplane to the host CPU. Input transitions are continuously monitored by integrated LED indicators, while electrical isolation is maintained across input groups to ensure signal integrity during operation.
Hardware Specifications
Parameter
Specification
Model
IC200MDL241
Brand
GE
Origin
USA
Weight
0.1 kg
Dimensions
11.0 cm x 5.8 cm x 6.5 cm
Operating Temp
Standard Industrial Range
Power Consumption
110.0 mA at 5.0 VDC (Backplane)
Nominal Voltage
240 VAC
Input Range
0 to 264 VAC
ON-state Voltage
155 VAC to 264 VAC
OFF-state Voltage
0 VAC to 40 VAC
PLC and Control Network Integration
System communication velocity and deterministic performance are regulated by the VersaMax backplane architecture. Backplane bus communication velocity is optimized to ensure low-latency data throughput for high-density I/O configurations. Furthermore, firmware flash compatibility is supported, allowing for field updates when the module is integrated into existing VersaMax PLC frameworks. To maintain operational stability, I/O density scaling is managed through the modular backplane, which facilitates the addition of supplemental discrete or analog modules without interrupting the host processor scan cycle.
Frequently Asked Questions
Q: Is the module capable of being hot-swapped while the backplane is energized?A: Yes, the module is designed to support hot-swapping. However, care must be taken to ensure that field wiring is disconnected or secured to prevent accidental shorting of the AC input terminals during extraction.Q: How is the group isolation managed across the sixteen channels?A: The sixteen inputs are organized into two groups of eight. While there is no point-to-point isolation, 1500 VAC of group isolation is provided for a duration of one minute to protect against common-mode electrical transients.
Field Installation Guidelines
The module is intended for mounting onto a DIN-rail supported I/O carrier. The module must be seated firmly until a physical click is confirmed.
Field wiring is connected via the integrated snap-in terminal blocks. Standard industrial torque specifications should be applied to prevent contact resistance.
AC input leads must be routed away from low-voltage communication cables to mitigate electromagnetic interference.
Status LEDs should be verified for correct illumination cycles upon the application of field power. If an LED fails to trigger during a signal state change, the input wiring and voltage levels must be measured against the technical specifications.

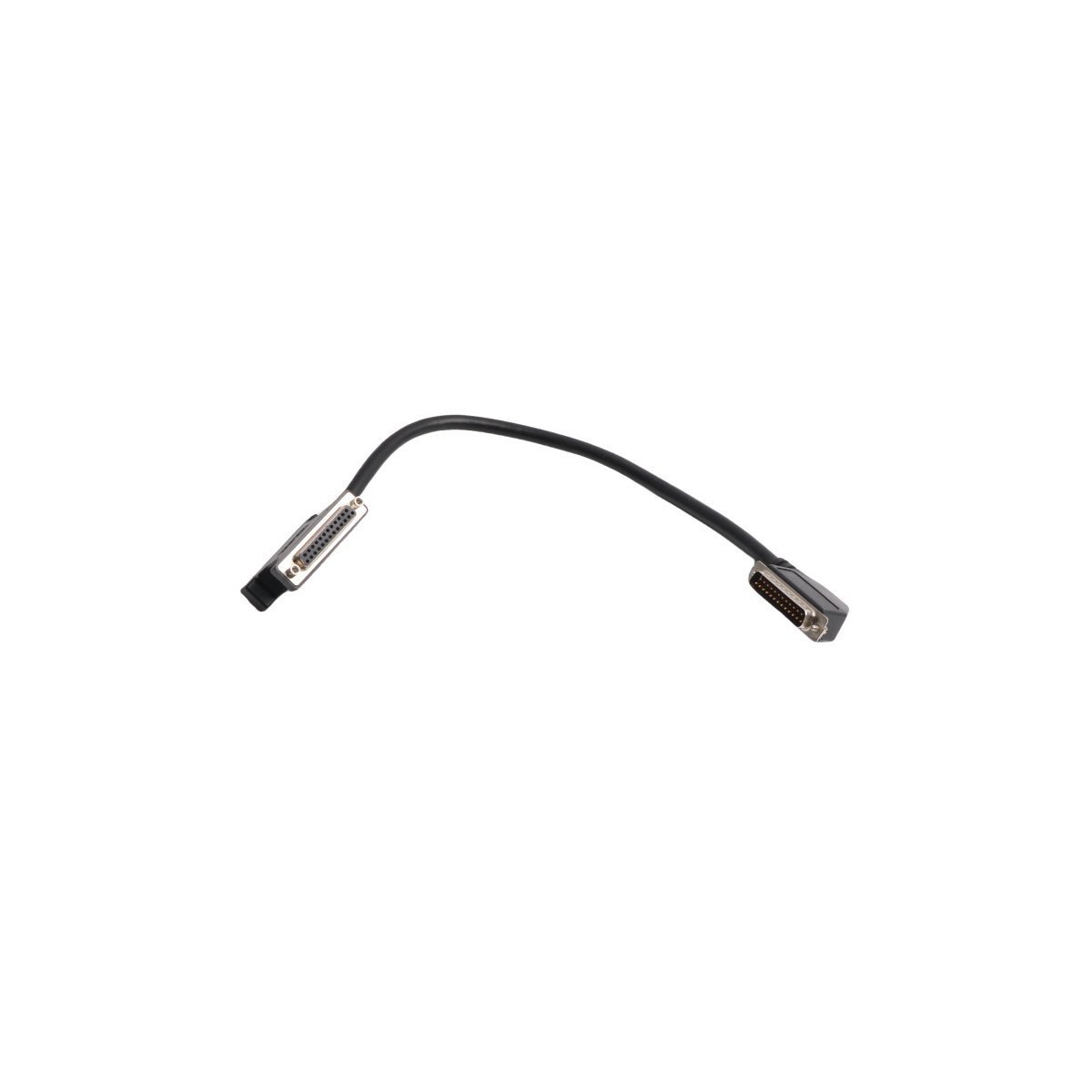

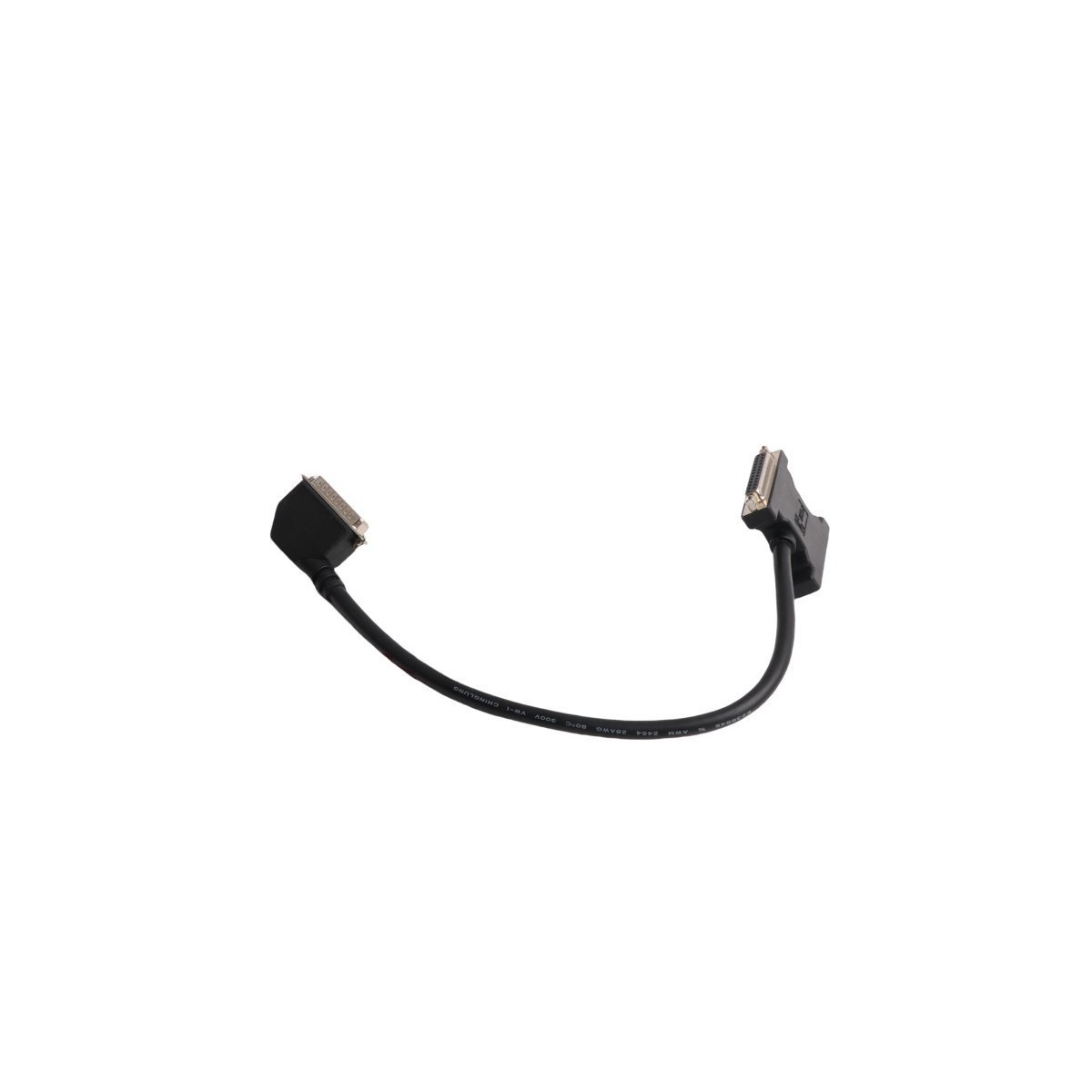

The GE IC693CBL305, also cataloged as the IC693CBL305 Wye connection cable, operates as a dedicated hardware component for serial port signal splitting within Series 90-30 PLC networks. The cable provides direct physical execution of port separation, routing dual channel data paths from a high-density host connector into two distinct 25-pin interfaces. By isolating Port 1 and Port 2 signals at the physical layer, the component facilitates structured cable management and electrical signal routing for communication coprocessor modules.
Hardware Specifications
Parameter
Specification
Model
IC693CBL305
Brand
GE
Origin
USA
Weight
0.14 kg
Dimensions
45.0 cm x 6.2 cm x 1.6 cm
Operating Temp
Standard Industrial Range
Power Consumption
Passive (No active components)
Cable Length
30.5 cm (1 foot)
Interface Type
RS-232 / RS-485
PLC and Control Network Integration
Backplane bus communication velocity and deterministic synchronization for the Series 90-30 system are facilitated through the effective routing of serial data. Firmware flash compatibility within the host modules is supported, ensuring that the physical signal path provided by the IC693CBL305 maintains high integrity across logic execution cycles. Furthermore, I/O density scaling and port configuration are optimized via this hardware split, enabling the PLC to process communication packets without signal cross-talk. When utilized in complex automation architectures, the cable acts as a protocol bridge, ensuring that RS-232 and RS-485 signals are routed to their appropriate logical destinations on the coprocessor.
Frequently Asked Questions
Q: Does the IC693CBL305 cable support active signal buffering or protocol conversion?A: No. The IC693CBL305 is a passive wiring accessory designed specifically for physical port splitting. It does not contain active electronic components for signal amplification or protocol translation.Q: Can the cable be used to connect different electrical standards on Port 1 and Port 2 simultaneously?A: The cable is configured to route signals from the combined host connector to the designated 25-pin outputs. While Port 1 supports RS-232 and Port 2 supports RS-232 or RS-485, the limitation is defined by the host coprocessor module's internal configuration, not the cable itself.
Field Installation Guidelines
Inspect the connectors for bent pins before insertion into the CMM or PCM module ports.
The right-angle connector must be fully seated into the host module port to ensure consistent electrical contact.
Ensure the dual 25-pin connectors are properly identified and labeled as Port 1 and Port 2 during installation to avoid configuration errors.
Secure the cable using standard cable ties to prevent mechanical strain on the host module ports, as excessive tension can lead to intermittent signal loss in industrial environments.
The GE Fanuc Emerson IC695PNC001 is a PACSystems RX3i PROFINET Controller featuring dual RJ-45 and SFP ports. It manages up to 64 I/O devices with update rates as fast as 1 ms, providing high-speed, scalable network communication for modern industrial automation systems.
The GE Fanuc IC693CPU351 is a high-performance 25 MHz CPU for Series 90-30 PLCs.It features 240KB user memory, three serial ports, and supports up to 2048 I/O points, providing robust control for complex industrial automation and DCS applications.
The GE Fanuc IC200UDD104 is a compact VersaMax Micro PLC featuring 8 DC inputs and 6 DC transistor outputs.Equipped with high-speed counters, PWM capabilities, and dual analog potentiometers, this 24V DC controller offers a versatile solution for small-scale industrial automation and motion control.
The GE Fanuc IC200ALG264 is a VersaMax analog input module featuring 15 high-resolution channels for 4-20 mA and 0-20 mA signals. It delivers 15-bit precision, a fast 7.5ms update rate, and integrated open-wire diagnostics for reliable industrial automation and process control.
The GE Fanuc IC200ALG240 provides eight isolated analog input channels with 16-bit resolution for the VersaMax series. It supports both voltage and current signals while offering 1500 VAC isolation and advanced diagnostics to ensure maximum signal integrity in complex industrial environments.
The GE Fanuc IC200ALG322 is a 4-channel analog voltage output module for the VersaMax PLC series. It provides ±10.24V outputs with 12-bit resolution, built-in field power diagnostics, and a compact design for precise industrial control applications.
The GE Fanuc IC693ALG222 is a 16-channel analog voltage input module for Series 90-30 PLCs. It supports 0–10V and ±10V ranges with 12-bit resolution, offering high-speed 3ms/6ms updates for precise industrial automation and data acquisition.
The GE Fanuc IC693BEM321 is a Series 90-30 I/O Link Master Module designed to control up to 16 slave devices. It supports 1024 I/O points and utilizes RS-422/RS-485 protocols for high-speed, reliable remote communication in complex automation environments.
The GE Fanuc IC693MDL930 is an 8-point isolated relay output module for Series 90-30 and RX3i PLCs. It provides eight independent N.O. contacts rated at 4A each, supporting both AC and DC field voltages. This module is engineered for high-current switching of motor starters and solenoids with superior channel-to-channel isolation.
