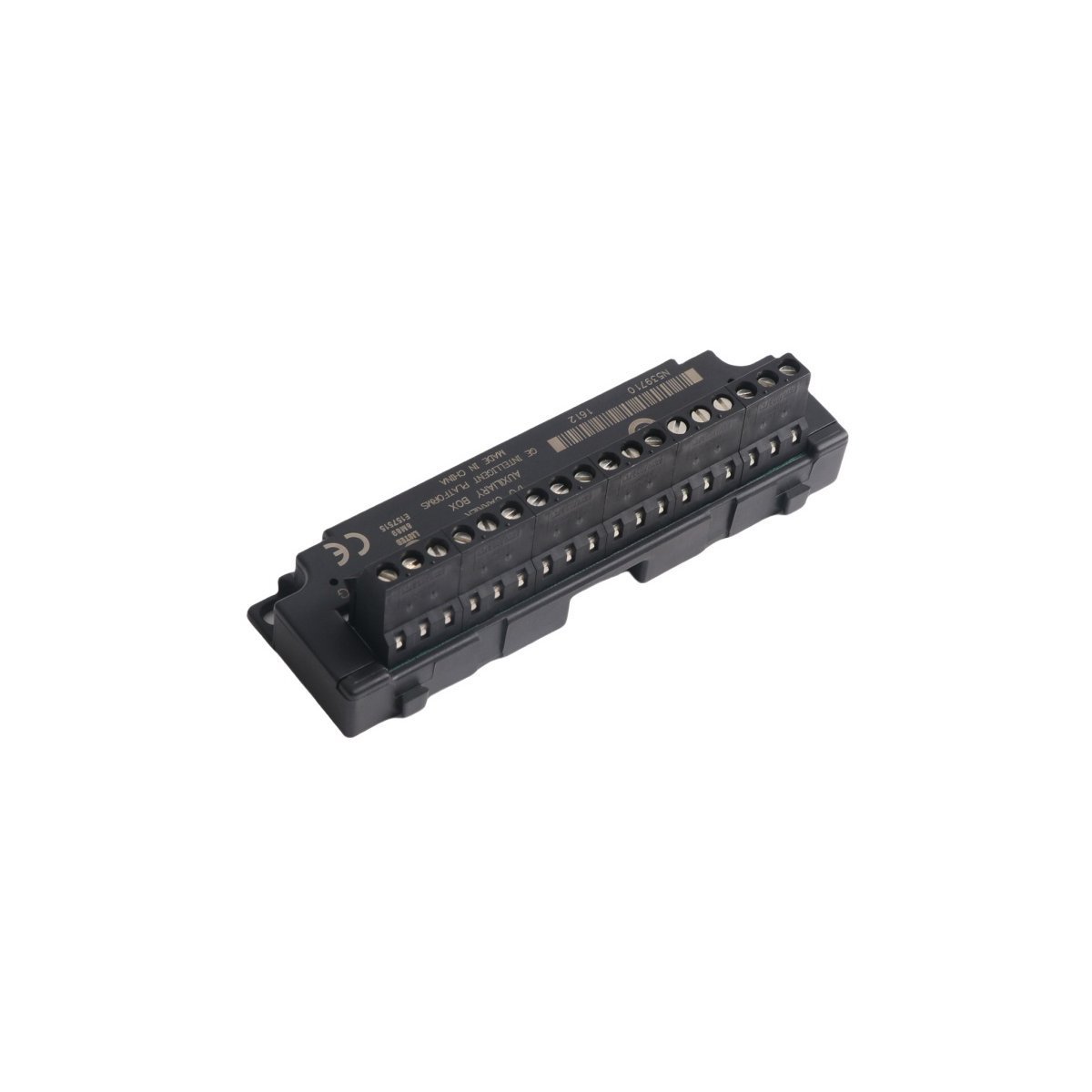

The GE IC200TBM002, also cataloged as the IC200TBM002 I/O terminal block, operates as a dedicated hardware component for signal distribution and wiring termination within VersaMax PLC systems. Configured for high-density I/O routing, the block provides direct physical execution of signal bussing through 18 integrated IEC-compliant box-style terminals. This module facilitates electrical interfacing for input/output carriers and interposing terminals, ensuring standardized connectivity for industrial field wiring.
Hardware Specifications
Parameter
Specification
Model
IC200TBM002
Brand
GE
Origin
USA
Weight
0.06 kg
Dimensions
11.0 cm x 3.5 cm x 3.0 cm
Operating Temp
Standard Industrial Range
Power Consumption
Passive (No active components)
Voltage Rating
264 VAC (Up to 300 VAC tolerance)
Current Rating
8 A
PLC and Control Network Integration
The VersaMax series utilizes modular backplane bus communication velocity and deterministic synchronization to manage distributed I/O blocks. Moreover, firmware flash compatibility within the host CPU allows for systematic updates across the network, thereby ensuring that hardware configurations remain consistent with logic execution cycles. In addition, I/O density scaling is supported through the flexible mounting interface, which enables the system to expand without exceeding the timing constraints of the host bus. Finally, Profinet and EtherNet/IP deterministic network integration requirements are managed upstream via communication modules, while the IC200TBM002 serves as the physical termination point for local field signals.
Frequently Asked Questions
Q: Does the IC200TBM002 provide electrical isolation between terminals?
A: The IC200TBM002 features 18 internally-bussed terminals. It is electrically isolated from the I/O carrier interface; however, within the block itself, the terminals are bussed together to provide a common electrical potential.
Q: What is the maximum wire gauge supported by the terminal block?
A: The terminal block accommodates solid or stranded wires ranging from AWG #22 to AWG #14. It also supports the connection of two wires per terminal, provided the combined gauge does not exceed AWG #18.
Field Installation Guidelines
The module should be installed using the integrated mounting tabs on the top edge or secured via panel-mounting holes to ensure mechanical stability in high-vibration environments.
Ensure all field wiring is stripped to the appropriate length according to IEC standards before insertion into the box-style terminals to prevent short circuits.
When utilizing the terminal block for power distribution, ensure that the cumulative current across the 18-point bus does not exceed the 8 Amp rating.
Verify proper seating within the insert-slots of the I/O carrier to ensure the mechanical and electrical integrity of the VersaMax I/O assembly.
The GE IC200MDL241, also cataloged as the IC200MDL241 AC Input Module, operates as a dedicated hardware component for discrete signal acquisition within VersaMax I/O and control networks. Logic states from field-connected devices are processed through sixteen channels, and the resulting data is transmitted via the backplane to the host CPU. Input transitions are continuously monitored by integrated LED indicators, while electrical isolation is maintained across input groups to ensure signal integrity during operation.
Hardware Specifications
Parameter
Specification
Model
IC200MDL241
Brand
GE
Origin
USA
Weight
0.1 kg
Dimensions
11.0 cm x 5.8 cm x 6.5 cm
Operating Temp
Standard Industrial Range
Power Consumption
110.0 mA at 5.0 VDC (Backplane)
Nominal Voltage
240 VAC
Input Range
0 to 264 VAC
ON-state Voltage
155 VAC to 264 VAC
OFF-state Voltage
0 VAC to 40 VAC
PLC and Control Network Integration
System communication velocity and deterministic performance are regulated by the VersaMax backplane architecture. Backplane bus communication velocity is optimized to ensure low-latency data throughput for high-density I/O configurations. Furthermore, firmware flash compatibility is supported, allowing for field updates when the module is integrated into existing VersaMax PLC frameworks. To maintain operational stability, I/O density scaling is managed through the modular backplane, which facilitates the addition of supplemental discrete or analog modules without interrupting the host processor scan cycle.
Frequently Asked Questions
Q: Is the module capable of being hot-swapped while the backplane is energized?A: Yes, the module is designed to support hot-swapping. However, care must be taken to ensure that field wiring is disconnected or secured to prevent accidental shorting of the AC input terminals during extraction.Q: How is the group isolation managed across the sixteen channels?A: The sixteen inputs are organized into two groups of eight. While there is no point-to-point isolation, 1500 VAC of group isolation is provided for a duration of one minute to protect against common-mode electrical transients.
Field Installation Guidelines
The module is intended for mounting onto a DIN-rail supported I/O carrier. The module must be seated firmly until a physical click is confirmed.
Field wiring is connected via the integrated snap-in terminal blocks. Standard industrial torque specifications should be applied to prevent contact resistance.
AC input leads must be routed away from low-voltage communication cables to mitigate electromagnetic interference.
Status LEDs should be verified for correct illumination cycles upon the application of field power. If an LED fails to trigger during a signal state change, the input wiring and voltage levels must be measured against the technical specifications.
The GE IC693CBL305, also cataloged as the IC693CBL305 Wye connection cable, operates as a dedicated hardware component for serial port signal splitting within Series 90-30 PLC networks. The cable provides direct physical execution of port separation, routing dual channel data paths from a high-density host connector into two distinct 25-pin interfaces. By isolating Port 1 and Port 2 signals at the physical layer, the component facilitates structured cable management and electrical signal routing for communication coprocessor modules.
Hardware Specifications
Parameter
Specification
Model
IC693CBL305
Brand
GE
Origin
USA
Weight
0.14 kg
Dimensions
45.0 cm x 6.2 cm x 1.6 cm
Operating Temp
Standard Industrial Range
Power Consumption
Passive (No active components)
Cable Length
30.5 cm (1 foot)
Interface Type
RS-232 / RS-485
PLC and Control Network Integration
Backplane bus communication velocity and deterministic synchronization for the Series 90-30 system are facilitated through the effective routing of serial data. Firmware flash compatibility within the host modules is supported, ensuring that the physical signal path provided by the IC693CBL305 maintains high integrity across logic execution cycles. Furthermore, I/O density scaling and port configuration are optimized via this hardware split, enabling the PLC to process communication packets without signal cross-talk. When utilized in complex automation architectures, the cable acts as a protocol bridge, ensuring that RS-232 and RS-485 signals are routed to their appropriate logical destinations on the coprocessor.
Frequently Asked Questions
Q: Does the IC693CBL305 cable support active signal buffering or protocol conversion?A: No. The IC693CBL305 is a passive wiring accessory designed specifically for physical port splitting. It does not contain active electronic components for signal amplification or protocol translation.Q: Can the cable be used to connect different electrical standards on Port 1 and Port 2 simultaneously?A: The cable is configured to route signals from the combined host connector to the designated 25-pin outputs. While Port 1 supports RS-232 and Port 2 supports RS-232 or RS-485, the limitation is defined by the host coprocessor module's internal configuration, not the cable itself.
Field Installation Guidelines
Inspect the connectors for bent pins before insertion into the CMM or PCM module ports.
The right-angle connector must be fully seated into the host module port to ensure consistent electrical contact.
Ensure the dual 25-pin connectors are properly identified and labeled as Port 1 and Port 2 during installation to avoid configuration errors.
Secure the cable using standard cable ties to prevent mechanical strain on the host module ports, as excessive tension can lead to intermittent signal loss in industrial environments.

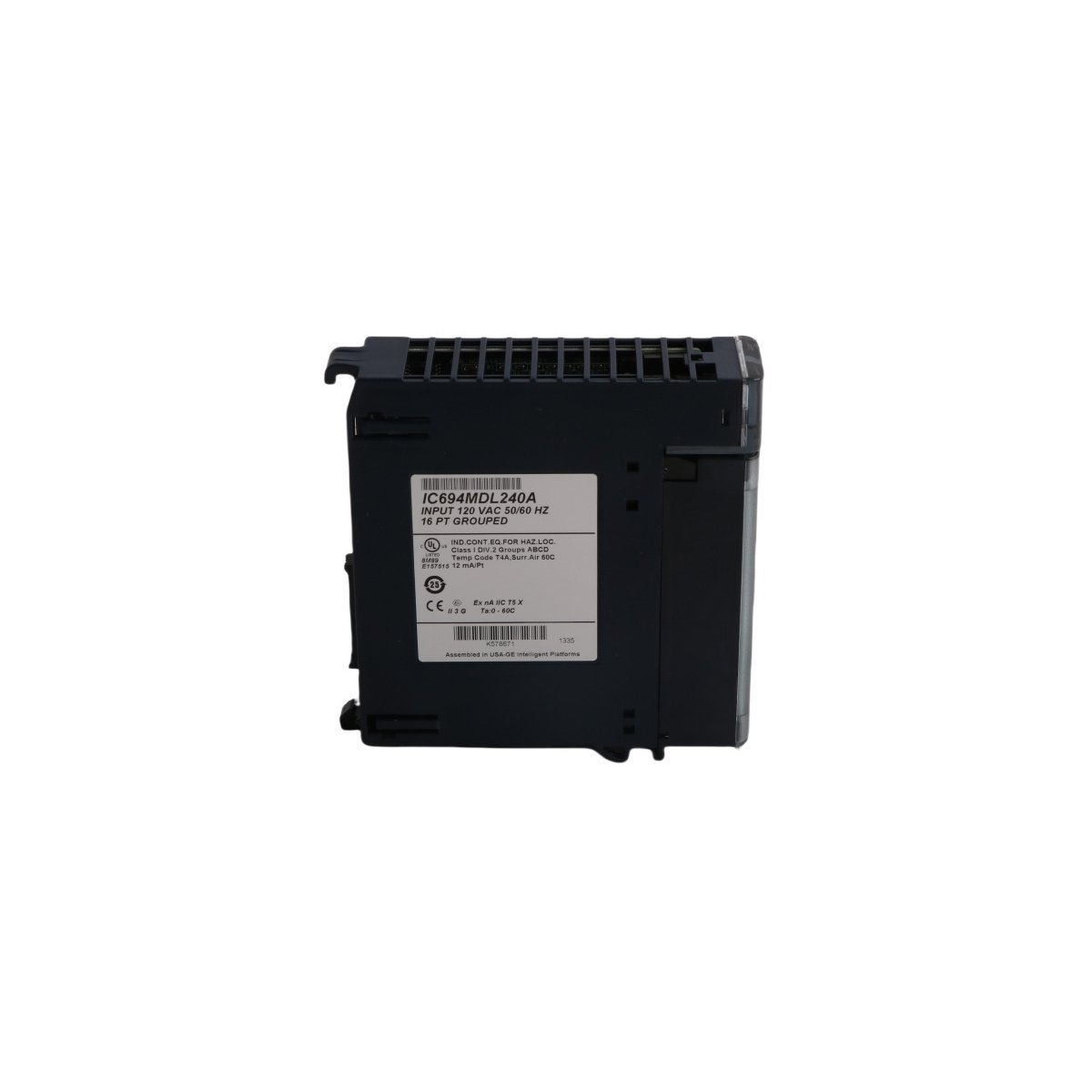

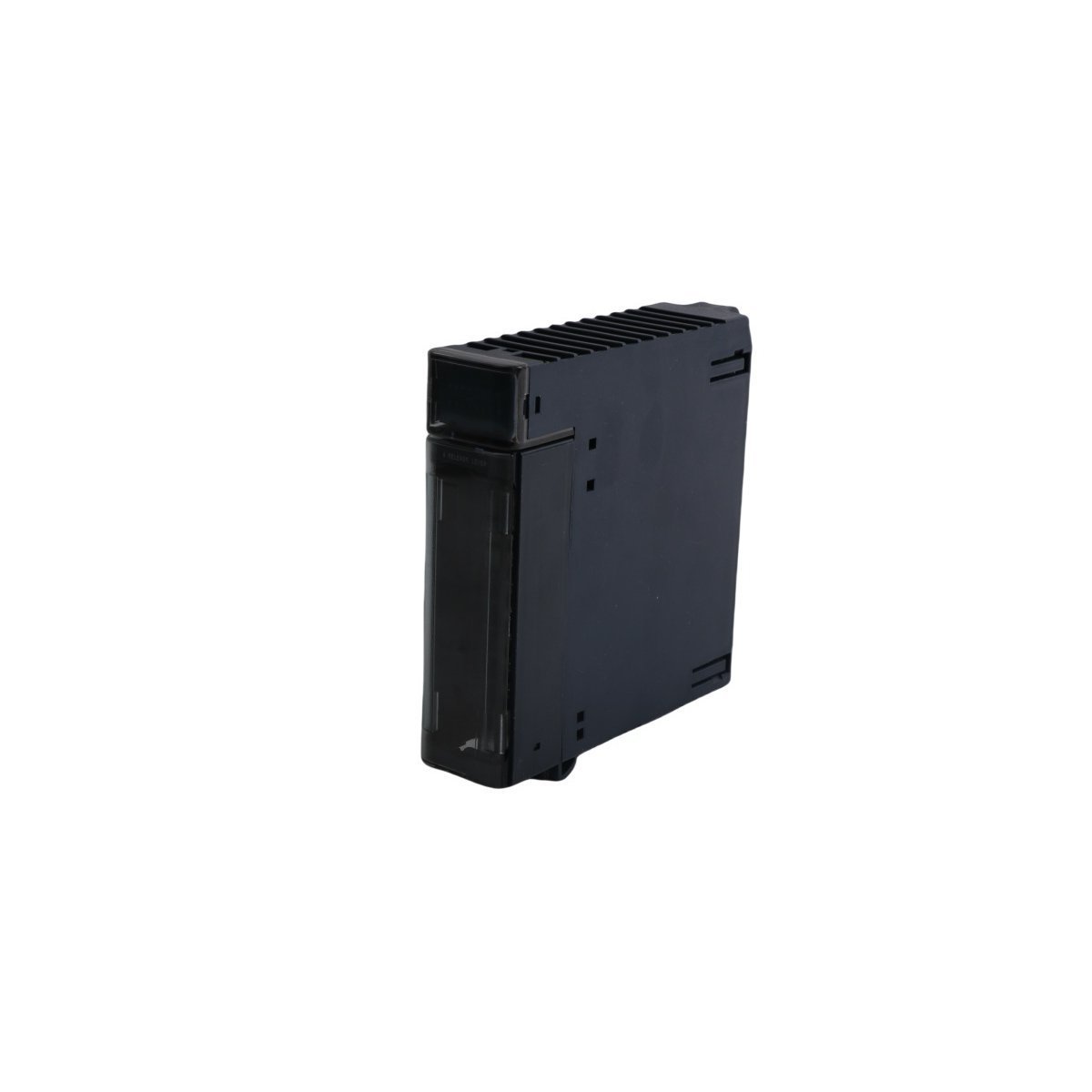

Configured for discrete AC signal acquisition in the PACSystems RX3i backplane architecture, the GE IC694MDL240 (IC694MDL240 Volt AC Input Module) provides direct electrical input monitoring of field-operated switching devices and AC-powered sensing circuits. The module supports 16 input channels for 120 VAC systems, accepts 85-132 VAC input signals at 50/60 Hz, and interfaces with the RX3i controller through a single-slot backplane connection.
Suffix Breakdown & Model Matrix
The available documentation identifies a single catalog number, IC694MDL240, without any documented suffix variants or ordering-code subdivisions. No suffix matrix is specified by the manufacturer data provided.
Hardware Specifications
Parameter
Specification
Model
IC694MDL240
Brand
GE
Product Series
PACSystems RX3i
Module Type
Volt AC Input Module
Input Channels
16 discrete inputs
Input Voltage Range
85-132 VAC
Nominal Input Voltage
120 VAC
Input Frequency
50/60 Hz
ON-State Voltage
74-132 VAC
OFF-State Voltage
0-20 VAC
ON Response Time
30 ms
OFF Response Time
45 ms
Backplane Current Consumption
90 mA
Isolation Rating
250 VAC continuous, 1500 VAC for 1 minute
Status Indication
Individual channel LEDs
Mounting
Single-slot RX3i backplane installation
Origin
USA
Weight
0.28 kg
Dimensions
3.5 x 13.2 x 13.5 cm
Operating Temp
Not specified in provided documentation
Power Consumption
Not specified in provided documentation
Compliance
UL 508
Environmental Classification
Class 1, Division 2 compatible applications
Backplane Communication and I/O Density Scaling
The IC694MDL240 occupies a single slot within the PACSystems RX3i I/O rack while providing 16 discrete AC input channels. This channel density enables consolidation of field contact signals including pushbuttons, limit switches, auxiliary contacts, and proximity switches. Data transfer between the module and the controller occurs through the RX3i backplane interface, eliminating separate communication wiring for individual input channels.The module draws 90 mA from the backplane supply and can be installed in any compatible RX3i slot supported by available system I/O capacity. Channel status is reported through dedicated front-panel LEDs, allowing local verification of field signal presence during commissioning and troubleshooting.
Frequently Asked Questions
Q: Does the IC694MDL240 support hot insertion or hot removal?
A: The supplied documentation does not specify hot-swap capability. Module insertion and removal should follow the RX3i system maintenance procedures and applicable controller power-state requirements.Q: What field devices can be connected to the input channels?
A: The module is intended for AC discrete input signals generated by devices such as push-button switches, limit switches, relay contacts, and AC-powered proximity sensors operating within the specified voltage range.Q: What isolation protection is provided between field wiring and module electronics?
A: The module provides optical isolation rated at 250 VAC continuous voltage and 1500 VAC for a 1-minute test interval.
Field Installation Guidelines
Verify that the field signal voltage remains within the specified 85-132 VAC operating range before energizing the module.
Separate AC input wiring from high-current motor and drive conductors to reduce induced electrical noise.
Terminate cable shields according to the facility grounding standard and avoid multiple shield ground points unless required by the site design specification.
Confirm correct channel addressing and field terminal assignments before controller startup.
Inspect LED channel indicators during commissioning to verify correspondence between field device operation and controller input status.
Follow lockout and electrical safety procedures before connecting or disconnecting field wiring.
The GE Fanuc IC693MDL645 is a 16-point, 24 VDC discrete input module for Series 90-30 PLCs. Operating with sink or source logic, it features a fast 1 ms response time, status LEDs, and a removable 20-terminal wiring block.
The General Electric A06B-6290-H106 is a FANUC αi series servo amplifier module designed for precision CNC motion control. It features micron-level accuracy, regenerative power management, and advanced diagnostics for high-speed machining and automation.
The GE IC695PSA040 is a 40-watt universal power supply for the PACSystems RX3i platform.It supports wide-range 85-264 VAC or 100-300 VDC inputs. This module provides stable +3.3V, +5.1V, and +24V DC outputs to power CPUs and I/O. Featuring built-in LED diagnostics and a protected power switch, it ensures reliable operation for dedicated industrial automation and DCS control systems.
The GE Fanuc IC200UDD104 is a compact VersaMax Micro PLC featuring 8 DC inputs and 6 DC transistor outputs.Equipped with high-speed counters, PWM capabilities, and dual analog potentiometers, this 24V DC controller offers a versatile solution for small-scale industrial automation and motion control.
The GE Fanuc IC200ALG264 is a VersaMax analog input module featuring 15 high-resolution channels for 4-20 mA and 0-20 mA signals. It delivers 15-bit precision, a fast 7.5ms update rate, and integrated open-wire diagnostics for reliable industrial automation and process control.
The GE Fanuc IC200ALG240 provides eight isolated analog input channels with 16-bit resolution for the VersaMax series. It supports both voltage and current signals while offering 1500 VAC isolation and advanced diagnostics to ensure maximum signal integrity in complex industrial environments.
The GE Fanuc IC200MDL650 is a high-density 24VDC discrete input module for the VersaMax PLC series. It features 32 inputs organized into four groups, supporting both sink and source logic with configurable filter times for precise signal processing in industrial environments.
The GE Fanuc IC693BEM321 is a Series 90-30 I/O Link Master Module designed to control up to 16 slave devices. It supports 1024 I/O points and utilizes RS-422/RS-485 protocols for high-speed, reliable remote communication in complex automation environments.
The GE Fanuc IC693MDL930 is an 8-point isolated relay output module for Series 90-30 and RX3i PLCs. It provides eight independent N.O. contacts rated at 4A each, supporting both AC and DC field voltages. This module is engineered for high-current switching of motor starters and solenoids with superior channel-to-channel isolation.
