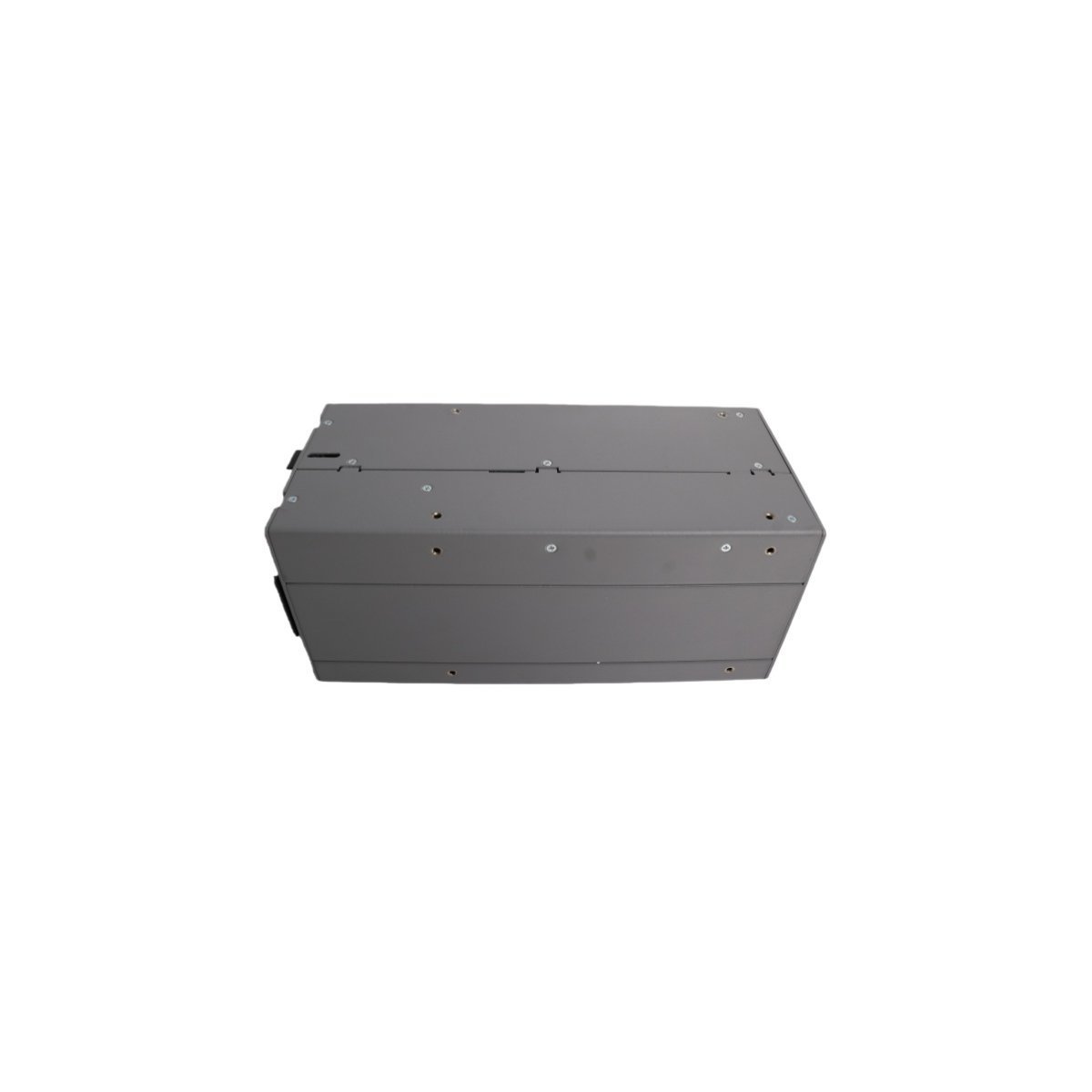

Allen Bradley PM3326B-6-1-2-E 80026-529-01 Power Supply

The Allen Bradley PM3326B-6-1-2-E provides dependable DC power for heavy-duty automation environments. This high-capacity power supply converts AC input into a stabilized 24V DC output. Consequently, it supports critical controllers and field instruments in large-scale systems. The unit features a robust mechanical design to withstand harsh industrial conditions. Furthermore, it utilizes high-grade internal components to ensure long-term electrical stability.

Technical Performance and Output Specifications

This power supply module delivers consistent energy even during significant input voltage fluctuations. It maintains a steady output to protect sensitive electronic circuits.

• Input Voltage Range: 100–240V AC (Auto-ranging)
• Input Frequency: 50/60 Hz
• Nominal Output Voltage: 24V DC
• Current Rating: 6 to 8 Amps continuous
• Typical Power Capacity: 144 to 192 Watts
• Peak Current Capacity: Up to 17 Amps for short durations

Physical Dimensions and Installation

The compact footprint of the 80026-529-01 model facilitates easy mounting in congested control cabinets. Its sturdy housing provides excellent resistance against physical impact and vibration. Additionally, the clear terminal markings simplify the installation process for electrical technicians. This module integrates perfectly into motor control centers and distributed I/O racks.

• Dimensions: 12.5 x 25 x 27.5 cm
• Unit Weight: 5.9 kg (Shipping weight approx. 6.5 kg)
• Enclosure Rating: IP20 standard industrial protection
• Country of Origin: USA

Industrial Compliance and Efficiency

The PM3326B-6-1-2-E meets stringent international standards for power conversion equipment. High efficiency ratings minimize energy loss as waste heat. Therefore, users can install multiple units in a single enclosure without excessive temperature rise. This power supply remains a trusted solution for manufacturing plants and process industries worldwide. It ensures production continuity by providing clean, uninterrupted power to essential automation assets.
