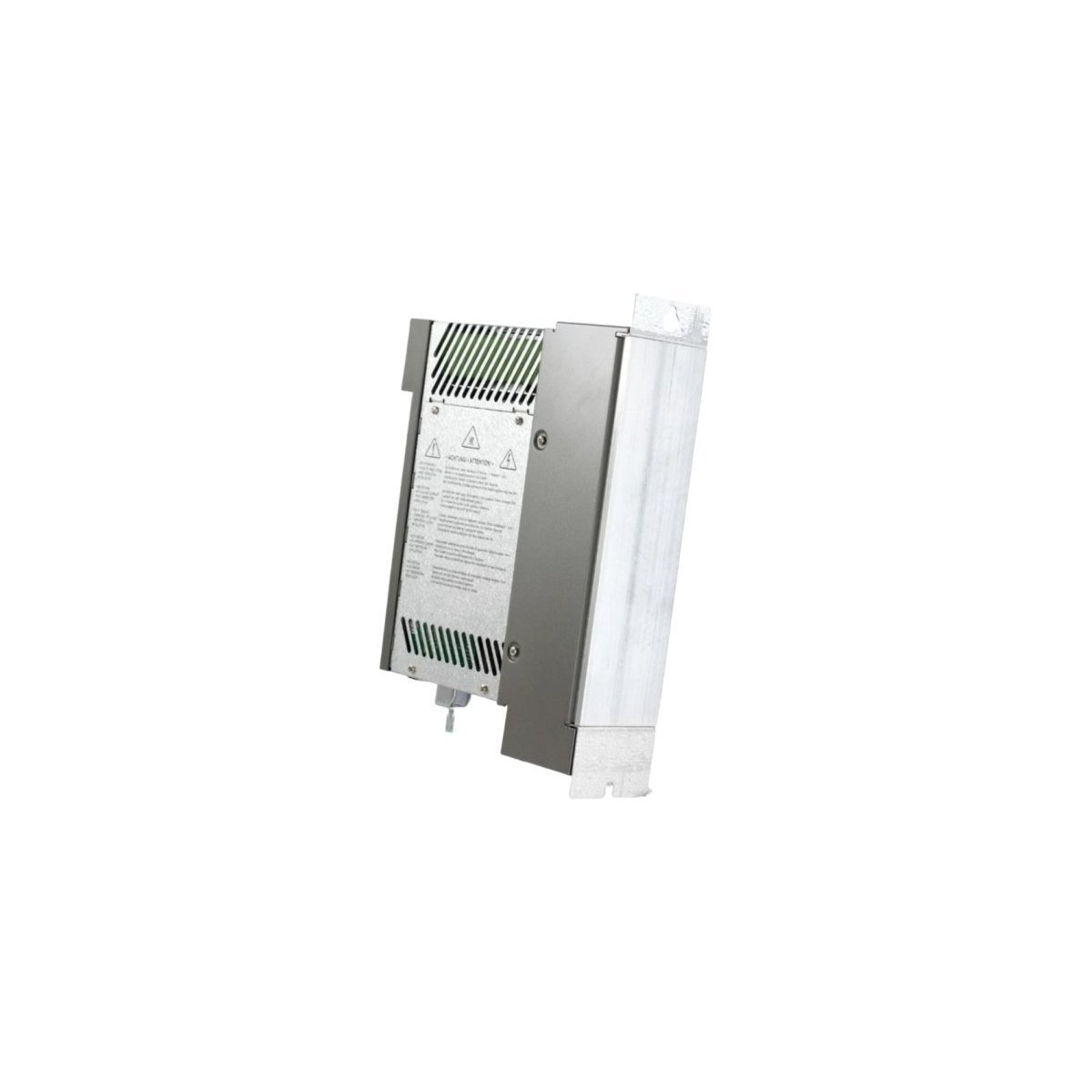

Schneider Electric VPM01D16AA00 (PS-4/10/16/230/00) Power Supply

Product Overview

The Schneider Electric VPM01D16AA00, also recognized by the part number PS-4/10/16/230/00, operates as a high-capacity industrial power supply module. Schneider Electric specifically engineered this unit for the PacDrive and Lexium motion control ecosystems. Consequently, the module efficiently converts high-voltage AC input into stabilized DC power to drive servo systems, ISH motors, and PLC components. While the manufacturer has transitioned this into a legacy product, it continues to serve as a critical link for maintaining high-speed packaging and manufacturing lines that depend on Schneider’s specialized motion technology.

Functional Capabilities

• Optimizes Motion Performance: This unit delivers the high-peak current that PacDrive ISH motors and servo drives demand. As a result, it enables the rapid acceleration and deceleration cycles required for modern high-throughput applications.
• Stabilizes Voltage Output: The power supply utilizes advanced regulation circuitry to intercept input voltage fluctuations and transient electrical noise. By doing so, it ensures that sensitive downstream controllers receive consistent and clean power.
• Enhances Thermal Management: A robust metallic chassis doubles as a high-efficiency heat sink. This design choice allows the module to maintain stable performance within the hot, cramped environments typical of industrial control cabinets.
• Ensures System Continuity: The module provides seamless electrical compatibility with legacy Schneider Electric automation racks. Therefore, maintenance teams can install it as a direct replacement for failed units, effectively avoiding the need for expensive, system-wide hardware upgrades.
• Protects Critical Hardware: Integrated safety mechanisms actively monitor for overvoltage, overcurrent, and short-circuit conditions. These features prevent electrical faults from traveling up the line and damaging the primary PLC or servo controllers.

Technical Specifications

• Manufacturer: Schneider Electric
• Model Number: VPM01D16AA00
• Alternative Part Number: PS-4/10/16/230/00
• Module Type: Industrial Power Supply
• Input Voltage: 230V AC (Standard)
• Output Voltage: 24V DC (Regulated)
• System Application: PacDrive / Lexium / PLC Systems
• Weight: 1.9 kg
• Dimensions: 27.9 x 21.6 x 6.3 cm

Primary Applications

Reliability engineers frequently deploy the VPM01D16AA00 across various high-demand sectors. For instance:

• Food and Beverage Packaging: It provides the specialized power profiles necessary for multi-axis PacDrive systems used in bottling, filling, and labeling operations.
• Material Handling: The module supports the electronic control of high-torque ISH motors, which power complex conveyor and automated sorting systems.
• Pharmaceutical Manufacturing: It maintains steady power for high-precision motion tasks. In this context, the module prevents voltage dips that could otherwise lead to timing errors or batch contamination.
• Legacy Lifecycle Management: It serves as an essential spare part for facilities that continue to operate older Schneider Electric hardware requiring a reliable 230V to DC conversion.
