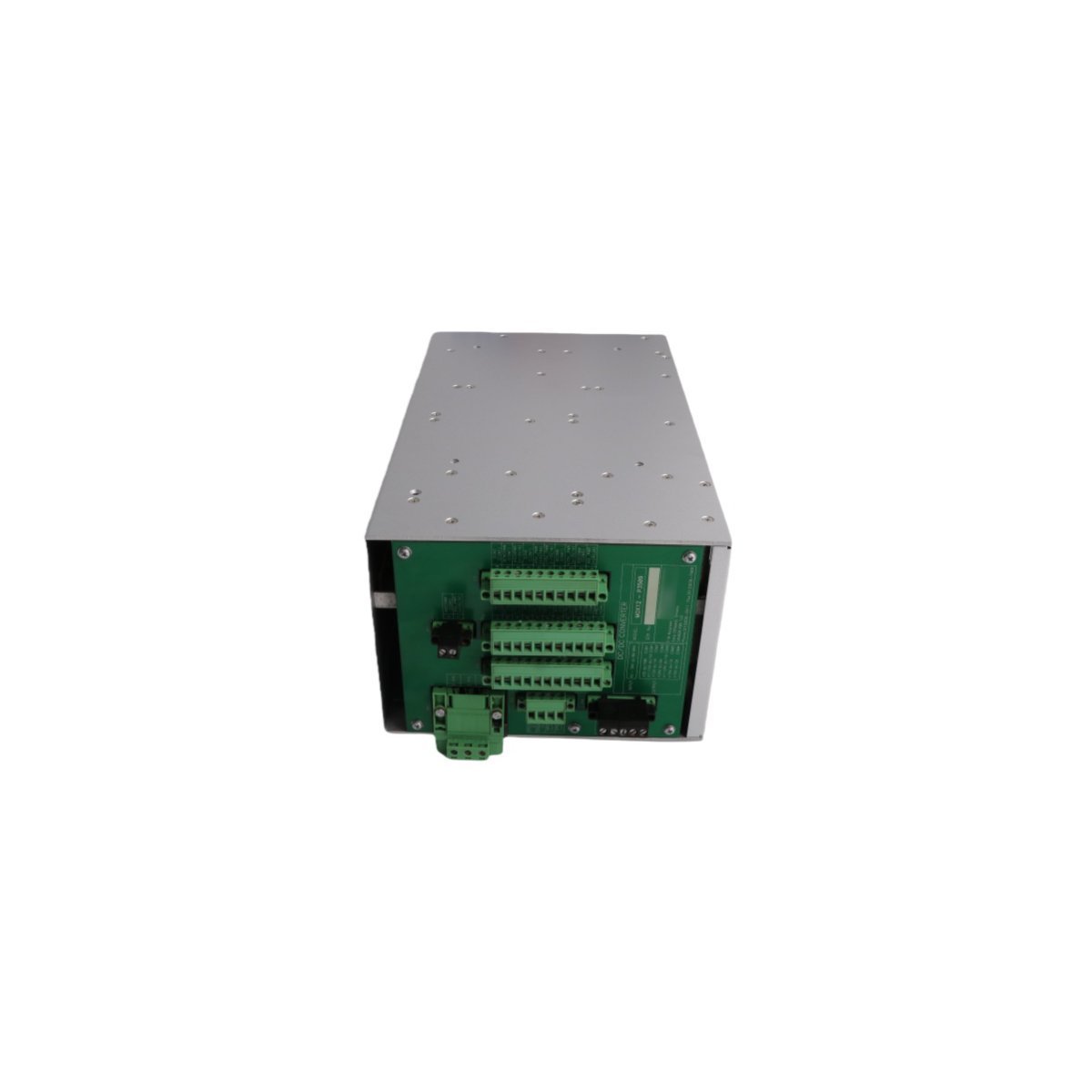

Allen Bradley MOX12-P3509B 80026-173-23 Power Supply

The Allen Bradley MOX12-P3509B (80026-173-23) provides specialized switching power for complex industrial automation systems. This robust power module delivers multiple DC output voltages to support various control components simultaneously. Specifically, the unit generates stable power for processors, I/O modules, and sensitive communication interfaces. The durable metal enclosure protects internal electronics from mechanical stress and electrical noise. Furthermore, this design ensures superior electromagnetic compatibility in dense control cabinet environments.

Multi-Rail Output and Energy Efficiency

This advanced switching power supply manages multiple voltage rails with high precision. It converts standard AC input into several DC outputs to meet diverse hardware requirements.

• Primary Input: 100–240V AC (Auto-ranging)
• DC Output Rails: +5V, ±12V, ±15V, and ±24V
• Conversion Efficiency: Greater than 90%
• Current Rating: Supports up to 8 Amps for critical loads
• Cooling: Passive heat dissipation with advanced thermal pathways

Environmental Resilience and Thermal Design

The MOX12-P3509B operates reliably across extreme temperature variations found in industrial settings. Its engineering permits a wide operational range from -25°C to +70°C. Consequently, the module maintains peak performance in both refrigerated and high-heat environments. High-grade components within the unit resist aging from thermal cycling and continuous vibration. This resilience makes the 80026-173-23 ideal for heavy manufacturing and remote infrastructure.

Mechanical Specifications and Installation

The compact form factor allows for efficient use of space within standard industrial enclosures. Its physical build emphasizes long-term durability and minimal maintenance needs.

• Dimensions: 12.5 x 25 x 27.5 cm
• Weight: 5.9 kg
• Enclosure Material: High-strength industrial metal
• Origin: Manufactured in the USA
