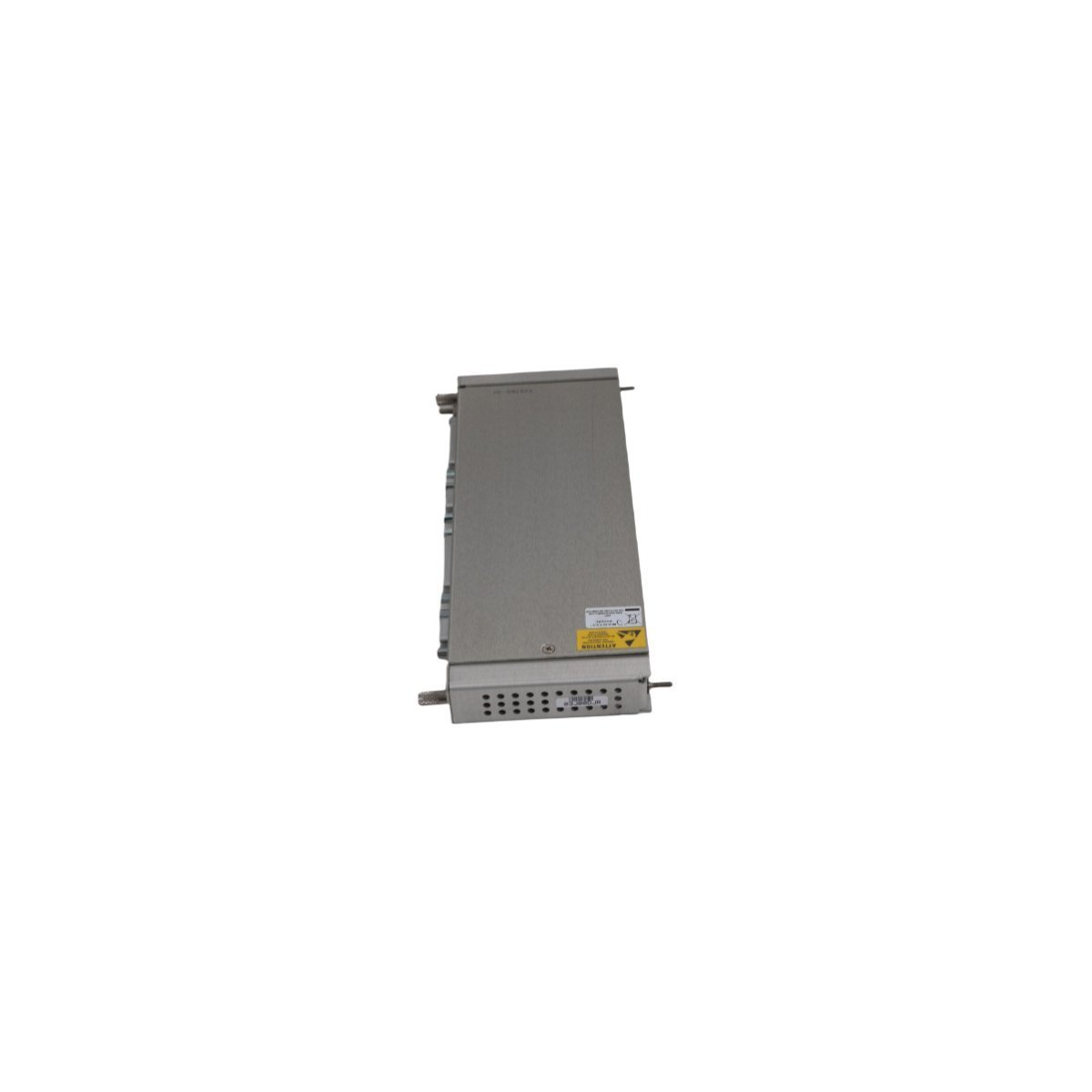

Bently Nevada 125760-01 Data Manager I/O Module

Technical Overview

The Bently Nevada 125760-01 acts as a specialized Data Manager I/O module for the 3500/20 Rack Interface Module (RIM) series. This module serves as a primary bridge for data management, facilitating the transfer of critical machinery information between the 3500 rack and external host systems. Because it coordinates the digital backplane, the 125760-01 ensures that configuration data and diagnostic alerts flow seamlessly throughout the monitoring network. Consequently, it plays a vital role in maintaining the synchronized health-monitoring capabilities required for complex industrial assets.

Operational Functionality

This I/O module integrates directly into the rear slot of the 3500 rack to provide physical connectivity for communication processors. It primarily supports proprietary protocols that allow the 3500 host software to configure rack parameters and retrieve both static and dynamic machinery data. Furthermore, the 125760-01 enables the “daisy-chaining” of multiple 3500 racks, allowing operators to manage centralized monitoring architectures across large-scale facilities. By aggregating alarm and diagnostic tags, the module simplifies the interface between raw sensor data and high-level decision-making software.

Key Technical Characteristics

• Communication Support: Facilitates connection to external processors such as TDXnet, TDIX, and DDIX.
• Port Configuration: Features specialized ports that permit static and dynamic data collection via fixed baud rate protocols.
• Rack Compatibility: Operates specifically with the 3500/20 Rack Interface Module; it must be installed in Slot 1 (adjacent to the power supplies).
• Signal Routing: Manages the distribution of configuration storage and coordinates communication for all digital backplane modules.
• Reliability: Monitors module responsiveness and asserts system-fault outputs to alert operators during hardware failures.
• Diagnostic Access: Includes buffered outputs and serial console ports for local command-line interface (CLI) access and troubleshooting.

Primary Industrial Applications

• Oil and Gas Facilities: Centralizing data from high-speed compressors and turbines for condition-based maintenance.
• Power Generation: Linking multiple vibration monitoring racks into a unified host system for generator health oversight.
• Chemical Processing: Providing the backbone for safety-instrumented systems (SIS) by routing fault signals to emergency shutdown logic.
• OEM Machinery Packages: Acting as an intelligent data interface for embedded monitoring solutions on proprietary equipment skids.

Technical Specifications

• Manufacturer: Bently Nevada
• Model Number: 125760-01
• Series: 3500 Series Monitoring System
• Module Type: Data Manager I/O
• Input Voltage: 24 VDC (Typical via rack backplane)
• Operating Temperature: -30°C to +65°C
• Weight: Approx. 0.45 kg
